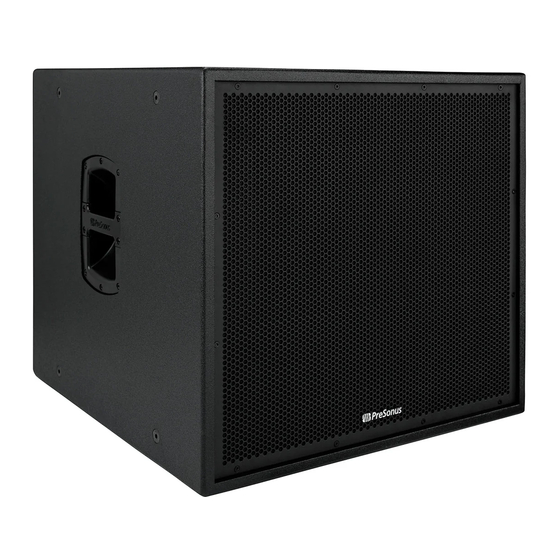

- Page 1 CDL Sub18 Active Sound Reinforcement Subwoofer Owner’s Manual ® English www.presonus.com...
-
Page 2: Table Of Contents
Application and Deployment — 4 Stacking, Hanging, and Mounting — 4 3.1.1 Ground stacking CDL Sub18 Subwoofer — 4 Hanging a CDL Sub18 Subwoofer — 4 3.1.2 Pole Mounting Options — 5 3.1.3 Technical Information — 6 Specifications — 6... -
Page 3: Overview
1000W 18” subwoofer with a 4” voice coil. While compatible with any full-range system, the CDL Sub18 was designed to naturally extend the range of the CDL12P and CDL10P loudspeakers for both single box and arrayed configurations. -
Page 4: Hookup
It has no effect on the signal level from the direct output. Push this control to access all the DSP functions in the CDL Sub18 loudspeaker. Power User Tip: A subwoofer can significantly change the frequency response of a full-range system. -
Page 5: Power
DSP settings before exiting. Power AC Line Connection. CDL Sub18 loudspeakers have a universal power with a voltage range of 100-230VAC, 50 - 60Hz. Each loudspeaker is supplied with a locking 3-conductor AC power cord appropriate for the country of sale. -
Page 6: Application And Deployment
When stacking another CDL Sub18 atop the CDL Sub18, the feet of the top CDL Sub18 will fit into indentations in the top of the bottom CDL Sub18. This keeps the CDL Sub18 from walking. Provisions should be made to properly secure CDL Sub18s’... -
Page 7: Pole Mounting Options
You can mount up to two CDL 12P or CDL 10P loudspeakers on a loudspeaker pole atop a CDL Sub18. A single CDL 12P or CDL 10P may also be mounted atop a CDL Sub18. When mounting atop a supported PreSonus subwoofer, utilize a sub pole that supports the total weight of the CDL loudspeaker(s). -
Page 8: Technical Information
• M10 mount points • Support for (4) Ground Stack provisions; • Support for PreSonus Caster Kit; 4 mount points for casters on the rear Dimensions (H x W x D) 25” x 24.5” x 22.75” (635 mm x 622 mm x 577.8 mm) Weight 105.8lbs (48kg) - Page 9 Gulf fish. Also known as Reds or Red Drum, Redfish is not only fun to catch, it’s also delicious! © 2023 PreSonus Audio Electronics, Inc. All Rights Reserved. PreSonus is a registered trademark of PreSonus Audio Electronics, Inc. All other trademarks are the property of their...
