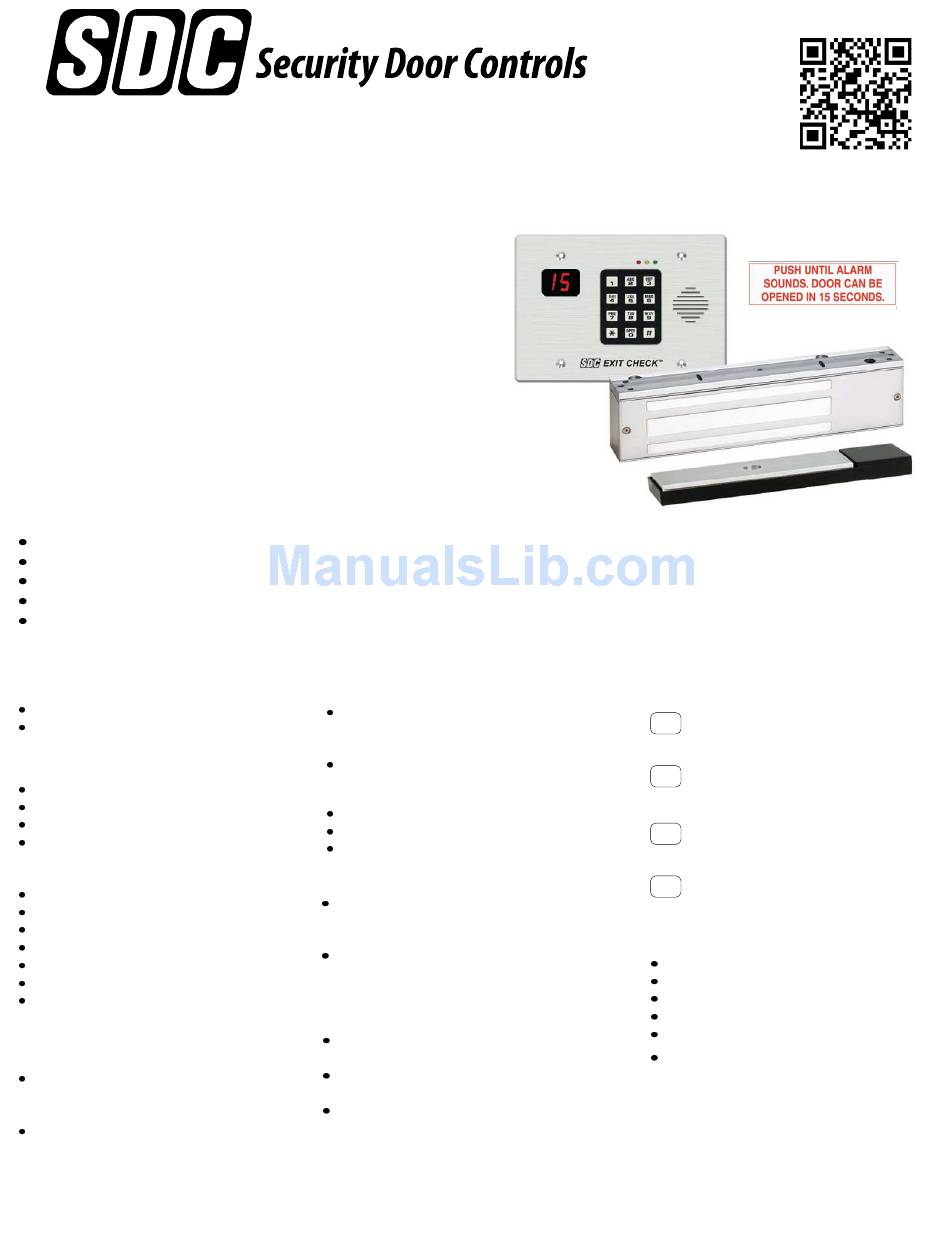

Verbal Exit Instructions or
Alarm Tone Only and
Digital Countdown Display
Application:
When unauthorized egress is initiated SDC
through the door for 15 seconds (or 30 seconds). Meanwhile, the person
exiting must wait while personnel or security responds. The door unlocks
after 15 seconds have elapsed permitting egress. When powered by a fire
control supervised power supply, the lock will release immediately in an
emergency. The integral digital keypad eliminates the need to carry and
locate keys for reset and bypass functions.
®

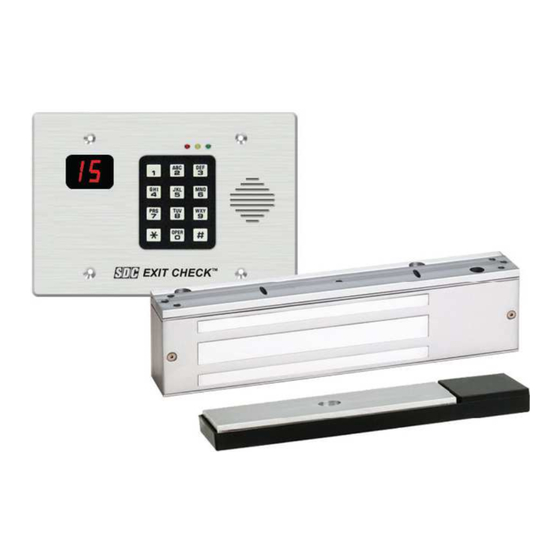

Exit Check
applications include:
Restricting the egress of wandering patients for their own safety.
®
HUGS
Infant Protection System compatibility
Restricting the egress of commercial center patrons for security application needs.
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
Reducing Shoplifting and Employee Theft
Features:
Egress Delay
15 or 30 second exit delay
1 or 2 second nuisance delay
Built-In 3 Function keypad
Alarm and lock reset
1 to 30 second bypass
Sustained bypass
Additional keyswitch optional
Built-In Annunciation
Armed mode
Nuisance mode
Irreversible egress mode
Release mode
Digital countdown mode
Field selectable voice notification or tone
Field selectable male voice with security
message or female voice with safety
message
Triggering Options
Egress alarm triggered by door
movement when used with SDC
1500DE series EMLocks.
Trigger input from external device
field selectable (N/O or N/C)
P:\INSTALLATION INST\Delayed Egress\INST-101DE_KDE.vsd
INSTALLATION INSTRUCTIONS
101-DE/101-KDE
®
Exit Check
delays egress
Control Inputs
1 to 30 second request-to-exit and bypass
input with anti-tailgate and jumper
selectable door prop alarm.
Reset
Monitoring Outputs
Armed mode
Egress initiation status
Released status
Optional EMLock Outputs
Door position sensor – indicates door
open and door closed, commonly used to
verify egress after release.
Magnetic bond sensor – indicates locked
with full holding force, low holding force,
unlocked and tampering.
Choice of Mounting
Recessed mounted
(3 gang metal plaster ring included)
Surface mounted with optional 3 gang
box (DEC-J)
Optional shroud (SHD-J) to be used with
DEC-J surface box.
Rev D
09-14
Page 1
Display Modes
Door armed and locked.
15
Alarm countdown has ended,
door is unlocked and alarm sounding
00
until reset.
Door unlocked and alarm is shunted
- -
(REX or Bypass)
Door has been opened after REX,
- -
- - - -
Bypass or Alarm.
Code Compliance
IFC International fire Code
IBC International Building Code
NFPA 101 Life Safety Code
NFPA 1 Uniform Fire Code
California Building Code
Field selectable automatic or manual
power up after emergency release or
power loss. Use of manual power up
complies with California Building Code
(OSHPD) requirements.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Related Manuals for SDC 01-DE Exit Check
Summary of Contents for SDC 01-DE Exit Check
-
Page 1: Installation Instructions
Digital Countdown Display Application: ® Exit Check When unauthorized egress is initiated SDC delays egress through the door for 15 seconds (or 30 seconds). Meanwhile, the person exiting must wait while personnel or security responds. The door unlocks after 15 seconds have elapsed permitting egress. When powered by a fire control supervised power supply, the lock will release immediately in an emergency. - Page 2 101-DE/101-KDE Operational Description The door is closed and secured by latching hardware. The model 101-DE/101-KDE Exit Check controller sends power to the magnetic lock or Delayed Egress Panic Device to lock the door in the secured position. The integral digital display shows the unlock delay time.
- Page 3 Typical System Wiring – Single Door w/ Latching Hardware WARNING: APPLICATION OF VOLTAGE TO THE DRY CONTACT INPUTS OF THIS UNIT WILL CAUSE PERMANENT DAMAGE AND VOID THE WARRANTY 3 conductors AC Mains 2 conductors Power To Fire Panel – Dry, Closed Contact Supply To Smoke Detection 2 conductors...
- Page 4 KEY CYLINDER INSTALLATION (KDE Model Only) WITH KEY CYLINDER IN PROPER POSITION INSIDE SWITCH BLOCK, 1-1/4” KEY CYLINDER TIGHTEN THE SET SCREW TO REQUIRES COLLAR LOCK CYLINDER IN PLACE. 1-1/8” KEY CYLINDER 7185SC1-26D-KD RECESSED MOUNTING DRY WALL 1) Cut hole in dry wall to dimensions shown.
- Page 5 SURFACE MOUNT 3 GANG BOX 1) Attach optional 3 Gang Surface Mount Box to wall using TO WALL screws supplied. 1a) Knockouts are located on two surfaces of the box to allow wire conduit insertion. 2) Carefully insert unit and secure with screws supplied.
- Page 6 RECOMMENDED MOUNTING PROCEDURE USE 1-1/4” SCREWS SUPPLIED WITH WALL MOUNT FRAME TO HANG UNIT TEMPORARILY FOR WIRING PURPOSES SLIDE PACKING FOAM BETWEEN WALL AND UNIT TO PREVENT DAMAGE TO FACEPLATE WIRE UNIT AS SHOWN (SHOWN WITH NO OPTIONS). VIEW A-A P:\INSTALLATION INST\Delayed Egress\INST-101DE_KDE.vsd Rev D 09-14...
-
Page 7: Dip Switch Settings
MODEL 101-DE MODEL 101-KDE Trigger Switch 101-DE / 101-KDE SDC MODELS PWR LOCK RED RLY GRN RLY TRIG REX RESET 1511DE 1575DE 1571DE 1576DE NO C NC NO C NC C NO C NO C NO C NO 1581DE Note for 1581DE only:... -
Page 8: System Operation
System Operation POWER-UP UNLOCKED POWER-UP LOCKED The door is unlocked. To enter the The door is Armed Mode, turn the keyswitch to locked and Reset or enter the Reset Code secure “11 ” on the keypad DELAYED EGRESS MODE The door is still locked and secure. The display is counting down with audible alarm/voice instructions. -
Page 9: Exit Programming Mode
Changing the Master Code User 1 is always used as the Master Code and is required to access keypad programming. The Factory Default Master Code is “1234 ”. It is strongly recommended that a new Master Code is assigned after installation. -
Page 10: Specifications
Door Without Latch Assembly Activation By Sure Exit Push Bar MODELS TO FIRE COMMAND Power Supply CENTER 101-DE 115 VAC 101-KDE 1575DEU 1581DEV 1576DEU 1571DEV 1511DEV PUSH UNTIL ALARM SOUNDS. DOOR CAN BE PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS. - Page 11 Connecting to a Infant/Patient Monitoring System 1. Locate jumper [J6] (above the IBO input). Verify that it is NOT installed across both pins. 2. Close AND hold the REX input. The 101-DE will be in Bypass Mode and will be unlocked. 3.
- Page 12 Connecting Optional Accessories Door Without Latch Assembly Activation By Sure Exit Push Bar Power TO FIRE COMMAND Supply CENTER 115 VAC PUSH UNTIL ALARM SOUNDS. DOOR CAN BE PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS. OPENED IN 15 SECONDS. Power Transfer MSB550/PSB560 Hinge or Loop...
