SECURITY DOOR CONTROLS
3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
™

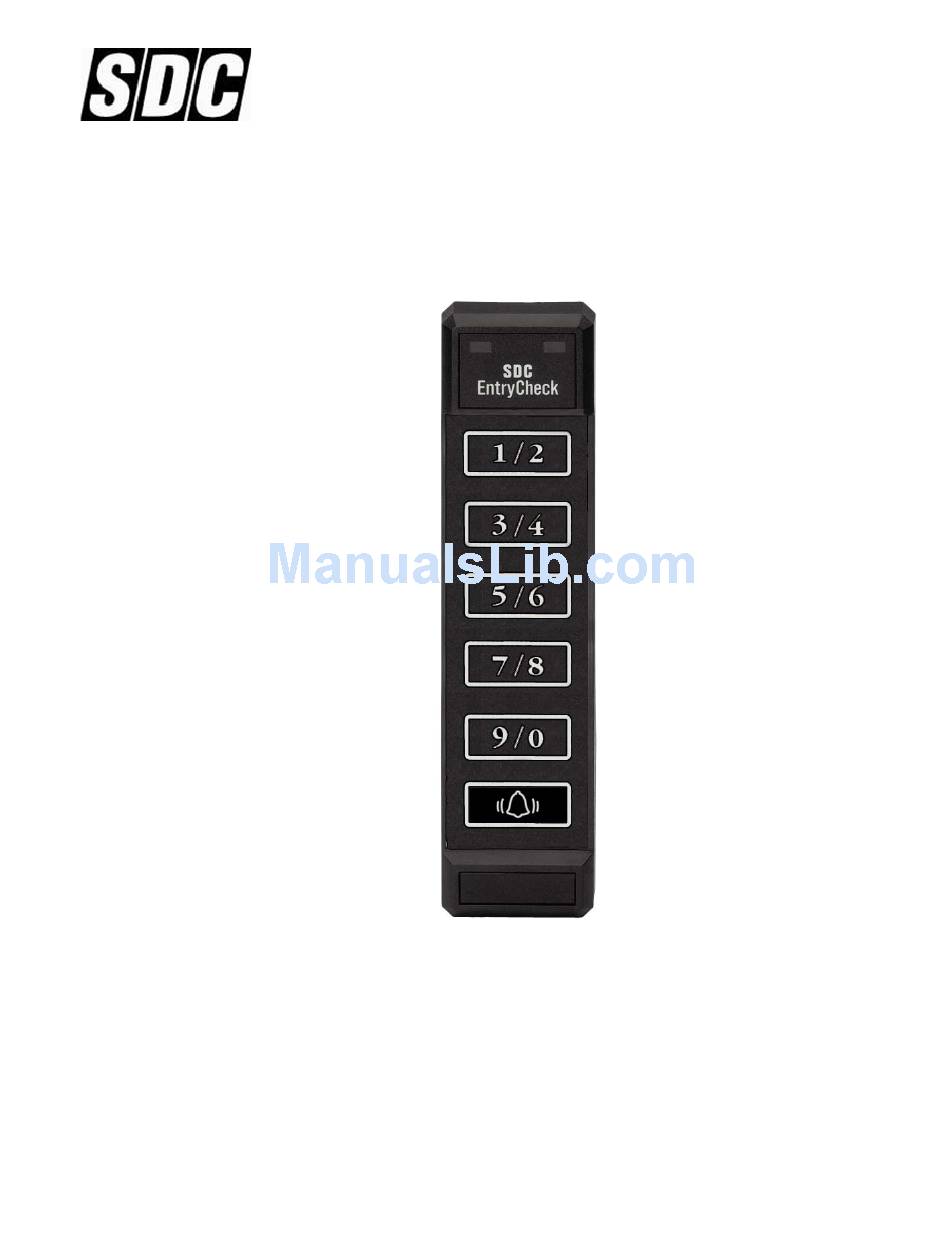

The 930 EntryCheck
is an easy to program, easy to use, stand alone, self-contained system with features
suitable for basic access control requirements. Providing either a voltage output or dry contact closure, the 930 is
designed to control any fail-safe or fail-secure electric locking device.
The 930 features one master code and five user codes. One relay output is available to provide a variety of access
control configurations including single door access control, Gate/Garage Door control or other electronic equipment
control. The 930 also provides two ¼ Amp grounding outputs for a CCTV/Light Controller and Doorbell operation.
P:\INSTALLATION INST\Access Control\INST-930.vsd
INSTALLATION INSTRUCTIONS
Model 930 EntryCheck
0505
Page 1
™
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EntryCheck 930 and is the answer not in the manual?

Questions and answers

Related Manuals for SDC EntryCheck 930

Summary of Contents for SDC EntryCheck 930

  • Page 1 SECURITY DOOR CONTROLS 3580 Willow Lane, Westlake Village, CA 91361-4921 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS ™ Model 930 EntryCheck ™ The 930 EntryCheck is an easy to program, easy to use, stand alone, self-contained system with features suitable for basic access control requirements.

  • Page 2: Table Of Contents

    Table of Contents SYSTEM SPECIFICATIONS INPUT REQUIREMENTS OUTPUT CAPABILITIES OPERATING TEMPERATURES PREPARING FOR INSTALLATION SYSTEM COMPONENTS THE INSTALLATION PROCEDURE REQUIRED TOOLS PREPARE THE KEYPAD FOR INSTALLATION INSTALL THE WIRING CABLE CONNECT THE 930 EntryCheck PREPARE THE DOOR FOR THE ELECTRIC STRIKE CONNECTING THE LOCKING DEVICE SYSTEM HARDWARE SETUP REMOTE BY-PASS...

  • Page 3: System Specifications

    SYSTEM SPECIFICATIONS Input Requirements: 12 to 24V AC/DC Standby Current Draw: < 10 mA Maximum Current Draw: 100 mA (Using keypad illumination) One SPDT Relay (2 Amps at 24V max) Main Output: • Voltage or Dry Contact • Fail Safe or Fail Secure Lock ¼...

  • Page 4: Input Requirements

    INPUT REQUIREMENTS ™ The 930 EntryCheck accepts 12 to 24 Volts AC/DC. System current draw (maximum): Standby: 10mA at 12/24 Volts During Operation: 100 mA max IMPORTANT: The maximum output current allowed is ½ Amp. Check the specifications of your locking device.

  • Page 5: Preparing For Installation

    PREPARING FOR INSTALLATION SYSTEM COMPONENTS There are four primary components to be installed: ™ 1. The 930 EntryCheck should be mounted on the wall adjacent to the door. It should be on the same side as the door strike and about 4 feet above the floor. Strike 2.

  • Page 6: Install The Wiring Cable

    INSTALL THE WIRING CABLE 1. Drill a hole in the inside wall or ceiling where you want the cable to come through. 2. Splice added cable length to the wires you will be using (Power, locking device, etc. - See Typical System Wiring).

  • Page 7: Anti-Tailgating

    ANTI-TAILGATING Some security applications require stricter door monitoring. Anti-tailgating can be controlled by installing a normally closed door monitor switch to the BROWN “Door Monitor” wire and the BLACK wire on the wire harness (See Appendix A – Page 11). This switch may be the output of a latch monitor switch, a monitor maglock or an alarm switch that senses door movement.

  • Page 8: System Programming

    SYSTEM PROGRAMMING OVERVIEW OF SYSTEM CODE PROGRAMMING ™ There are TWO levels of codes for the 930 EntryCheck system. 1. The Master Code (used by owner/management to open the door and to program User Codes) 2. User Codes (used by guests/personnel to open the door) IMPORTANT: Notes to remember before programming: 1.

  • Page 9: Overview Of User Codes

    OVERVIEW OF USER CODES ™ There are a total of 5 User codes that can be programmed into the 930 EntryCheck . User Codes can vary in length from 3 to 8 digits. Each User Code is programmed into one of 5 User Locations. These Locations are as follows: User # User Location...

  • Page 10: Troubleshooting

    These are a few troubleshooting suggestions to help assist with any problems you may experience. If the problem continues or is not answered here, please call Security Door Controls (SDC) technical support at 1-800- 413-8783. You may visit SDC on the web at sdcsecurity.com or send question via email: service@sdcsecurity.com.

  • Page 11: Appendix A - Circuit Board Layout

    APPENDIX A – TYPICAL SYSTEM WIRING Wiring notes: ™ 1) The 930 EntryCheck is designed to control a 12 to 24V locking device. To control any voltage higher than 24V, you must switch an external relay. 2) To disable Latching Capability, cut the Green wire loop. 3) To disable Illumination, cut the Blue wire loop.

  • Page 12: Appendix B - Typical Wiring Diagrams

    APPENDIX B – TYPICAL OUTPUT WIRING Garage Door/Gate Operator Controlled by 930 EntryCheck Remove Factory Installed DC+ Jumper Jumper (COM) GREEN Connect Across Existing Pushbutton (N.O.) ORANGE Set Door Open Time To 1 Second Fail Safe or Fail Secure Lock Controlled by 930 Series and Powered by External Power Supply Verify Installation of DC+ Jumper...
