SDC 101-DE Installation Instructions Manual

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Verbal Exit Instructions or
Alarm Tone Only and
Digital Countdown Display
Application:
When unauthorized egress is initiated SDC
through the door for 15 seconds (or 30 seconds). Meanwhile, the
person exiting must wait while personnel or security responds. The door
unlocks after 15 seconds have elapsed permitting egress. When
powered by a fire control supervised power supply, the lock will release
immediately in an emergency. The integral digital keypad eliminates the
need to carry and locate keys for reset and bypass functions.
®
Exit Check applications include:

Restricting the egress of wandering patients for their own safety.
®

HUGS Infant Protection System compatibility

Restricting the egress of commercial center patrons for security application needs.

Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs

Reducing Shoplifting and Employee Theft
Features:
Egress Delay

15 or 30 second exit delay

1 or 2 second nuisance delay
Built-In 3 Function keypad

Alarm and lock reset

1 to 30 second bypass

Sustained bypass

Additional keyswitch optional
Built-In Annunciation

Armed mode

Nuisance mode

Irreversible egress mode

Release mode

Digital countdown mode

Field selectable voice notification or
tone

Field selectable male voice with
security message or female voice with
safety message
Triggering Options

Egress alarm triggered by door
movement when used with SDC
1500DE series EMLocks.

Trigger input from external device field
selectable (N/O or N/C)
P:\INST INSTRUCTIONS\DELAYED EGRESS\INST-101-DE_KDE
INSTALLATION INSTRUCTIONS
101-DE & 101-KDE
®

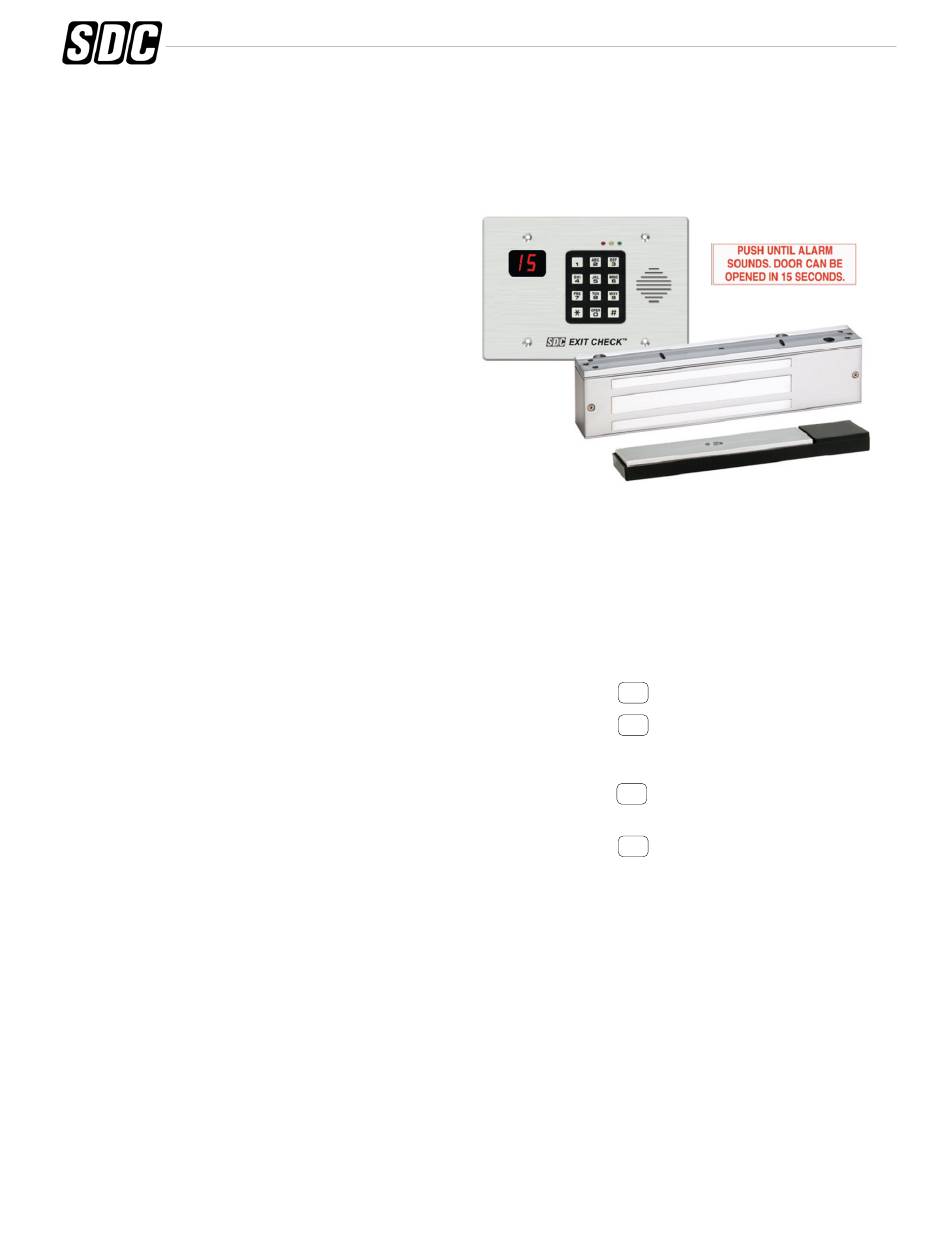

Exit Check
delays egress
Control Inputs

1 to 30 second request-to-exit and
bypass input with anti-tailgate and
jumper selectable door prop alarm.

Reset
Monitoring Outputs

Armed mode

Egress initiation status

Released status
Optional EMLock Outputs

Door position sensor – indicates door
open and door closed, commonly
used to verify egress after release.

Magnetic bond sensor – indicates
locked with full holding force, low
holding force, unlocked and
tampering.
Choice of Mounting

Recessed mounted
(3 gang metal plaster ring included)

Surface mounted with optional 3 gang
box (DEC-J)

Optional shroud (SHD-J) to be used
with DEC-J surface box.
REV H.2
Display Modes
15
00
- -
- -
- - - -
Code Compliance






11-24 Page 1
Door armed and locked.
Alarm countdown has ended,
door is unlocked and alarm
sounding until reset.
Door unlocked and alarm is
shunted (REX or Bypass)
Door has been opened after REX,
Bypass or Alarm.
IFC International fire Code
IBC International Building Code
NFPA 101 Life Safety Code
NFPA 1 Uniform Fire Code
California Building Code
Field selectable automatic or manual
power up after emergency release or
power loss. Use of manual power up
complies with California Building Code
(OSHPD) requirements.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
