Summary of Contents for ARRI ARRIFLEX D-21
- Page 1 ARRIFLEX D-21 The Film Style Digital Camera...

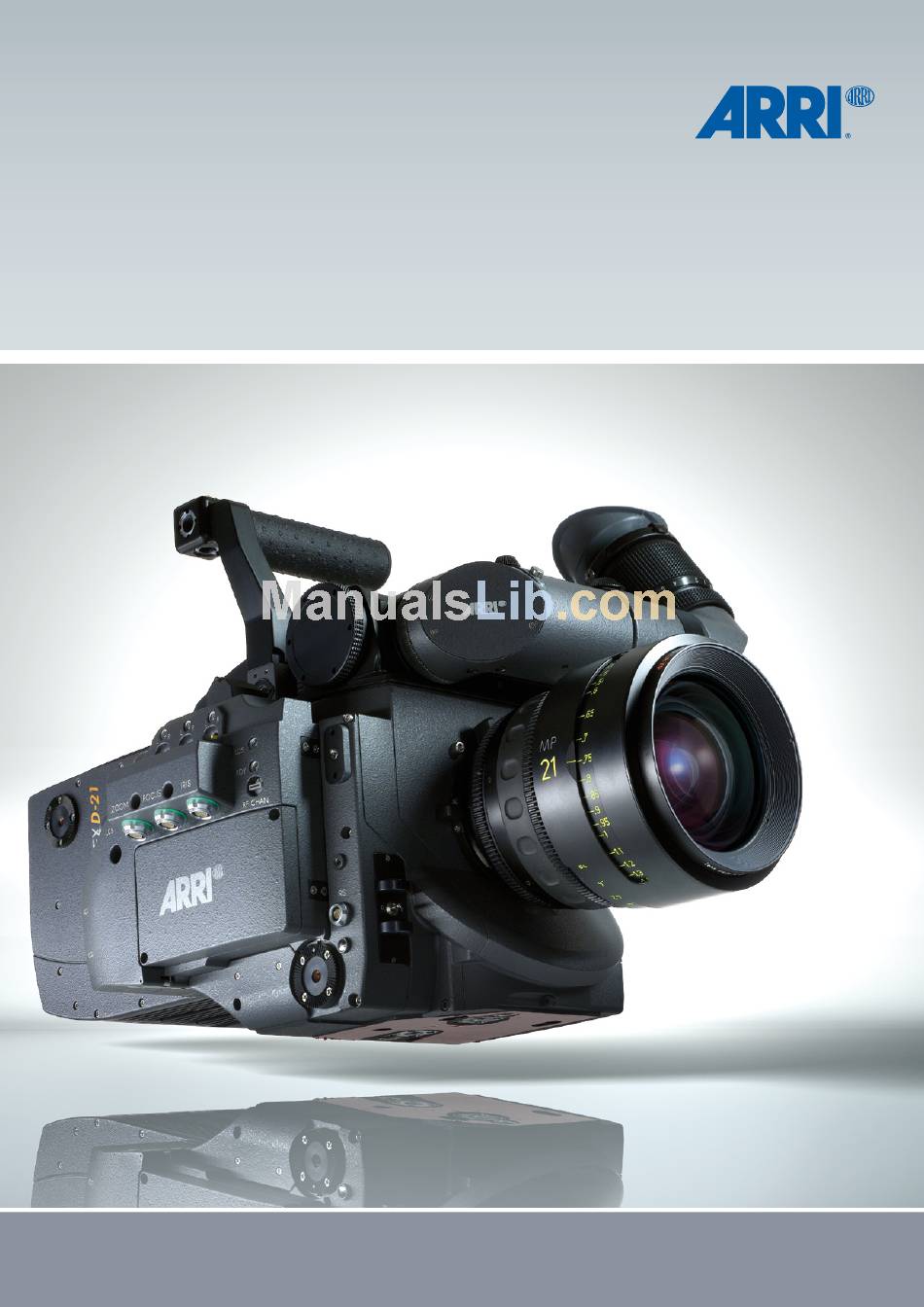

- Page 2 ARRIFLEX D-21 The Film Style Digital Camera The ARRIFLEX D-21 combines leading edge digital technology with film camera features that have been refined over ARRI’s 90-year history. It allows directors and cinematographers to shoot in the same way as they would with 35 mm film, while taking advantage of the immediacy and economy of digital acquisition.
- Page 3 ARRI | ARRIFLEX D-21...
- Page 4 ARRIFLEX D-21 – Main Features n Cinematic Image Quality · ARRI Imaging Technology for a cinematic look · rotating mirror shutter for film-like motion portrayal · single, Super 35 size sensor for 35 format depth of field · highest dynamic range of any digital motion picture camera ·...
- Page 5 (1.33:1 sensor format) ARRI | ARRIFLEX D-21 n Compatibility with 35 Format Film Accessories and Support Equipment · ARRI matte boxes, follow focus, wireless remote control · dollies, cranes, Steadicam, etc. n A True ARRI Camera · silent running · simple operation ·...
- Page 6 D-21's imaging chain down to the smallest detail allows an optimization of the whole system far beyond what would be possible with off-the-shelf components. The smart orchestration of all these proprietary components is ARRI Imaging Technology (AIT). AIT, which is in constant development, combines ground-breaking research and development with knowledge, feedback and suggestions gleaned from an on-going dia- logue with professional filmmakers.
- Page 7 ARRI high-end motion picture cameras. ARRI | ARRIFLEX D-21 A number of powerful FPGAs (Field Programmable Gate Arrays) constitute the imaging hardware engine inside the D-21. They are a crucial component of ARRI Imaging Technology.
- Page 8 H D T V 1 . 7 8 An optical viewfinder is the preferred choice of both cinematographers and camera operators. The clear, full color image enables accurate assessment of focus and facilitates precise and comfortable operating for complex camera moves.
-
Page 9: The Optical Viewfinder
The Optical Viewfinder While most digital cameras use electronic viewfinders, the D-21 is equipped with the same optical viewfinder as all other ARRI cameras. Thus the D-21 viewfinder always shows an image area larger than the image being recorded, and it can be used even when the camera is not powered up. - Page 10 CinemaScope look of anamorphic lenses. Further enhancing the film-like quality of D-21 images is the camera’s rotating mirror shutter, which functions exactly as it does on 35 mm ARRI film cameras. This method of progressive image capture results in the most film-like motion portrayal possible.
- Page 11 11.2º. ARRI | ARRIFLEX D-21 The left upper area shows the D-21 sensor on its electronic backplane. The right bottom area shows the sensor frame that also holds the pro- tective glass and the low pass filter.
- Page 12 The Company; Photo: Jan Thijs © Turner Broadcasting 2006 The Company; Photo: © Sony Pictures TV The Company; Photo: © Sony Pictures TV Optical viewfinders are the preferred choice of both cinematographers and camera operators. The clear, full color image enables accurate assessment of focus and facilitates precise and comfortable operating for complex camera moves.
- Page 13 “Ridley [Scott] asked me to direct another miniseries and we decided - once again - to go with the ARRI digital camera. We're currently shooting in the Vancouver and getting great feedback on dailies.” “I've been fielding calls from DP's interested in using the ARRI digital camera system.
- Page 14 ARRIFLEX D-21 2x BNC Cables Dual Link HD-SDI Stream D-21 Raw RGBA Transport Stream Mapping Bayer Data RGBA Format D-21 Raw Bayer Data D-21 Raw Bayer Data mapped into RGBA Transport Stream D-21 Data Mode Main Features n Best Image Quality...
-
Page 15: Arriraw T-Link
One of the obstacles that has held back the use of raw data in the past has been the problem of how to get data easily from the camera to a recorder. ARRI engineers have found a way to utilize a standard dual link HD-SDI connection to transport the raw D-21 Bayer data. - Page 16 A True ARRI Camera The D-21 is a true ARRI camera; it runs silently and has the same robust construc- tion and ergonomic design ARRI cameras are famous for. Its controls are also simple and straightforward for fast and safe operation.
- Page 17 ARRI | ARRIFLEX D-21...
- Page 18 The Butcher's Shop; Cinematographer Sean Bobbitt, BSC Photos: © Andy Subratie Sean Bobbitt, BSC - Cinematographer on The Butcher’s Shop “The fact that you can work in log space and use LUTs to see the image on monitors on set is fantastic. It gives the director such confidence” “I’ve been shooting digital RAW with stills photography for some time and have recognised the clear benefits.
- Page 19 Michael Coulter, BSC - Cinematographer on The Bank Job “After using the ARRI digital camera on The Bank Job, I was very pleased with the end result. I look forward to the future developments of this camera.” Before and after compositing: the final scene with visual effects and Seattle background footage.
-
Page 20: Frequently Asked Questions
John Pardue - Cinematographer on Frequently Asked Questions About Time Travel “The camera is pretty much the same as a film camera in many ways: it has a great viewfinder and the same control panel as a 435. It’s also wonderfully simple to operate”. - Page 21 “Because it's a full-sized chip and a PL mount, there is a full choice of all the film lenses.” Prisoners of the Sun; Photo © Miromar Entertainment AG ARRI | ARRIFLEX D-21 Afrika Mon Amour; Camera equipped with “workhorse” ARRI Master Zoom...
-
Page 22: Technical Data
Body and viewfinder: Accepts the whole range of ARRI matte boxes, 15 mm or 19 mm rod systems, follow focus and ARRI electronic accessories, Lens Control System (LCS), Lens Data System (LDS), Wireless Remote System (WRS), Wireless Remote Control WRC-2, Iris Control Unit for speed/iris ramps (ICU-1), Accessories Remote On/Off Switch (RS-4), Integrated Video System (IVS), External Synchronization Unit (ESU-1). - Page 23 ARRI | ARRIFLEX D-21...
- Page 24 This ARRIFLEX D-21 product brochure (K5.40460.0) is published by Arnold & Richter Cine Technik, April 01, 2008 © ARRI/2008 Technical data and offerings are subject to change without notice. All rights reserved. Without any warranty. Not binding 04/2008. ARRI is a registered trademark of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
