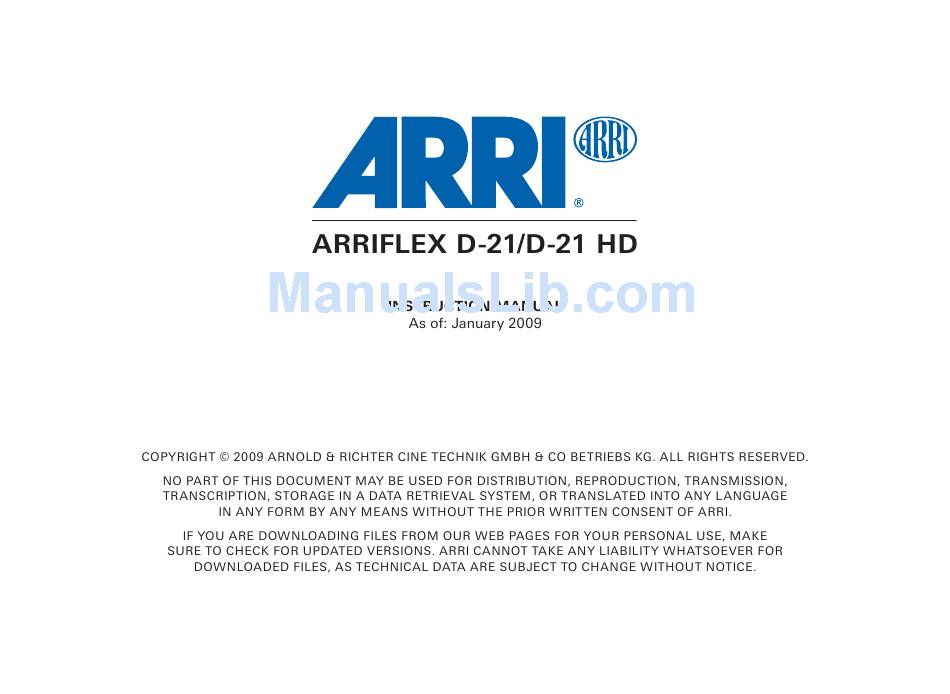

ARRI ARRIFLEX D-21 Instruction Manual
Hide thumbs
Also See for ARRIFLEX D-21:
- Instruction manual (150 pages) ,
- Preliminary instruction manual (63 pages) ,
- Brochure & specs (24 pages)
Related Manuals for ARRI ARRIFLEX D-21
Summary of Contents for ARRI ARRIFLEX D-21
- Page 42 Main Menu User Mode: Standard White Balance: 3200 K Framerate: 25PsF HD-SDI Mode: HD422 Output Range: Normal Range Contrast Char.: EI 200 SD Mode Diagnostics Exit Main Menu User Mode: Advanced White Balance: 3200 K Framerate: 24PsF Output Board: ALL (1>2>SD) HD-SDI Mode: HD444 Output Range:...
- Page 43 User Mode Standard Mode Advanced Mode Cancel Enter Code ****...
- Page 44 White Balance 3200 K 4300 K 5600 K 7000 K WB 1 ( 3252 K) RGB 1.00 1.09 1.97 WB 2 ( 5440 K) RGB 1.22 1.00 1.35 WB 1 ( 3156 K) RGB 1.00 1.10 2.04 Automatic Manual Cancel Auto White Balance Start Processing Save Settings...
- Page 45 1.00 1.08 1.95 CCT: 3267 K...
- Page 46 Manual White Balance 1.00 1.11 2.00 Save Settings Cancel...
- Page 47 Frame Rate 23.976 PsF 24 PsF 25 PsF 29.97 PsF 30 PsF 48 PsF 50 PsF 59.94 PsF 60 PsF Cancel...
- Page 48 Output Board ALL (1>2>SD) HD-SDI 1 HD-SDI 2 Cancel...
- Page 49 Main Menu User Mode: Advanced White Balance: 3200 K Framerate: 24PsF Output Board: HD-SDI 1 HD-SDI Mode: HD444 Output Range: RGB Norm. Colour Matrix: 3200 K Contrast Char.: 3601 EI 200 SD Mode Diagnostics Exit...
- Page 50 Mode HD-SDI ALL HD422 HD444 Mscope HD422 ARRIRAW Cancel...
- Page 52 Output Range HD-SDI ALL Normal Range Extended Range Cancel...
- Page 53 Colour Matrix ALL 3200 K 4300 K 5600 K 7000 K 5600 K Sat. 125% 5600 K Sat. 75% 3200 K Sat. 125% 3200 K Sat. 75% Matrix OFF Cancel...
- Page 54 Contrast Char. ALL EI 100 EI 200 EI 250 EI 320 EI 400 EI 500 EI 640 EI 800 LOG C LOG F Cancel...
- Page 59 SD Mode Output Zebra: SD Video Mode: NTSC Format Marking: 1.78:1 Cancel Output Zebra High Zebra: High Zebra Level: 83.0% High Zebra Colour: Low Zebra: Low Zebra Level: 20.0% Low Zebra Colour: Yellow Cancel...
- Page 60 SD Video Mode NTSC Cancel Format Marking 1.78:1 1.85:1 2.35:1 1.33:1 (HD Crop) Format 1 Format 2 Format 3 Edit Format Cancel...
- Page 61 Status 2 Status 1 Status 3 ECU: Camera Status: SENSOR: Shutter Mode: ROTATING Sensor Temp: 32.0 °C ADGOC0: Shutter Pos.: ROTATING Sensor Board Temp: 30 °C ADGOC1: Shutter Angle: 180.00 ECU Board Temp: 36 °C ADGOC2: Image Size: 2880x2160 VDD 2.5 V: 2433 mV ADGOC3: Framerate:...
- Page 63 Diagnostics Status Standard Reset Cancel...
- Page 64 1.78:1 Viewfinder Zebra RGB-Histogram...
- Page 66 Camera Display: ARRIFLEX D-21 ∢ 172.8 HD-SDI 2 HD-SDI 1 fps 24.000 On Screen Menu: 24 PsF HD422 Normal Range HD-SDI HD-SDI HD-SDI Input Format: MONITOR HD-SDI OUT 4:2:2 24p/48i...
- Page 67 Camera Display: ARRIFLEX D-21 ∢ 180.0 HD-SDI 2 HD-SDI 1 fps 50.000 On Screen Menu: 50 PsF HD422 Normal Range HD-SDI HD-SDI HD-SDI Input Format: MONITOR HD-SDI OUT 4:2:2 Dual Link...
- Page 68 Camera Display: ARRIFLEX D-21 ∢ 144.0 HD-SDI 2 HD-SDI 1 fps 23.976 On Screen Menu: 23.98 PsF HD444 Extended Range HD-SDI HD-SDI HD-SDI Input Format: MONITOR HD-SDI OUT 4:4:4 23.98p/59.94i...
- Page 69 Camera Display: ARRIFLEX D-21 ∢ 180.0 HD-SDI 2 HD-SDI 1 fps 25.000 On Screen Menu: 25 PsF Mscope HD422 Normal Range HD-SDI HD-SDI HD-SDI Input Format: MONITOR HD-SDI OUT 4:2:2 Dual Stream 25p/50i...
- Page 70 Camera Display: ARRIFLEX D-21 ∢ 180.0 HD-SDI 2 HD-SDI 1 fps 25.000 On Screen Menu: 25 PsF ARRIRAW DATA DATA HD-SDI IEEE 1394 Gig E Input Format: MONITOR HD-SDI OUT ARRIRAW 25 PsF...
- Page 74 PROG...
