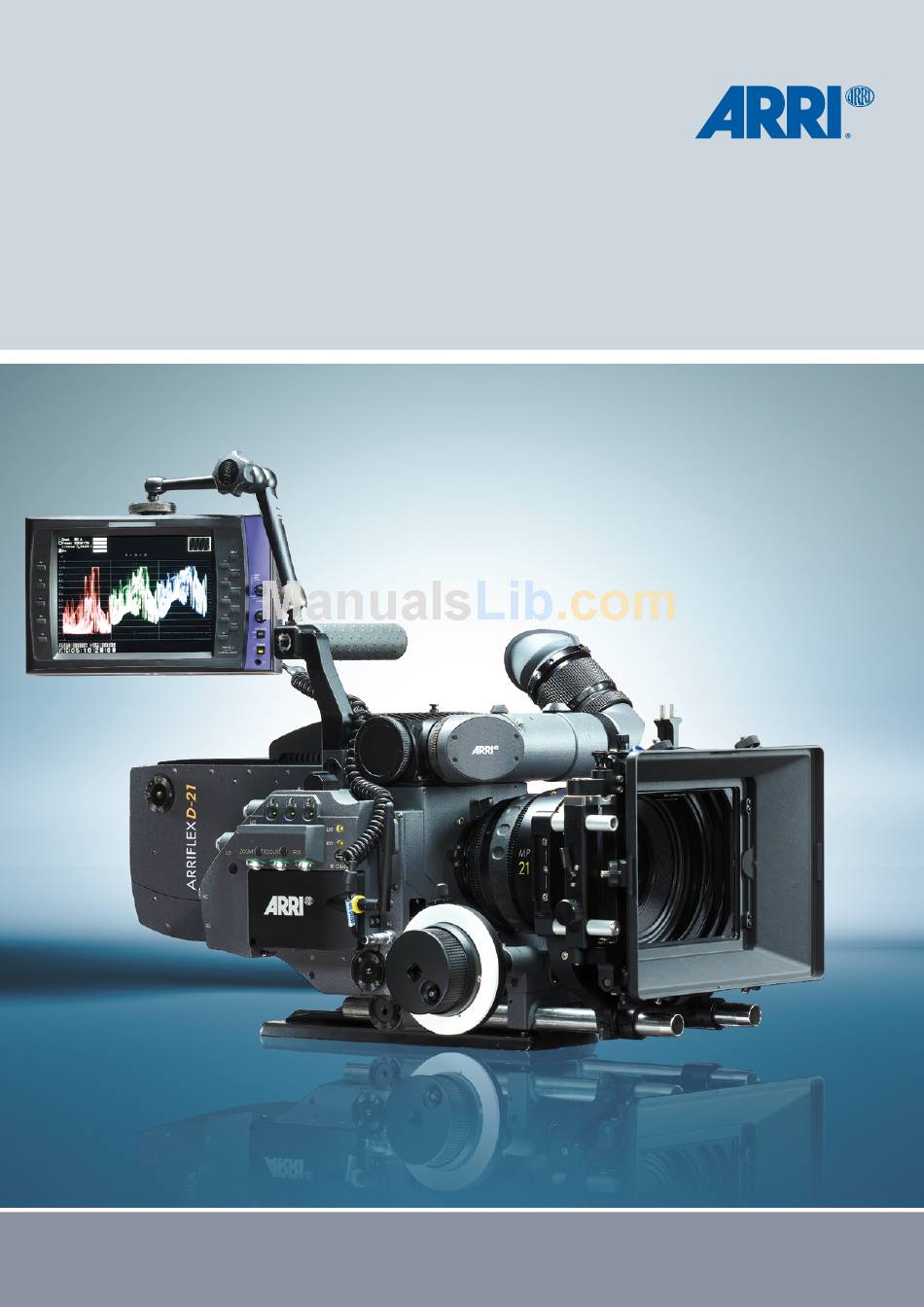

- Page 1 ARRIFLEX D-21 / D-21 HD The Film Style Digital Cameras...
- Page 2 35 mm film, while taking advantage of the immediacy and economy of digital acquisition. As the top of the line digital cameras from ARRI, the market leader in professional imaging, they are equipped with a number of unique features:...
- Page 3 ARRI | ARRIFLEX D-21 / D-21 HD...
-
Page 4: Main Features
· Mscope and HD output modes n Cinematic Image Quality · ARRI Imaging Technology for a cinematic look · rotating mirror shutter for film-like motion portrayal · single, Super 35 sized sensor for 35 format depth of field · highest dynamic range of any digital motion picture camera ·... - Page 5 · compatible with spherical and anamorphic lenses ARRI | ARRIFLEX D-21 / D-21 HD n Compatibility with 35 Format Film Accessories and Support Equipment · ARRI matte boxes, follow focus, wireless remote control · dollies, cranes, Steadicam, etc. n A True ARRI Camera · silent running ·...
- Page 6 The smart orchestration of all these proprietary components is ARRI Imaging Technol- ogy (AIT).
- Page 7 The cameras’ CMOS sensor was specifically designed and developed for use in ARRI high-end digital motion picture cameras. ARRI | ARRIFLEX D-21 / D-21 HD A number of powerful FPGAs (Field Programmable Gate Arrays) constitute the imaging hardware engine inside the D-21 and D-21 HD. They are a crucial...
- Page 8 An optical viewfinder is the preferred choice of both cinematographers and camera operators. The clear, full color image enables accurate assessment of focus and facilitates precise and comfortable operating for complex camera moves through a complete lack of any delay. Most crucial of all is the fact that an optical viewfinder shows an image larger than that being recorded and therefore allows the operator to see not just what is in frame, but also what is just outside the frame.
- Page 9 The Optical Viewfinder While most digital cameras use electronic viewfinders, the D-21 and D-21 HD are equipped with the same optical viewfinder as all other ARRI cameras. Thus the cameras’ viewfinder always shows an image area larger than the image being recorded, and it can be used even when they are not powered up.
- Page 10 CinemaScope look of anamorphic lenses. Further enhancing the film-like quality of the images is the rotating mirror shutter, which functions exactly as it does on 35 mm ARRI film cameras. This method of progressive image capture results in the most film-like motion portrayal possible.
- Page 11 The mirror portion can be seen to the left, and to the right the variable shutter blade is visible, here restricting the open shutter angle to 11.2º. ARRI | ARRIFLEX D-21 / D-21 HD The left upper area shows the sensor used in the D-21 and D-21 HD on its electronic backplane.
- Page 12 Mscope – A New and Unique Output Format A new and unique feature of both D-21 and D-21 HD is the patented Mscope process, which combines for the first time the use of anamorphic lenses with the economy of HD acquisition. Filmmakers and audiences alike have grown up with the uniquely cinematic ana- morphic look and associate it with the emotional impact of big-screen movies.
- Page 13 , a regular HD image. From ARRI | ARRIFLEX D-21 / D-21 HD 2x HD-SDI 4:2:2 RECOMBINING FURTHER POST After ingest, Images...
- Page 14 ARRIFLEX D-21 2x BNC Cables Dual Link HD-SDI Stream D-21 Raw RGBA Transport Stream Mapping Bayer Data RGBA Format D-21 Raw Bayer Data D-21 Raw Bayer Data mapped into RGBA Transport Stream D-21 Only: Data Mode Main Features n Best Image Quality - uncompressed, unprocessed 12 bit - the output option with the highest dynamic - improved image quality through advanced...
-
Page 15: Arriraw T-Link
One of the obstacles that has held back the use of raw data in the past has been the problem of how to get data easily from the camera to a recorder. ARRI engineers have found a way to utilize a standard dual link HD-SDI connection to transport the raw D-21 Bayer data. - Page 16 A True ARRI Camera The D-21 and the D-21 HD are true ARRI cameras; they run silently and have the same robust construction and ergonomic design for which ARRI cameras are famous. Their controls are also simple and straightforward for fast and safe operation.
- Page 17 ARRI | ARRIFLEX D-21 / D-21 HD...
- Page 18 The Company; Photo: Jan Thijs © Turner Broadcasting 2006 The Company; Photo: © Sony Pictures TV The Company; Photo: © Sony Pictures TV Optical viewfinders are the preferred choice of both cinematographers and camera operators. The clear, full color image enables accurate assessment of focus and facilitates precise and comfortable operating for complex camera moves.
- Page 19 “Ridley [Scott] asked me to direct another miniseries and we decided - once again - to go with the ARRI digital camera. We're currently shooting in the Vancouver and getting great feedback on dailies.” “I've been fielding calls from DP's interested in using the ARRI digital camera system.
- Page 20 Ed Wild - Cinematographer on Prisoners of the Sun “Because it's a full-sized chip and a PL mount, there is a full choice of all the film lenses.” Prisoners of the Sun; Photo © Miromar Entertainment AG Afrika Mon Amour; Camera equipped with “workhorse” ARRI Master Zoom...
- Page 21 Michael Coulter, BSC - Cinematographer on The Bank Job “After using the ARRI digital camera on The Bank Job, I was very pleased with the end result. I look forward to the future developments of this camera.” Before and after compositing: the final scene with visual effects and Seattle background footage.
-
Page 22: Common Technical Data
Height without handle: Accepts the whole range of ARRI matte boxes (15 or 19 mm rods), follow focus and ARRI electronic accessories, Lens Data System (LDS), Wireless Remote System (WRS), Wireless Remote Control WRC-2, Iris Control Unit for speed/iris ramps (ICU-1), Remote On/Off Switch (RS-4), Accessories External Synchronization Unit (ESU-1). - Page 23 - 2880 x 1620 RAW 12 bit Bayer data @ 29.97p, 30p Body only: Weight (without lens) Body and viewfinder: ARRIFLEX D-21 HD 35 format film style HD camera with an optical viewfinder 1x dual link HD-SDI out Camera fps Mode...
-
Page 24: Great Britain
This ARRIFLEX D-21 product brochure (K5.70447.0) is published by Arnold & Richter Cine Technik, September 01, 2008 © ARRI/2008 Technical data and offerings are subject to change without notice. All rights reserved. Without any warranty. Not binding 09/2008. ARRI is a registered trademark of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
