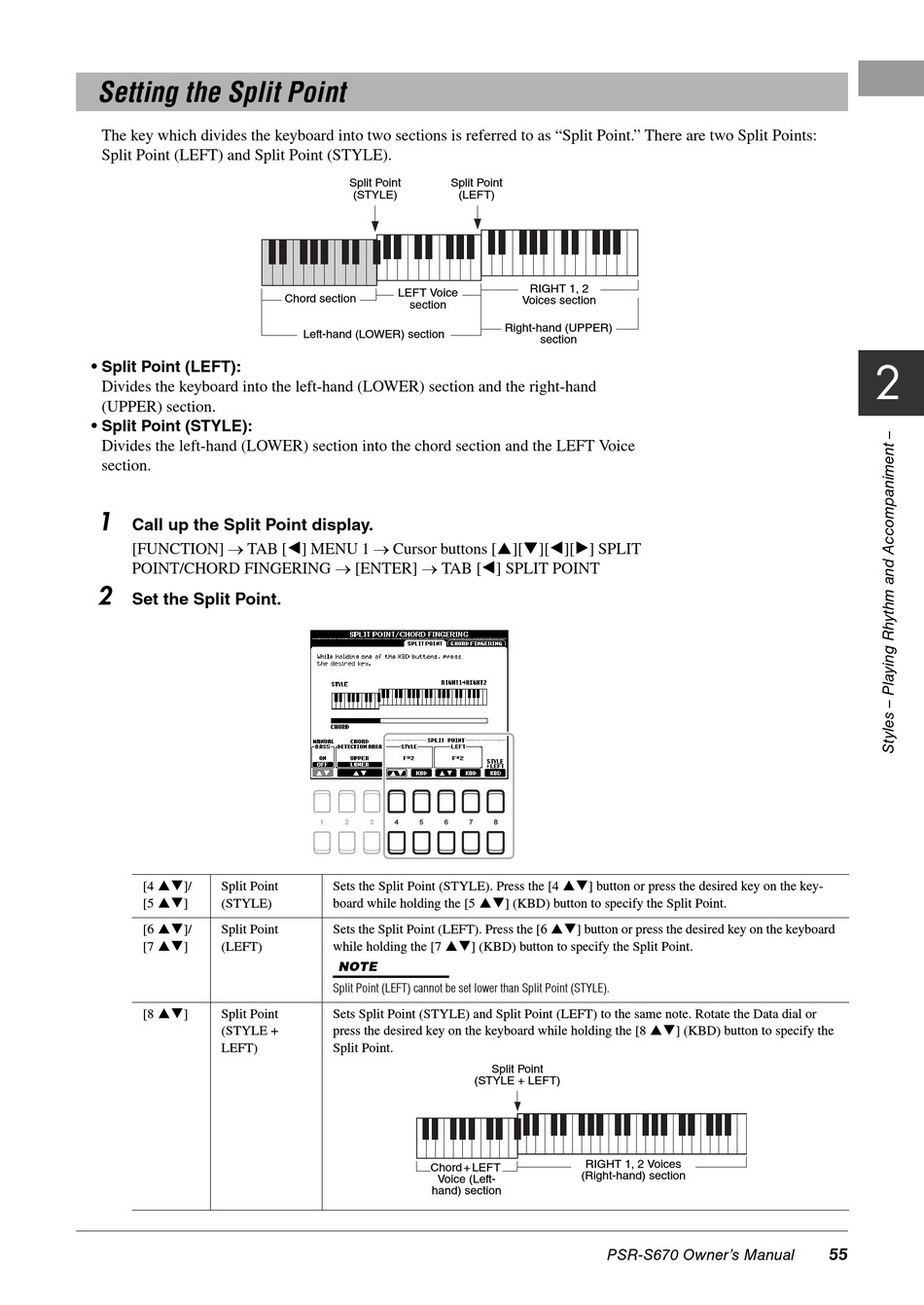

Setting the Split Point

The key which divides the keyboard into two sections is referred to as "Split Point." There are two Split Points:
Split Point (LEFT) and Split Point (STYLE).
• Split Point (LEFT):
Divides the keyboard into the left-hand (LOWER) section and the right-hand
(UPPER) section.
• Split Point (STYLE):
Divides the left-hand (LOWER) section into the chord section and the LEFT Voice
section.
1
Call up the Split Point display.
[FUNCTION]  TAB [E] MENU 1  Cursor buttons [][][E][F] SPLIT
POINT/CHORD FINGERING  [ENTER]  TAB [E] SPLIT POINT
2
Set the Split Point.
[4 ]/
Split Point
[5 ]
(STYLE)
[6 ]/
Split Point
[7 ]
(LEFT)
[8 ]
Split Point
(STYLE +
LEFT)
Split Point Split Point
(STYLE) (LEFT)
LEFT Voice
Chord section
section
Left-hand (LOWER) section
Sets the Split Point (STYLE). Press the [4 ] button or press the desired key on the key-
board while holding the [5 ] (KBD) button to specify the Split Point.
Sets the Split Point (LEFT). Press the [6 ] button or press the desired key on the keyboard
while holding the [7 ] (KBD) button to specify the Split Point.
NOTE
Split Point (LEFT) cannot be set lower than Split Point (STYLE).
Sets Split Point (STYLE) and Split Point (LEFT) to the same note. Rotate the Data dial or
press the desired key on the keyboard while holding the [8 ] (KBD) button to specify the
Split Point.
Chord + LEFT
Voice (Left-
hand) section
RIGHT 1, 2
Voices section
Right-hand (UPPER)
section
Split Point
(STYLE + LEFT)
RIGHT 1, 2 Voices
(Right-hand) section
PSR-S670 Owner's Manual
