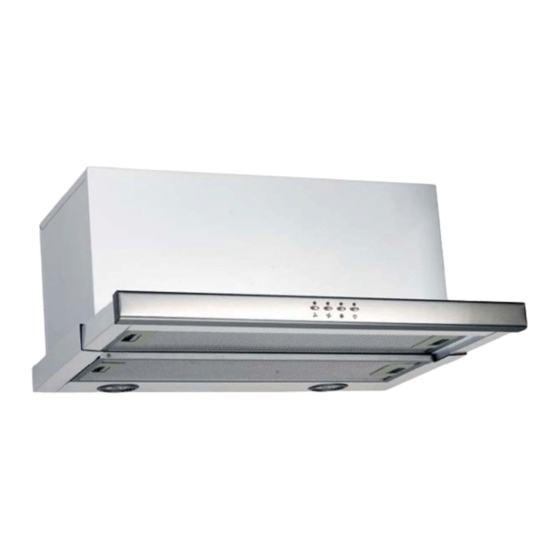

TEL06SS / TEL07SS
Cooker hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEL06SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic TEL06SS

Summary of Contents for Baumatic TEL06SS

  • Page 1 TEL06SS / TEL07SS Cooker hood...
  • Page 2 User Manual for your Baumatic TEL06SS / TEL07SS Cooker Hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood 8 – 9 TEL06SS TEL07SS Using your Baumatic cooker hood 10 - 11 Before first use To use your cooker hood 10 - 11 Cleaning your Baumatic cooker hood 12 –...

  • Page 4: Environmental Note

    Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood been disconnected...

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood TEL06SS PRODUCT DIMENSIONS APERTURE DIMENSIONS Height: 175 mm Width: 600 mm Width: 600 mm Depth: 194 mm (min) Depth: 306 mm (encased) 450 mm (extended) Your cooker hood is fitted with: o Slider control operation...

  • Page 9: Tel07Ss

    Electronic control operation o 3 x speeds o 2 x washable aluminium grease filters o 2 x light Extraction capacity: 750 m³/hr Optional extras: Pair Carbon filters recirculation All of the optional extras are available from the Baumatic Spares Department.

  • Page 10: Using Your Baumatic Cooker Hood

    Using your Baumatic cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.
  • Page 11 Light ON / OFF switch. This switch turns your cooker hood’s light on and off. Slide the switch to position 1 to turn the light on and position 0 to turn it back off. IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

  • Page 12: Cleaning Your Baumatic Cooker Hood

    Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.

  • Page 13: Maintenance

    Maintenance Removing and cleaning the metal filter o First remove the grease filter by pulling down on the handle and pulling it away from the cooker hood. o Soak the metal filters in hot water and washing up liquid for about an hour.

  • Page 14: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the metal filters by pulling down on the handle and pulling them away from the cooker hood. This will allow you access to the lamp area.

  • Page 15: Installation

    2) Hook the carbon filter over the pins that are located at the end of the motor. 3) Turn the carbon filter clockwise until you feel it latch onto the motor’s sides. 4) Replace the grease filters. o When replacing the carbon filter, follow the steps outlined above and turn the carbon filter anti-clockwise to unlatch it from the motor.

  • Page 16: Electrical Connection

    Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o If not supplied the power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

  • Page 17: Installing Your Cooker Hood

    then there should also be space to connect a ducting hose to the outside. o Carry out all necessary masonry work prior to the fitting of the cooker hood. o Ensure that all electrical connections are carried out by a suitably qualified person.
  • Page 18 IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED YOUR MAINS SUPPLY AFTER REST INSTALLATION PROCESS HAS BEEN COMPLETED. Wall installation NOTE: All the screws mentioned in this section come with your cooker hood. 1) Position the hood against the wall and mark the positions of 4 holes of 8 mm diameter on a suitable place and according to the centre distance of the hole on the back of the cooker hood.
  • Page 19 Installation into the underside of a kitchen cabinet 1) Drill holes of 4 mm diameter on the bottom of the cupboard you wish to hang the hood from in accordance with the diagram below: 2) Put the one way valve on the cooker hood and then install the hood on the bottom of the cupboard.

  • Page 20: Connecting To External Ducting

    The discharge outlet should have a cross section of at least 150 cm² (please note that the ducting hose is not supplied with the appliance but one can be obtained from the Baumatic Spares Department). o The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend.

  • Page 21: Extraction Mode Or Recirculation Mode

    correctly by selecting each speed and switching the light bulb on and off. Extraction mode or recirculation mode? IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. What is the difference between extraction and recirculation modes? In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting.

  • Page 22: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the power supply and whether you have selected any of the fan speeds.
  • Page 23 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 24: Contact Details

    United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Průmyslová zóna Sever 696 6 Bennet Road, 460 11 Liberec 11 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900...
