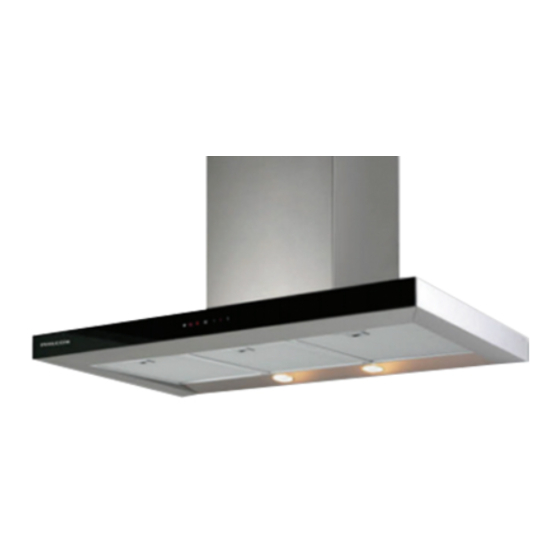

  • Page 1 BT16.4SS-HK BT19.4SS-HK Cooker Hood User Manual for your Baumatic...
  • Page 2 User Manual for your Baumatic BT16.4SS-HK 60 cm Chimney Hood BT19.4SS-HK 90 cm Chimney Hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Specifications of your cooker hood 8 – 10 BT16.4SS-HK 8 – 9 BT19.4SS-HK 9 - 10 Using your Baumatic cooker hood 10 - 11 Cleaning your Baumatic cooker hood The grease filter Maintenance 12- 14 Removing and cleaning the grease filter...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that the cooker hood removes odours from your kitchen, not steam. o Warning - Always ensure that the cooker hood been disconnected...

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood BT16.4SS-HK DIMENSIONS: Width (canopy): 600 mm Depth (canopy): 500 mm Height (with chimney) 440 mm – 820 mm DIMENSIONS OF CHIMNEY SECTION: 303 mm x 275 mm Your stainless steel cooker hood is fitted with:...

  • Page 9: Bt19.4Ss-Hk

    Optional Extra: 1 x S1 pair of carbon filters for air recirculation mode (available from the Baumatic Spares Department). BT19.4SS-HK DIMENSIONS: Width (canopy): 900 mm Depth (canopy): 500 mm Height (with chimney) 440 mm – 820 mm DIMENSIONS OF CHIMNEY SECTION:...

  • Page 10: Using Your Baumatic Cooker Hood

    1 x S1 pair of carbon filters for air recirculation mode (available from the Baumatic Spares Department). Using your Baumatic cooker hood To use your cooker hood o Make sure that it has been installed by a suitably qualified person,...

  • Page 11: Cleaning Your Baumatic Cooker Hood

    HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS...

  • Page 12: Maintenance

    Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on it. o Undo the side catches. o Soak the grease filters in hot water and washing up liquid for about an hour. o Rinse them off thoroughly with hot water. o Repeat the process if required.

  • Page 13: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the grease filters described on page 12). o Prior to touching the light bulbs ensure that they have cooled down.

  • Page 14: Fitting The Carbon Filters

    Fitting the carbon filter If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 15: Installation

    Installation IMPORTANT: Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

  • Page 16: Before Beginning Installation

    If you only find two wires in the main’s lead (blue and brown), then neither must be connected to the earth terminal. o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N”...

  • Page 17: Installing Your Cooker Hood

    o In addition check whether there is an electrical socket available, which will be accessible after the hood is mounted. If you are going to use the appliance in extractor mode, you should also ensure that there is space to connect a fumes discharge device to the outside.
  • Page 18 2) Position the hood against the wall that you are intending to install it on and mark the position of the support holes that are to be drilled (as shown in the figure below). 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B.
  • Page 19 4) Insert rawl plugs into all of the holes that you have drilled. 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood.

  • Page 20: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours.
  • Page 21 10) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurement of both sides of chimney section D on the wall with a pencil and then remove chimney section D. 11) Take the fixing bracket (E) and place it between the two pencil marks that you made in step 9 o Keeping the bracket in contact with the wall, use a pencil to...
  • Page 22 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.

  • Page 23: Completing The Installation

    Completing the installation If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 14. The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood.

  • Page 24: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Advice Line, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.

  • Page 25: Contact Details

    G/F. 3 – 7 Leighton Road Causeway Bay HONG KONG Telephone: +852 2834 2380 Fax: +852 2834 2311 Email: hkshowroom@baumatic.com Website: www.baumatic.hk...
