Psion Omnii Quick Start Manual

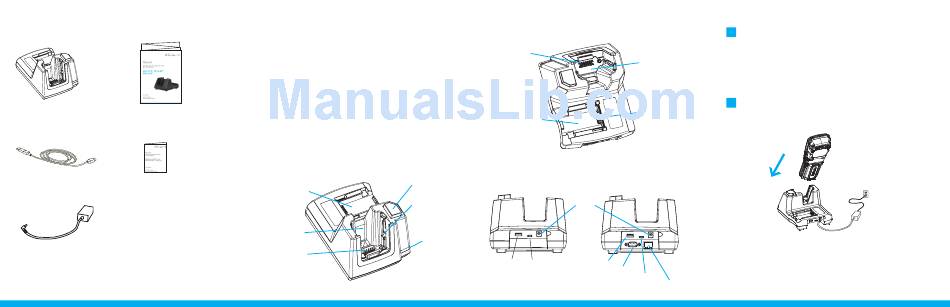

Contents oF the Box
Docking Station ST4002-1 or ST4003-1 This Guide
USB Micro-B to Type A cable Omnii Accessories
Regulatory & Warranty Guide
ST1050-1 AC Power Supply
(requires an IEC320-C13 power cord approved by Psion, sold separately)
Features
oPeratIon
The ST4002-1 and ST4003-1 Desktop Docking Stations both
feature:
> Fast charging of the Omnii internal battery.
> Fast charging of the spare battery pack.
> A Host USB port to connect peripherals such as a
printer, keyboard, etc.
> A Client USB port to connect the docking station to a PC.
The ST4003-1 Desktop Docking Station additionally provides:
> A DE9M serial port (unpowered).
> An RJ45 10Base-T Ethernet interface. Both these interfaces
are compatible with the USB to Ethernet/serial drivers in-
cluded in Omnii.
Front
Release button
Spare battery
charge well
Locking arm
Omnii compartment
LED indicator
Docking connector
Features
BaCk anD Battery CharGe Well
Docking connector
Omnii compartment
Battery connector
Spare battery
charge well
rear Ports
st4003-1
st4002-1
DC In port
Host USB Client USB Host USB port
port
port DE9M serial port
Client USB port
RJ45 Ethernet port

GettInG starteD

1 Connect the Docking Station to AC power.
Connect the ST1050-1 AC Power Supply's DC plug into the desk-
top docking station's DC jack. Then connect the Adaptor to an
AC power outlet using an IEC320-C13 power cord approved by
Psion (power cord sold separately).
Insert Omnii to charge its battery.
2
Slide Omnii into the Docking Station until it latches.
Note: Use only the universal AC power supply approved by Psion for
use with the Docking Station.
over
>
