Psion NEO PX3004 Quick Start Manual

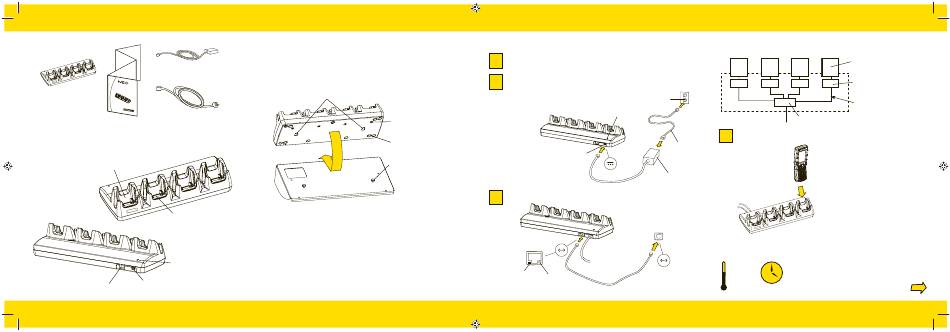

Contents of the box:
AC/DC adaptor
PX-3 004
Quad Dockin
g Statio n
Quic k Start
Novemb Guid e
The Quad Docking Station er 14, 2008
PN: 8000177 .A
ISO 9001
Quality Certified
Manageme nt System
Power cord
This Guide
(dependent on country
and order)
Features: Front, Back, And Ports
Charging compartment (quantity 4)
Docking connectors (quantity 4)
Power indicator
DC In connector
Ethernet connector
neo_quad_dock_qsg.indd 1 neo_quad_dock_qsg.indd 1
Mounting The Quad Docking Station
The Quad Docking Station can be fi xed to the optional
Wall Mount Bracket (model PX3014), or to another surface,
by two broad-headed screws.
Mounting holes (quantity 2)
Drain holes (quantity 4)
Rubber feet (quantity 4)
Mounting screws (quantity 2)
Note: The position of
the mounting holes is
indicated by markings on
the front and sides of the
Quad Docking Station.
Insert the screws into the holes on the base of the unit, then
slide the unit towards the back to secure it.
Getting Started
1
Mount the Quad Docking Station.
2
Connect the Docking Station to external power.
Note: The power indicator glows green AC outlet
when the Docking Station is connected
to external power. Power indicator
DC input connector
Note: Use only the universal AC power
supply approved by Psion Teklogix for
Power adaptor
use with the Quad Docking Station.
3
Connect the Docking Station to an Ethernet network.
Ethernet connector
Link LED
10 or 100base-T
Speed LED
Ethernet connector
The Ethernet connection in the Quad Docking Station
Quad Docking Station
10 or 100baseT Ethernet Ethernet hub
4
Insert one or more NEO hand-held computers.
Power
Note: During charge, the LED indicator on
cord
NEO is YELLOW until charging reaches 75%.
Between 75% and 95% the indicator fl ashes
Slide NEO into the Docking
GREEN slowly, and, above 95%, the indicator
Station until it latches.
is GREEN continuously.
Allow the NEO computers to charge for three hours
before fi rst use.
Note: Full battery performance is only reached after
the fi rst few charge/discharge cycles.
0 - 40 °C
32 - 104 °F 3 h
NEO hand-held computers
(up to 4)
USB to Ethernet converter (4)
Internal Ethernet connection
Over
