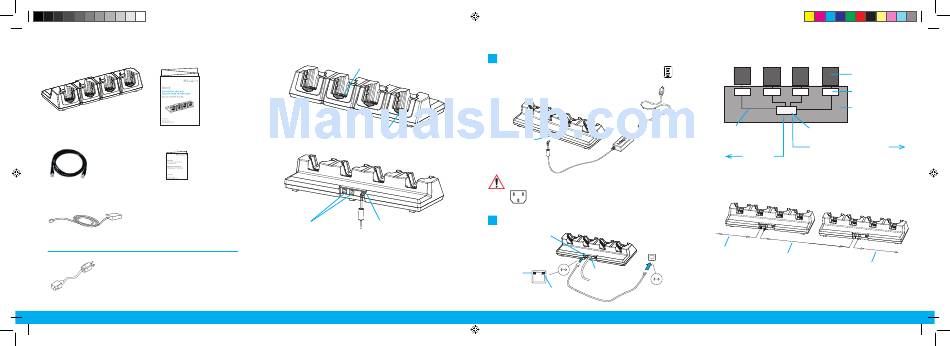

Psion ST4004 QUAD Quick Start Manual

ContEntS oF thE Box
ST4004 Quad Docking Station This Guide
Ethernet cable (0.9 metre) Omnii Accessories
Regulatory & Warranty Guide
AC/DC Adaptor
Country-specific power cord, sold separately
8000222A.indd 1
FEAturES
Front Charging compartment (quantity 4)
Docking connectors (quantity 4)
BACk
RJ45 Ethernet ports DC In connector
opErAtIon
The ST4004 features:
> Fast charging of the Omnii internal battery for 4 units.
> An RJ45 10/100 Base-T Ethernet interface compatible with
the USB to Ethernet drivers included in Omnii.
> An additional Ethernet interface for connecting more
docking stations downstream, up to 4 on the same network.
GEttInG StArtED
1 Connect the Docking Station to external power.
Note: Use only the universal AC power adaptor
AC outlet
approved by Psion for use with the Quad
Docking Station.
Power
cord
DC In connector
Power adaptor
Warning: Use an IEC320-C13 power cord approved by Psion,
with the ground pin connected to a proper earth-
grounded receptacle. Check with a qualified electrician
if you are uncertain of your receptacle grounding.
2 Connect the Docking Station to an Ethernet network.
Left-side RJ45 port
(Ethernet connector
to network)
Right-side RJ45 port
Activity LED
(Ethernet connector
(flashing green)
to other docks)
Link LED
10 or 100 Base-T
(solid amber)
Ethernet connector
The Ethernet connection in the Quad Docking Station
Omnii computers
(up to 4)
USB to Ethernet
converter (4)
Quad Docking Station
Ethernet hub
Internal Ethernet connection
10 or 100 Base-T Ethernet
Daisy-chained to other ST4004
Quad Docking Stations
To Ethernet
network
Maximum of four ST4004 Quad Docking Stations on one network cable
Ethernet
network Daisy chain cable
cable
Daisy chain cable
ovEr
