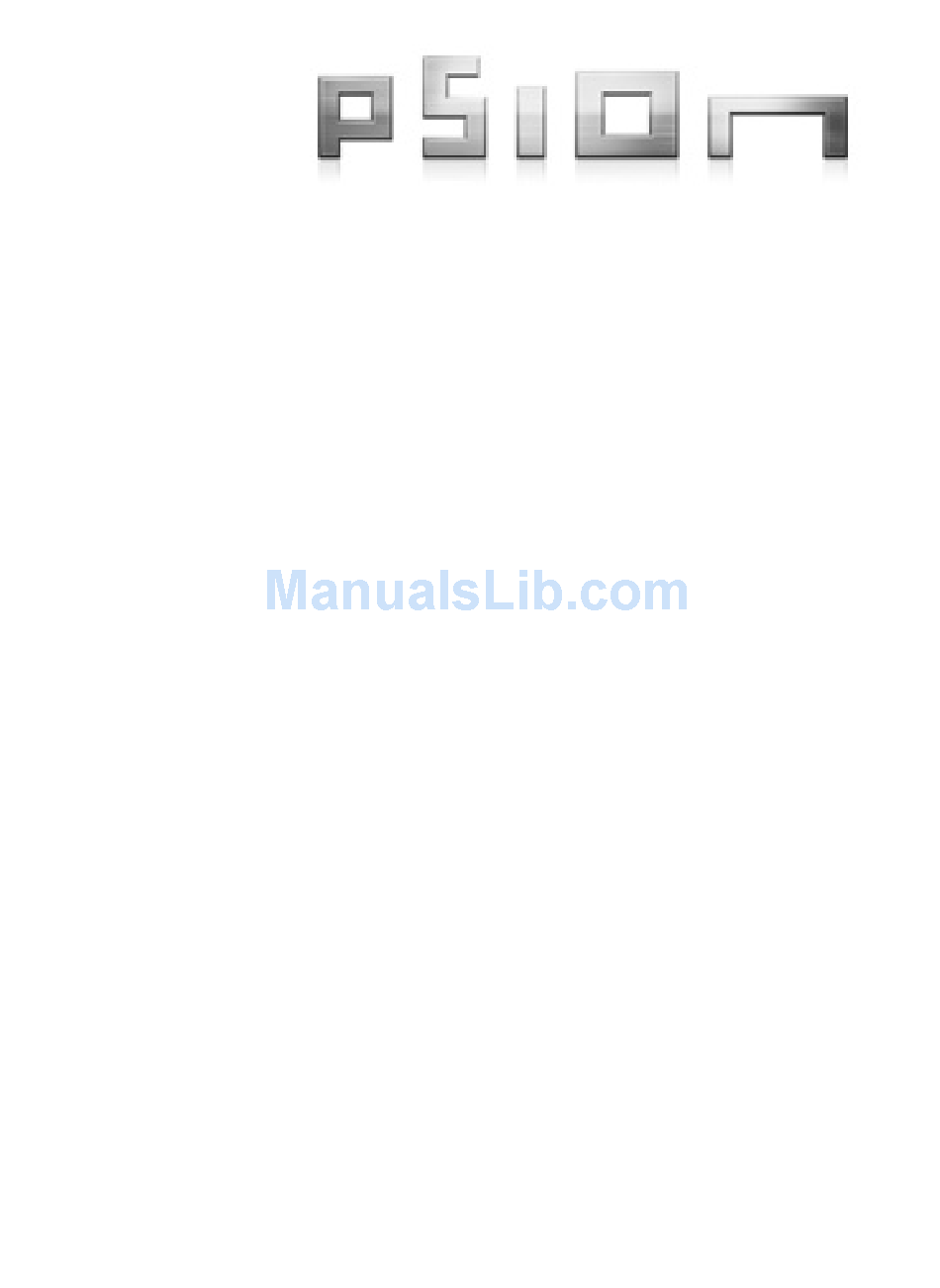

- Page 1 CH4000 IKÔN™ RUGGED PDA DESKTOP DOCKING STATION QUICK REFERENCE GUIDE September 27, 2011 PN 8000160.C ISO 9001 Certified Quality Management System...
- Page 2 © Copyright 2011 by Psion Inc. 2100 Meadowvale Boulevard Mississauga, Ontario, Canada L5N 7J9 http://www.psion.com This document and the information it contains is the property of Psion Inc. This document is not to be used, reproduced or copied, in whole or in part, except for the sole purpose of assisting in proper use of Psion manufactured goods and services by their rightful owners and users.
- Page 3 List of Approvals North America EMC: FCC part 15, subpart B; class B Europe EMC and Low Voltage Directives This equipment complies with the essential requirements of EMC Directive 2004/108/EC and Low Voltage Directive 72/ 23/EEC. CE Mark When used in a residential, commercial or light industrial environment the product and its approved UK and European peripherals fulfill all requirements for CE marking.
- Page 4 Return to Factory Warranty Psion provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the state- ment of Warranty and Product Support provided at: http://www.psion.com/warranty The warranty on Psion manufactured equipment does not extend to any product that has been tampered with, altered, or repaired by any person other than an employee of an autho- rized Psion service organization.
- Page 5 Restriction on Hazardous Substances (RoHS) Directive 2002/95/ec What is RoHS? The European Union has mandated that high environmental standards be met in the design and manufacture of electronic and electrical products sold in Europe, to reduce hazardous substances from entering the environment. The “Restriction on Hazardous Substances Directive (RoHS)”...
-
Page 6: Support Services And Worldwide Offices
Support Services and Worldwide Offices Psion provides a complete range of product support services to its customers worldwide. These services include technical support and product repairs. Technical Support For technical support in North America: Call Toll free:+1 800 387 8898 Option 3, Direct Dial: +1 905 813 9900 Ext. -
Page 7: Worldwide Offices
Worldwide Offices Company Headquarters Psion Inc. 2100 Meadowvale Boulevard Mississauga, Ontario, Canada L5N 7J9 Tel: +1 905 813 9900 Fax: +1 905 812 6300 E-mail: salescdn@psion.com North American Headquarters & U.S. Service Centre Psion Corporation 3000 Kustom Drive Hebron, Kentucky, USA 41048 Tel: +1 859 371 6006 Fax:... -
Page 9: Table Of Contents
1. Important Safety Summary......3 2. CH4000 Features........5 2.1 Operator Controls . - Page 10 Psion CH4000 Desktop Docking Station Quick Reference Guide...
-
Page 11: Important Safety Summary
• Do not operate the CH4000 or the AC adaptor if it has received a sharp blow, been dropped or otherwise dam- aged in any way; it should be inspected by qualified service personnel. - Page 12 0°C (32°F). Allow them to warm up to room temperature at least 30 minutes. • Do not use the CH4000 if after an overnight charge, the battery feels warmer than the charger housing. The CH4000 should be inspected by qualified service per- sonnel.
-
Page 13: Ch4000 Features
0°C and 40°C (32°F to 104°F). The CH4000 Desktop Docking Station (Figure 2.1 on page 6) is a desktop model designed to: • Fast charge the internal battery. -
Page 14: Operator Controls
Spare Battery Charge LED Stylus 2.1 Operator Controls The CH4000 has one operator control—the USB door on the rear, which switches from Type A to Type B (see “Operating the USB Dock” on page 8). 2.2 Indicators The front-mounted LED indicates the spare battery charge status. -
Page 15: Operation
72 hours. Doing so may damage the battery or reduce its charge capacity. • Install the battery in the rear slot of the CH4000 with the connector facing to the right. Slide the battery in and down to mate the connector. -
Page 16: Operating The Usb Dock
3.3 Operating the USB Dock The CH4000 Desktop Docking Station offers a rear-mounted host or device USB connection to the Ikôn. The Ikôn supports communication with low- and full-speed USB 1.1 compliant devices and hosts through the docking station. ®... -
Page 17: Linking An Ikôn To A Pc
• Use only mild detergent or soapy water on a slightly damp cloth to clean the CH4000. Avoid abrasive clean- ers, solvents or strong chemicals for cleaning. The plas- tic case is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. -
Page 18: Troubleshooting
• If not, the charger is defective and requires service. 5.2 Ikôn charge indicator LED stays off. When an Ikôn is docked into a powered CH4000 and its charge indicator LED stays off, there could be a problem with the Ikôn or with the docking station. Use an Ikôn with a prop- erly functioning charge indicator to isolate the problem. -
Page 19: Installed
• Disconnect and reconnect the DC adaptor, and check that the spare battery LED indicator flashes at power- • If the charge slot fails to charge the known working bat- tery, it is defective and requires service. Psion CH4000 Desktop Docking Station Quick Reference Guide...
