Dimensions; Installation Instructions - Whirlpool WHES30 Installation And Operation Manual

Demand controlled water softener.
Hide thumbs
  • Contents

Advertisement

Hard Water
To Outside
Faucets
Water Softener
Valve
To
Controller
Plug-in
Power
Supply
Valve Drain
Elbow
Valve Drain
Hose*
*Do not connect
the water softener
valve drain tubing
to the salt storage
tank overflow
hose.

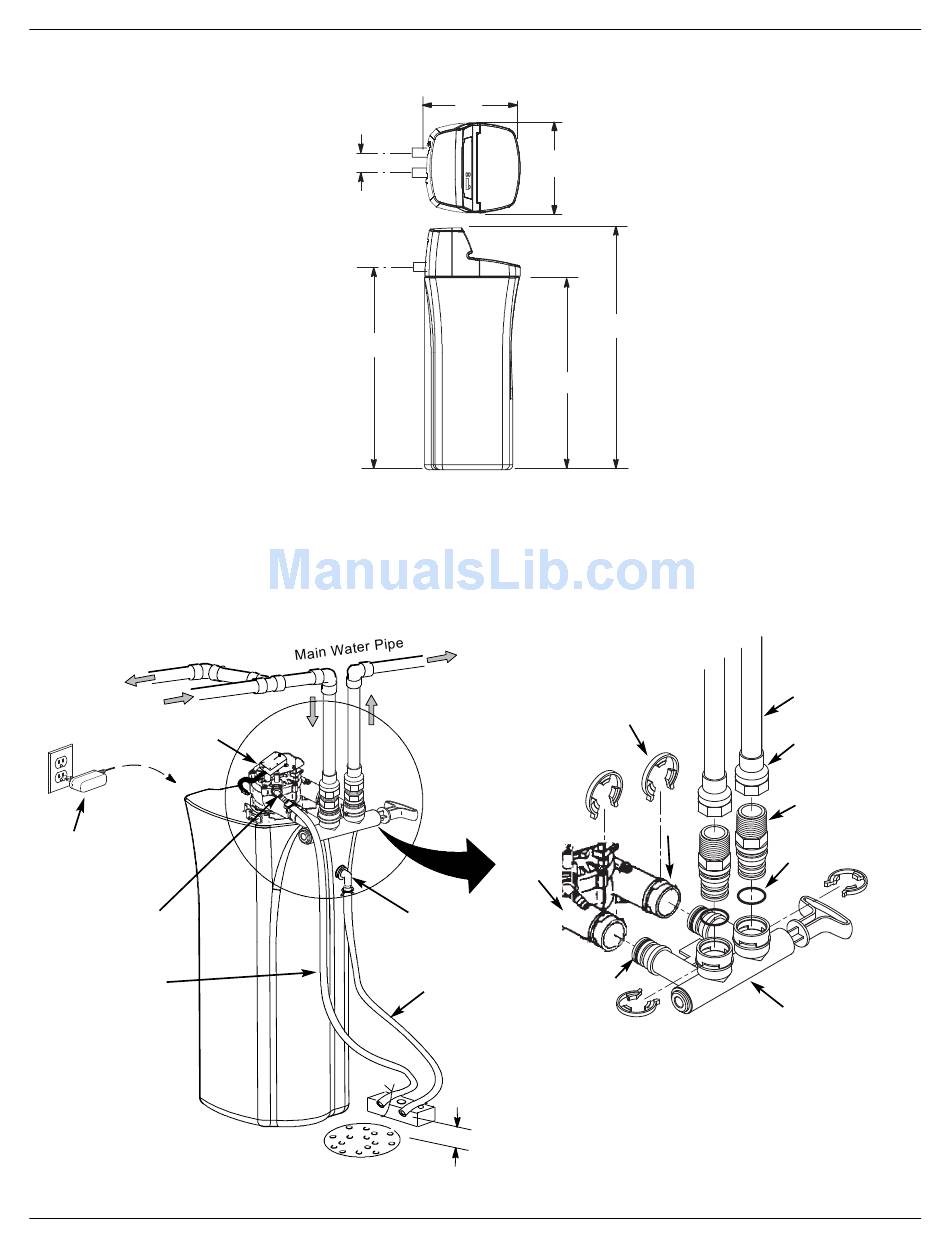

Dimensions

IN
3-3/8"
OUT
IN – OUT
36-1/2"

Installation Instructions

TYPICAL INSTALLATION
Overflow
Drain Elbow
Salt Storage
Tank Overflow
Hose*
Floor Drain
19"
18"
43-5/16"
35"
Conditioned
Water
Clips
Inlet
Lubricated
O-ring
Secure Valve Drain Hose
in place over Floor Drain
NOTE: See "Air Gap Requirements" section.
1-1/2"
NOTE: Water Softener shown with Salt Lid and
air gap
8
FIG. 8
Pipe
1" NPT Sweat
Adaptor (not
included)
1" NPT
Threaded
Adaptor
Outlet
O-ring
Single
Bypass Valve
Top Cover removed
FIG. 9
