ACCESSORIES

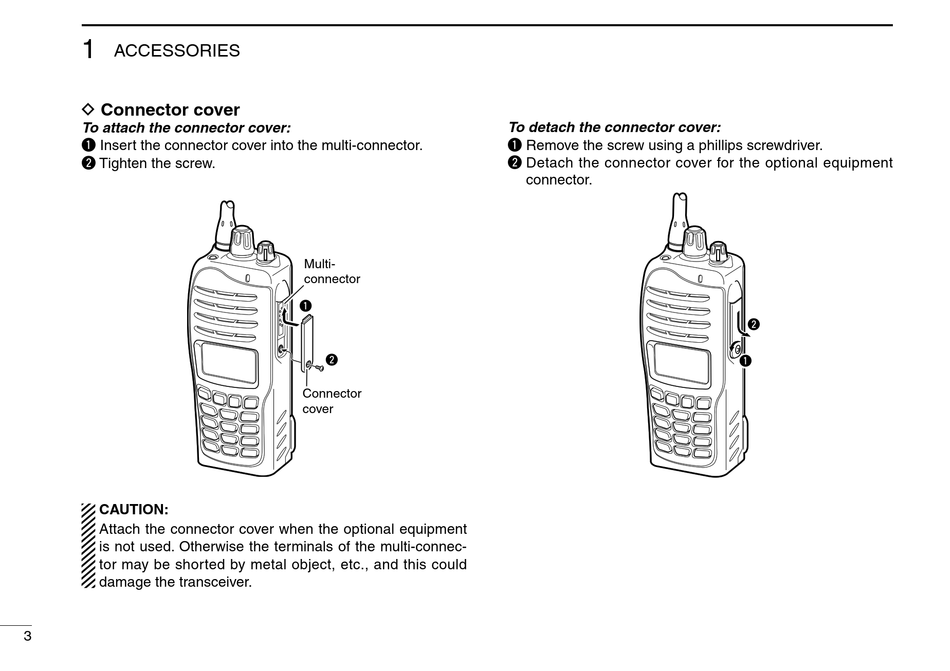

D Connector cover
To attach the connector cover:
q Insert the connector cover into the multi-connector.
w Tighten the screw.
CAUTION:
Attach the connector cover when the optional equipment
is not used. Otherwise the terminals of the multi-connec-
tor may be shorted by metal object, etc., and this could
damage the transceiver.
3
Multi-
connector
q
w
Connector
cover
To detach the connector cover:
q Remove the screw using a phillips screwdriver.
w Detach the connector cover for the optional equipment
connector.
w
q
