Icom ic-F3161 series Instruction Manual page 27

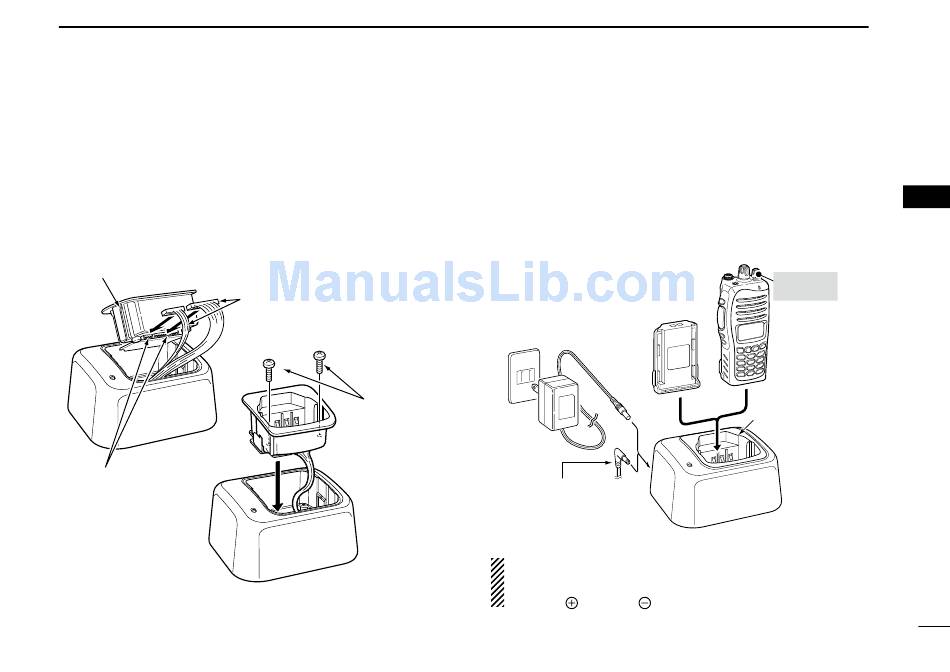

D AD-106 installation
The AD-106
charger adapter
119N or BC-121N before battery charging.
➥ Connect the AD-106 charger adapter and the BC-119N/
BC-121N as below, then install the AD-106 into the holder
space of the BC-119N or BC-121N with the supplied
screws.
AD-106
Sockets
This illustration shows
the BC-119N.
must be installed into the BC-
Connectors
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging time: Approximately 3.5 hours (with BP-232H)
The following items are additionally required.
• AD-106
charger adapter
• A power adapter (may be supplied with BC-119N depend-
ing on version) or the DC power cable (OPC-515L/CP-23L).
power adapter
Battery
(A different type, or no
pack
power adapter is supplied,
depending on the version.)
Optional OPC-515L* (for 13.8
V power source) or CP-23L
(for 12 V cigarette lighter
socket) can be used instead
of the power adapter.
CAUTION: NEVER connect the OPC-
*
515L to a power source using reverse
polarity. This will ruin the battery charger
White line: Black line :
(purchase separately)
Turn OFF
the power
Transceiver
AD-106 charger
adapter is installed
in BC-119N.
