VIESMANN
Installation and service instructions
for contractors

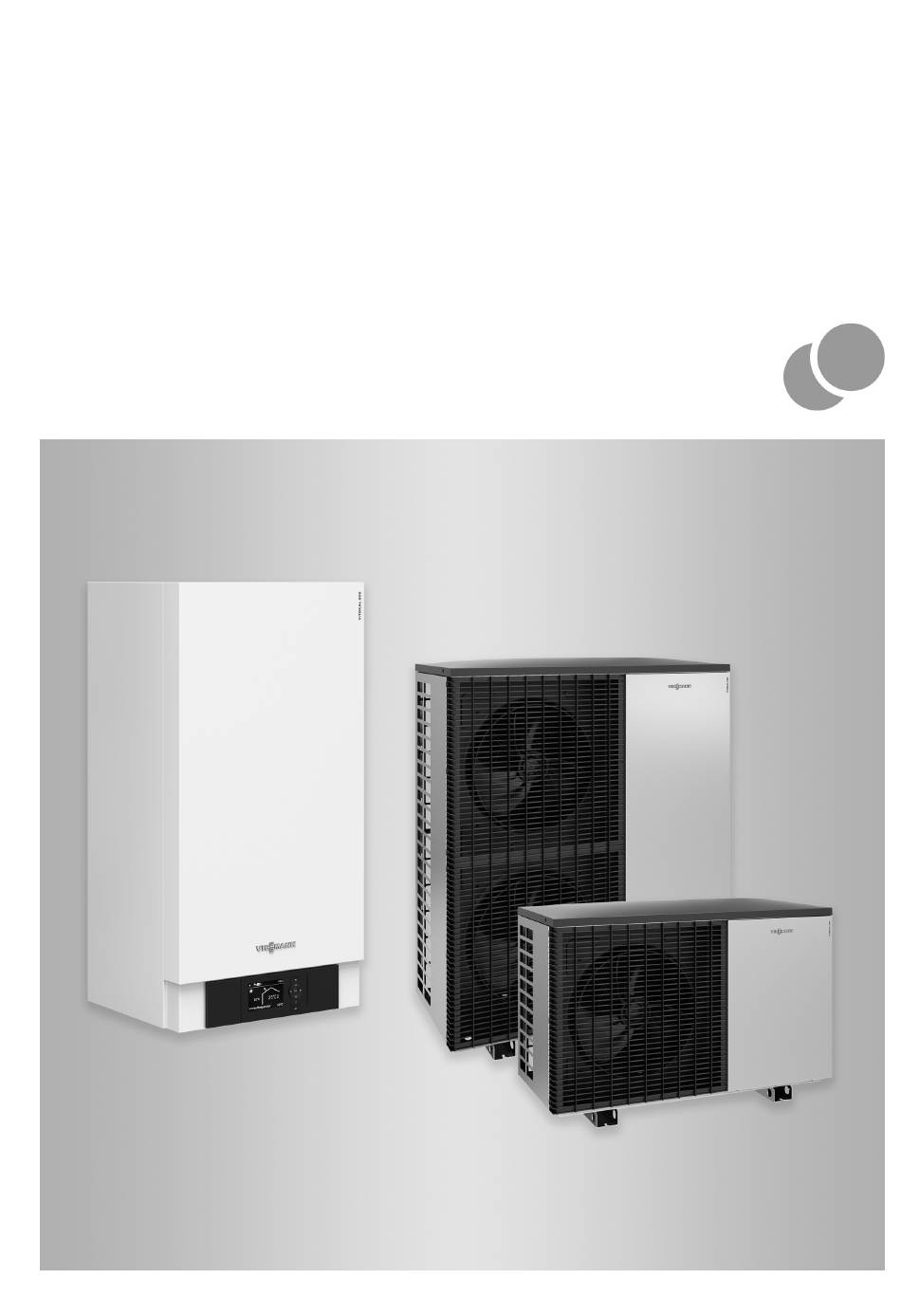

Vitocal 200-S
Type AWB(-M)/AWB(-M)-E 201.D
Air/water heat pump, split version for heating operation
Type AWB(-M)-E-AC 201.D
Air/water heat pump, split version for heating and cooling operation
VITOCAL 200-S
Please keep safe.
6150113 GB
5/2023
