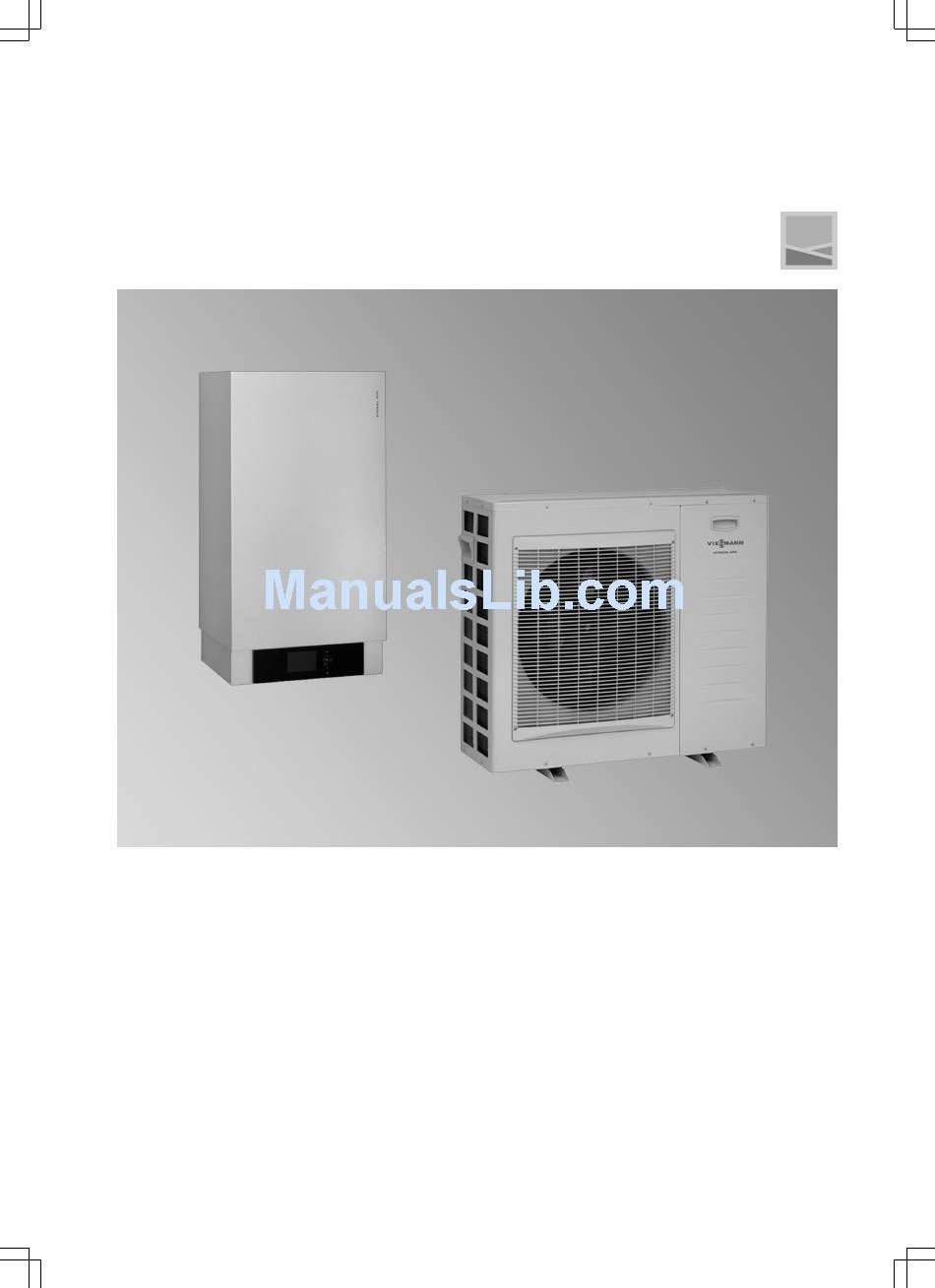

VIESMANN
Datasheet
For part no. and prices: see pricelist

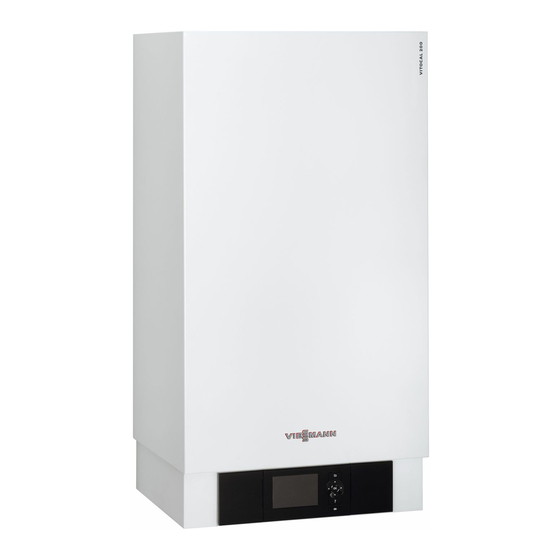

VITOCAL 200-S
Type AWB 201.B
Heat pump with electric drive in split design with external and
internal unit.
For central heating and DHW heating in heating systems.
5822 525 GB
5/2011
VITOCAL 200-S
Air/water heat pump, split version
VITOCAL 200-S
Type AWB-AC 201.B
Equipment level as per type AWB 201.B, with additional active
cooling function plus integral instantaneous heating water
heater.
3.0 to 10.6 kW
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viessmann VITOCAL 200-S
Summary of Contents for Viessmann VITOCAL 200-S
- Page 1 VIESMANN VITOCAL 200-S Air/water heat pump, split version 3.0 to 10.6 kW Datasheet For part no. and prices: see pricelist VITOCAL 200-S VITOCAL 200-S Type AWB 201.B Type AWB-AC 201.B Heat pump with electric drive in split design with external and Equipment level as per type AWB 201.B, with additional active...
- Page 2 ■ Internal unit with high efficiency heating circuit pump (to Energy Label A), heat exchanger, 3-way diverter valve, safety assembly and control unit; for the heating/cooling versions with an integral instan- taneous heating water heater. VIESMANN VITOCAL 200-S...
- Page 3 Specification Specification Vitocal 200-S Type AWB/AWB-AC 201.B04 201.B07 201.B10 201.B13 Output details, heating to EN 14511 (A2/W35 °C, 5 K spread) Rated heating output 3.00 5.60 7.70 10.60 Compressor frequency Fan speed Power consumption 0.91 1.73 2.20 3.25 Coefficient of performance ε (COP) in 3.27...
- Page 4 – Min. – Max. Sound power of the external unit Weighted total sound power level at A7 °C (±3 K)/W35 °C (±5 K) – At rated heating output dB(A) Measurements with reference to EN 12102/EN ISO 9614-2 VIESMANN VITOCAL 200-S...
- Page 5 Specification (cont.) Internal unit dimensions A Cable entry <42 V B Cable entry 400 V~/230 V~, >42 V VIESMANN VITOCAL 200-S...
- Page 6 For type AWB-AC 201.B04, a reduction from 16 to 12 mm is required downstream from the internal unit connection (reducer ⅞ to ¾ supplied). DHW cylinder flow (heating water side) G 1¼ Heating water return and DHW cylinder return G 1¼ Heating water flow G 1¼ VIESMANN VITOCAL 200-S...
- Page 7 Specification (cont.) External unit dimensions Type AWB/AWB-AC 201.B04 VIESMANN VITOCAL 200-S...
- Page 8 Specification (cont.) Type AWB/AWB-AC 201.B07 1040 VIESMANN VITOCAL 200-S...
- Page 9 Specification (cont.) Types AWB/AWB-AC 201.B10 and B13 VIESMANN VITOCAL 200-S...
- Page 10 Subject to technical modifications. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com VIESMANN VITOCAL 200-S...
