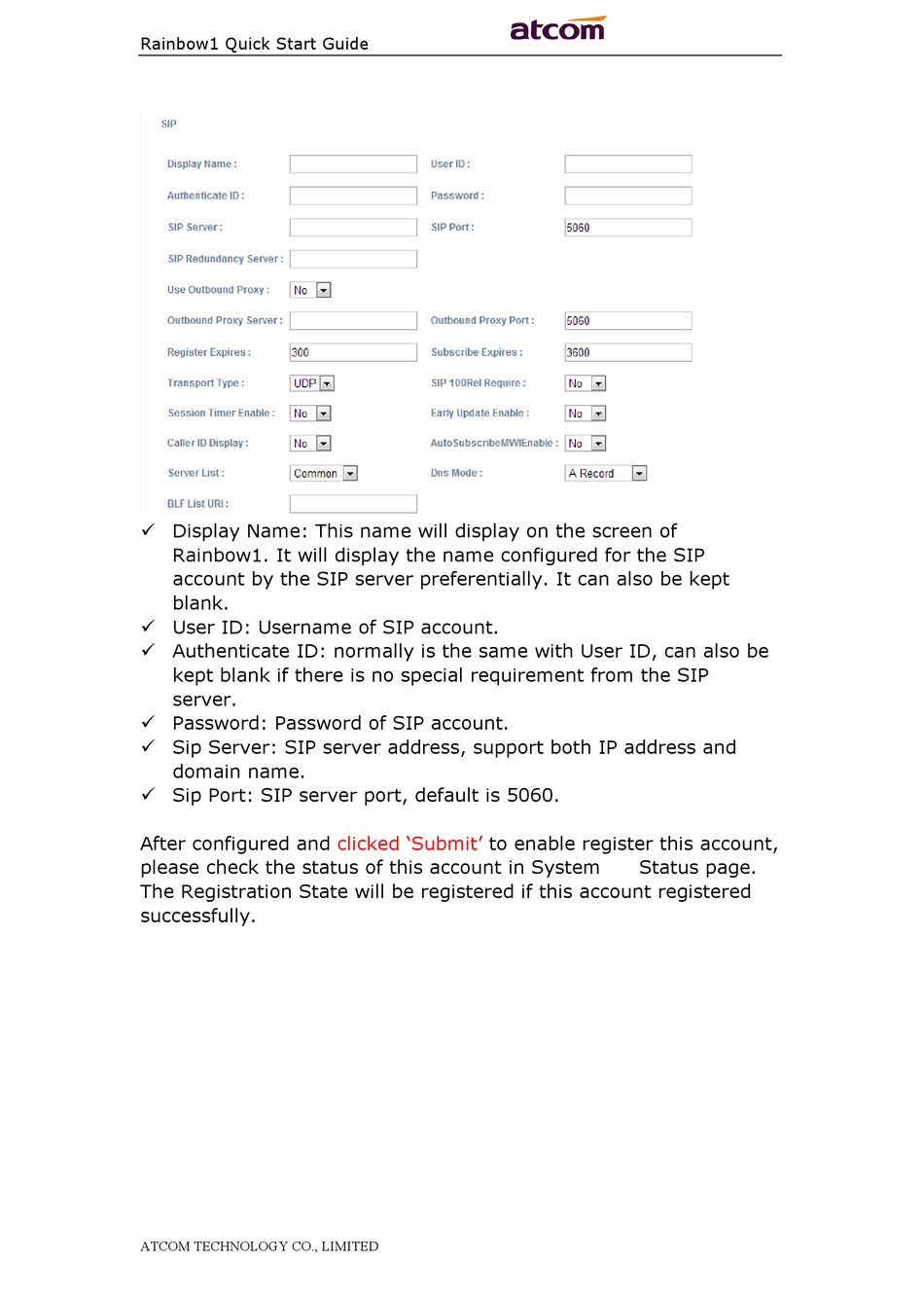

ATCOM Rainbow1 Quick Start Manual page 12

Rainbow1 Quick Start Guide
 Display Name: This name will display on the screen of
Rainbow1. It will display the name configured for the SIP
account by the SIP server preferentially. It can also be kept
blank.
 User ID: Username of SIP account.
 Authenticate ID: normally is the same with User ID, can also be
kept blank if there is no special requirement from the SIP
server.
 Password: Password of SIP account.
 Sip Server: SIP server address, support both IP address and
domain name.
 Sip Port: SIP server port, default is 5060.
After configured and
please check the status of this account in System
The Registration State will be registered if this account registered
successfully.
ATCOM TECHNOLOGY CO., LIMITED
clicked 'Submit' to enable register this account,
Status page.
