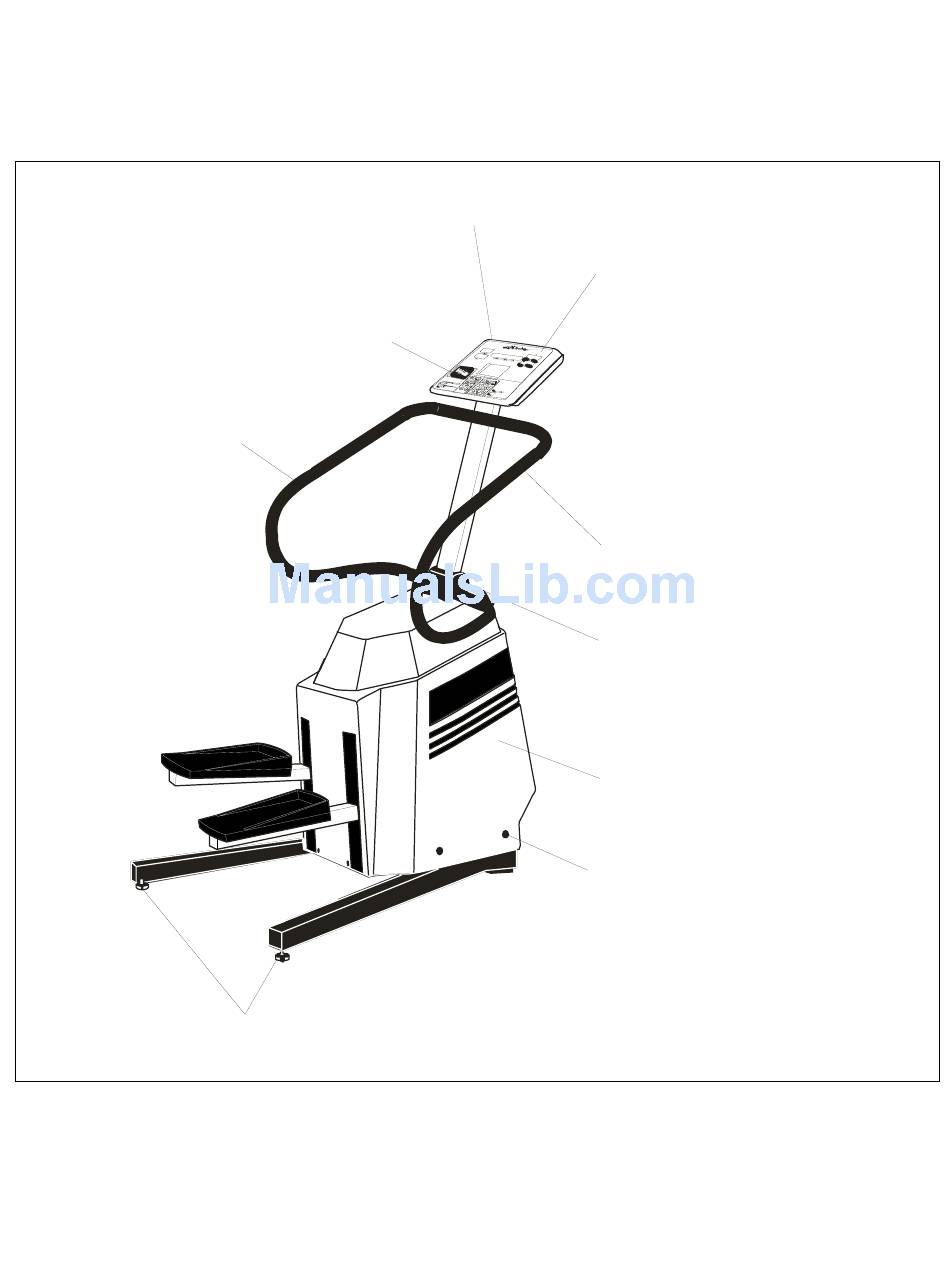

LS-5500C
STAIRCLIMBERS
Console Assembly
AK24-00436-0001 Eng/Eng
AK24-00436-0002 Ger/Met (R&R only)
AK24-00436-0003 Eng/Met
AK24-00436-0006 Itl/Met (R&R only)
AK24-00436-0009 Frn/Met (R&R only)
AK24-00436-0010 Dut/Met (R&R only)
AK24-00436-0011 Spn/Met (R&R only)
AK24-00436-0007 Jap/Met (R&R only)
Left Handle
0K24-01502-0002
Leg Leveler (2)
0017-00009-0796
Console Case
0K18-01243-0001
1 of 3
GK24-00015-XXXX
Overlay Bezel Assemblies
AK24-00437-0001 W/C W/FT Eng.
AK24-00437-0002 W/C N/FT Ger/Met
AK24-00437-0003 W/C /FT Eng/Met (NLA)
N
AK24-00437-0004 W/C /FT Frn/Met (NLA)
N
AK24-00437-0005 W/C /FT Spn/Met (NLA)
N
AK24-00437-0006 W/C /FT Itl/Met (NLA)
N
AK24-00437-0007 W/C /FT Jap/Met (NLA)
N
AK24-00437-0010 W/C /FT Dut/Met (NLA)
N
AK24-00437-0012 W/CL W/FT Ger/Met (NLA)
AK24-00437-0013 W/CL W/FT Eng/Met (NLA)
AK24-00437-0014 W/CL W/FT Frn/Met (NLA)
AK24-00437-0015 W/CL W/FT Spn/Met (NLA)
AK24-00437-0016 W/CL W/FT Itl/Met (NLA)
AK24-00437-0017 W/CL W/FT Jap/Met (NLA)
AK24-00437-0020 W/CL W/FT Dut/Met (NLA
Right Handle
0K24-01502-0001
Boot
0K24-01515-0000
Shroud Assembly
AK24-00406-0000
Hardware Bag
SK24-00435-0000
rev. 04/13/06
