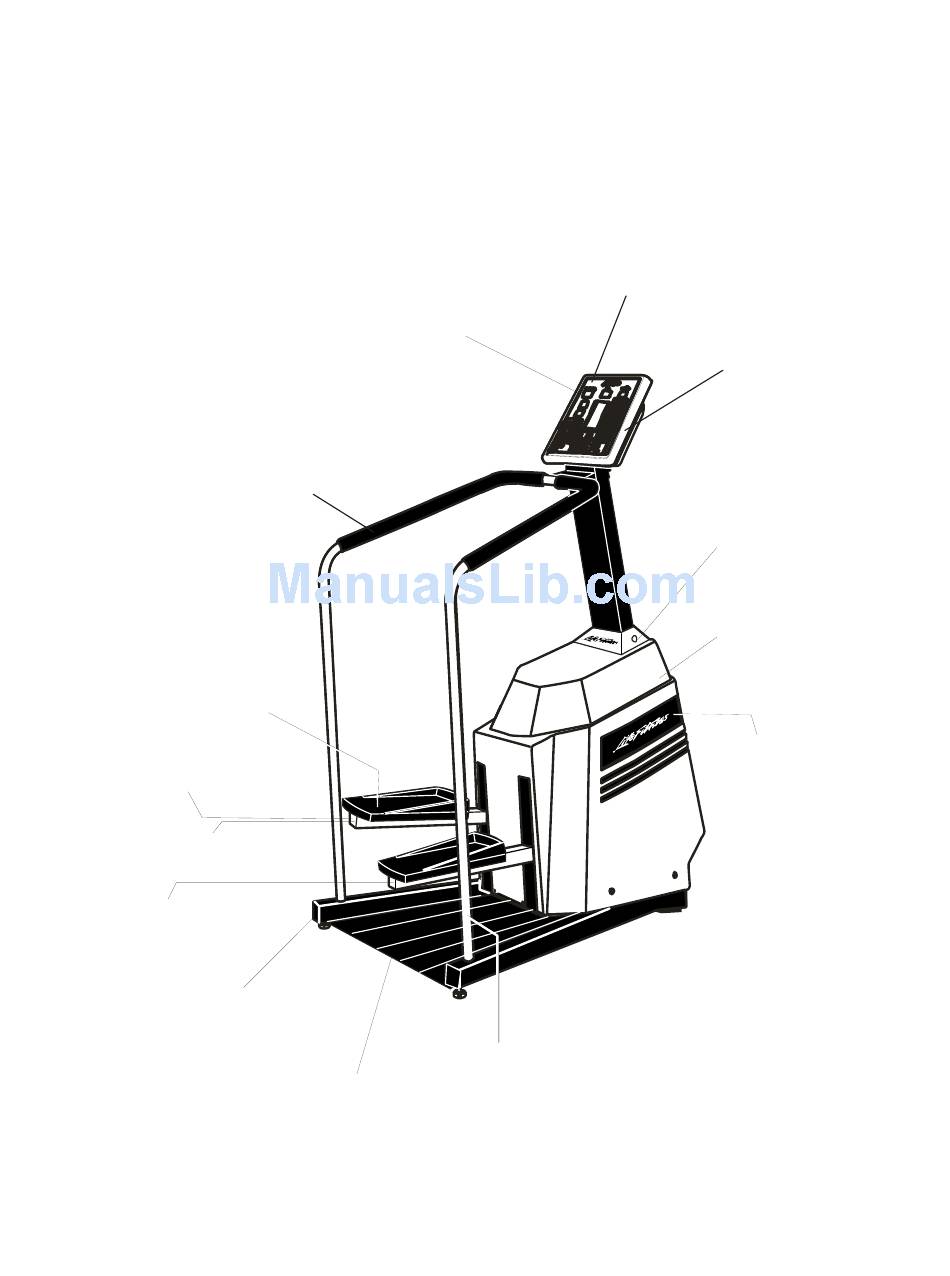

LS-9500HR
STAIRCLIMBER
Molded Handle (NLA)
0K24-02005-0000
Foot Pedal (2)
0K53-01027-0001
Pedal Lever Assembly, Left (NLA)
AK24-00049-0004
Endcap
0K24-01015-0000
Pedal Lever Assembly, Right
AK24-00049-0003
Endcap
0K14-01305-0000
Console Assembly
AK24-00252-0001 Eng/Eng
AK24-00252-0002 Ger/Met - R&R only
A
K24-00252-0003 Eng
/Met
A
K24-00252-0004 Frn/Eur/Met - R&R only
AK24-00252-0005 Spn/Eur/Met - R&R only
AK24-00252-0006 Itl/Met - R&R only
AK24-00252-0007 Jap/Met - R&R only
AK24-00252-0009 Dut/Met - R&R only
Drip Tray
SK24-00048-0001
- R&R only
Vertical Handle, Right/Left
0K24-01483-0000
1 of 3
GK24-00020-XXXX
SN: 142872-146748
Overlay Bezel
AK24-00253-0001 Eng/Met
AK24-00253-0002 Ger/Met (NLA)
A
K24-00253-0004
Frn/Eur/Met
A
K24-00253-0005 Spn/Eur/Met (NLA)
AK24-00253-0006 Itl/Met (NLA)
AK24-00253-0007 Jap/Met (NLA)
AK24-00253-0009 Dut/Met (NLA)
DSP Heart Rate
GK46-00002-0009
Console Case
0K24-01401-0000
Boot w/Decal
AK24-00259-0000
Shroud w/Decal (NLA)
AK24-00256-0001
Decal
Right
0K24-02020-0001
Left
0K24-02020-0002
rev. 09/12/05

Advertisement

loading

Related Manuals for Life Fitness LS-9500HR

Summary of Contents for Life Fitness LS-9500HR

  • Page 1 LS-9500HR STAIRCLIMBER Console Assembly AK24-00252-0001 Eng/Eng AK24-00252-0002 Ger/Met - R&R only K24-00252-0003 Eng K24-00252-0004 Frn/Eur/Met - R&R only AK24-00252-0005 Spn/Eur/Met - R&R only AK24-00252-0006 Itl/Met - R&R only AK24-00252-0007 Jap/Met - R&R only AK24-00252-0009 Dut/Met - R&R only Molded Handle (NLA)
  • Page 2 LS-9500HR STAIRCLIMBER Main Cable AK24-00228-0000 Alternator w/Flywheel SK24-00201-0000 Alternator Brushes 0017-00009-0895 Poly-V Belt 0K24-01499-0000 Upper Spring (2) 0K24-01127-0002 Spring Mounting Hardware Screw 0017-00101-1096 Washer (2) 0017-00104-0189 0017-00103-0019 Transformer AK24-00162-0000 Power Module SK24-00234-0001 Line Cord AK01-00015-0000 Strain Relief 0017-00042-0758 Power Control Board...
  • Page 3 LS-9500HR STAIRCLIMBER Clutch Bearing, Left SK24-00036-0006 Bearing Bracket Assembly, Left (NLA) SK24-00124-0002 Resistor Assembly AK24-00112-0000 Bearing Bracket Assembly, Right (NLA) SK24-00124-0001 Idler Sprocket/Bearings SK24-00045-0005 3 of 3 GK24-00020-XXXX SN: 142872-146748 Clutch Bearing, Right SK24-00036-0005 Oiler Assembly (NLA) AK24-00144-0000 0017-00009-0831 rev. 09/12/05...
