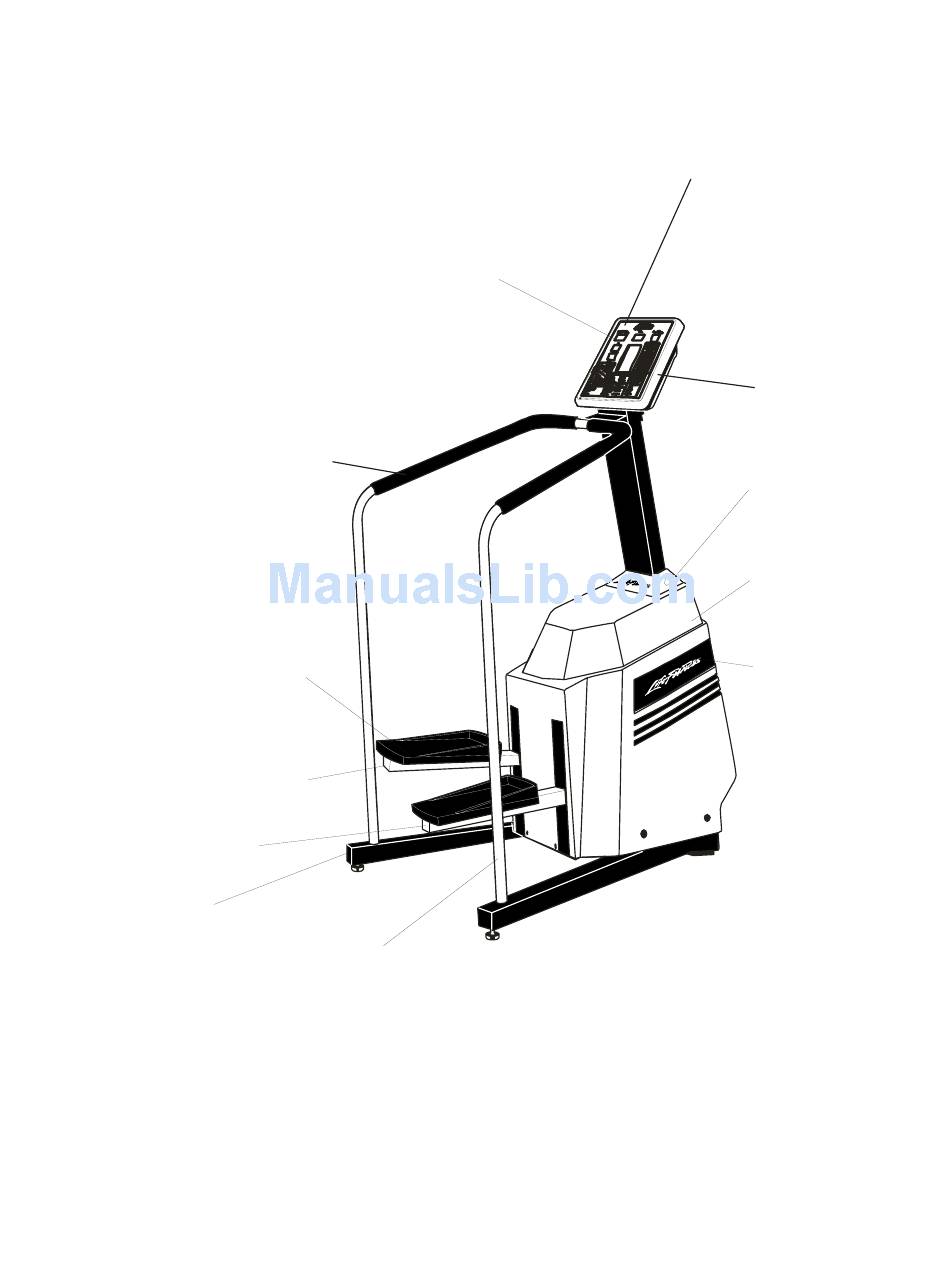

LS-7500
STAIRCLIMBERS
Molded Handle
0K24-01424-0000
Foot Pedal (2)
0K24-01001-0001
Pedal Endcap
0K24-01015-0000
Pedal Lever
Assembly, Left (NLA)
AK24-00049-0004
Pedal Lever
Assembly, Right
AK24-00049-0003
Endcap
0K14-01305-0000
Console Assembly
SK24-00206-0001 Eng/Met - R&R only
SK24-00200-0002 Ger/Met - R&R only
S
K24-00200-0003 Eng
S
K24-00200-0015 Spn/Met
SK24-00200-0012 Eng/Met - R&R only
Vertical Handle
0K24-01379-0000
1 of 3
SN: 200970 - 203875
/Met
GK24-00007-XXXX
Overlay Bezel
AK24-00432-0001 Eng/Met - NLA
AK24-00432-0002 Ger/Met - NLA
A
K24-00432-0005 Sp
A
K24-00432-0013 Eng/Met
AK24-00432-0015 Spn/Met
Console Case
0K18-01243-0001
Battery Door
0E09-00903-0001
Boot w/Decal
AK24-00163-0000
Shroud w/Decal
AK24-00167-0001 (NLA)
Decal Set
0K24-01369-0000
rev. 07/05/05
n/Met
- NLA
- NLA
- NLA
