Steamfast SF-420 User Manual

Contemporary fabric steamer
Hide thumbs Also See for SF-420:

Advertisement

Quick Links

Contemporary
Fabric Steamer
MODEL SF-420
User's Guide
Please read all instructions before use.
KEEP YOUR RECEIPT FOR WARRANTY PURPOSES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steamfast SF-420

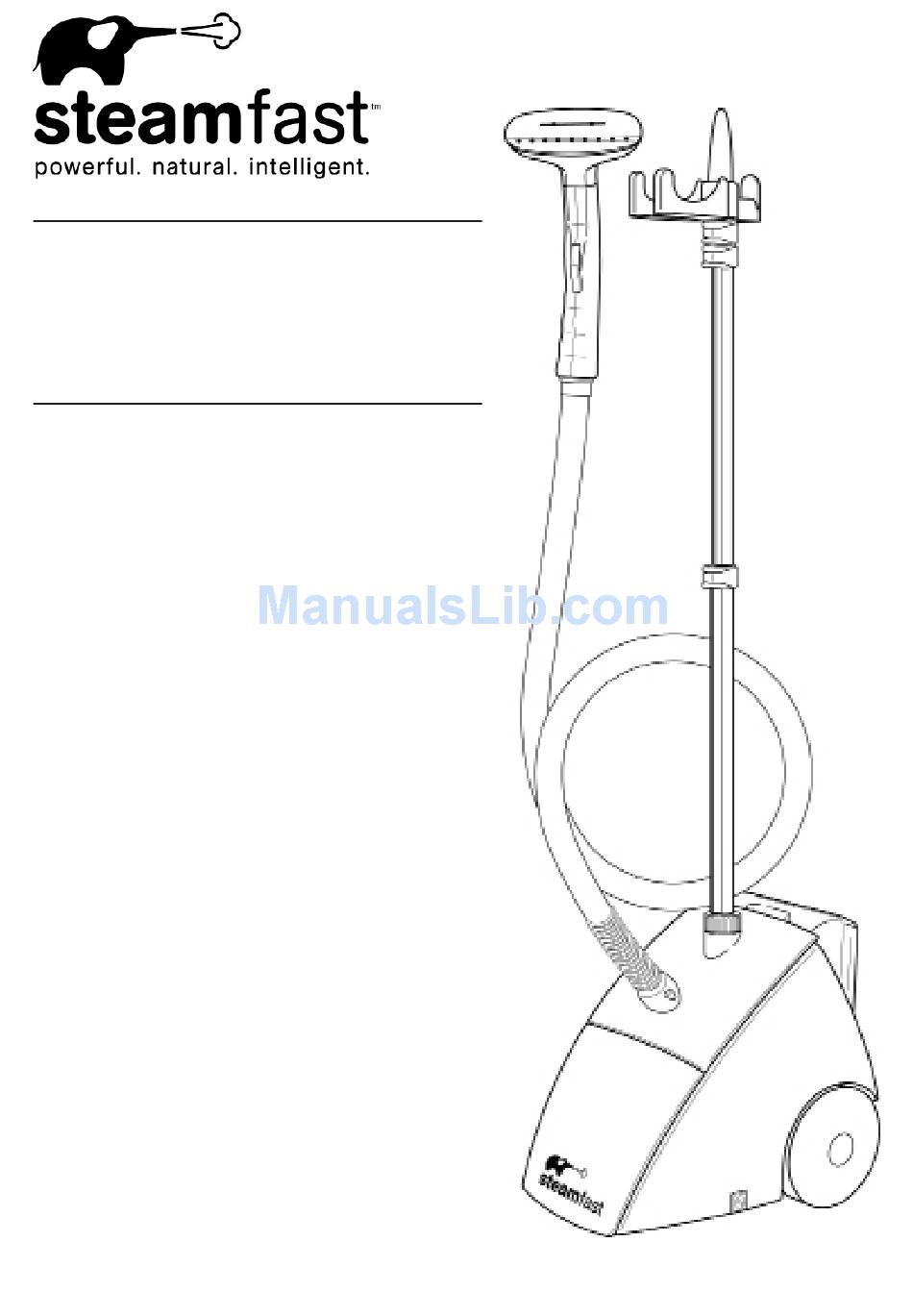

  • Page 1 Contemporary Fabric Steamer MODEL SF-420 User’s Guide Please read all instructions before use. KEEP YOUR RECEIPT FOR WARRANTY PURPOSES.
  • Page 2: Important Safety Instructions

    7. Do not operate unit with a damaged power cord or if the unit has been dropped or damaged. To avoid risk of electrical shock, do not disassemble unit; contact Steamfast Consumer Service for examination and repair. Incorrect reassembly can cause a risk of electrical shock when unit is used.
  • Page 3 11. This unit is only meant to be used with recommended Contemporary Fabric Steamer (model SF-420) accessories. Using other types of attachments may cause damage to unit or injury. 12. If Lighted On/Off Switch does not illuminate when unit is plugged in and Switch is set to “ON”...
  • Page 4: Product Information

    Product Information The following features and accessories are included with your Contemporary Fabric Steamer. Carefully inspect the packing material for all parts listed below. To obtain possible missing parts, refer to Product Support on Page 14 of this manual for Consumer Service contact information. UNIT FEATURES &...
  • Page 5 • The Pole Top (1) connects to the top section of the Telescopic Pole. The Pole Top is comprised of the Clothes Hanger Hook and Steam Nozzle Cradle. • The Clothes Hanger Hook (1 ) is designed to support garments hung from a clean rust-free hanger for easy, accessible steaming.
  • Page 6 Assembling Your Contemporary Fabric Steamer TELESCOPIC POLE The Telescopic Pole is made up of four sections (FIGURE 1): • TOP (SECTION 1) • MIDDLE-TOP (SECTION 2) • MIDDLE-BOTTOM (SECTION 3) • BOTTOM (SECTION 4) FIGURE 1 SECTIONS 1, 2 & 3 are adjustable in length. By using the three extension locks, these sections may be extended or retracted in order to achieve the desired length.
  • Page 7 CONNECTING POLE TOP 1. Look at underside of Pole Top, and locate two guide tabs (FIGURE 3-A). 2. Align Pole Top guide tabs with guide grooves on SECTION 1 of Telescopic Pole. Be sure to orient Pole Top so that Steam Nozzle Cradle faces toward front of unit.
  • Page 8 FIGURE 5 Your new SF-420 Contemporary Fabric Steamer is now fully assembled and ready for use. Please continue reading this manual for instructions on using the Contemporary Fabric Steamer, as well as directions for proper cleaning, storage and troubleshooting.
  • Page 9: Filling With Water

    Using Your Contemporary Fabric Steamer FILLING WITH WATER 1. Remove Water Tank from main unit. 2. Holding Water Tank upside-down, unscrew and remove Valve Cap by rotating it in a counter- clockwise direction (FIGURE 6-A). 3. Fill Water Tank with water through Valve Cap hole. Refer to guidelines on Water Tank to fill it with the appropriate amount of water, determined either by desired steam time (15, 30, or 45 minutes) or water volume (500, 750, 1,000 or 1,250 ml.).
  • Page 10: Operating Your Unit

    Using Your Contemporary Fabric Steamer OPERATING YOUR UNIT NOTE: Be sure that Water Tank has been filled (Page 9) and, if desired, the Fabric Brush or Lint Remover is already connected (Page 8) before following these steps. 1. For first-time use, remove protective plastic cover that is shipped on electrical plug.
  • Page 11 FABRIC STEAMING STEAMING GARMENTS: 1. Place garment on a clean, rust-free clothes hanger. 2. Place hanger (with garment) on Clothes Hanger Hook (FIGURE 8-A). CAUTION: Use care when handling garments on the Clothes Hanger Hook. Pulling on the garment with too much force may cause the unit to tip over. 3.
  • Page 12: Storage & Care

    Storage & Care PROPER STORAGE Preparing your Contemporary Fabric Steamer for storage is quick and simple. When you have finished your steaming tasks, follow the steps listed below. 1. Set Lighted On/Off Switch to “OFF” position, and unplug power cord from electrical outlet. 2.
  • Page 13: Product Support

    Water level in Water Reservoir is running low. on Page 9 to refill unit with water. Refer to Mineral Build-up section on Mineral build-up in unit. Page 12 for cleaning procedure. PRODUCT SPECIFICATIONS MODEL SF-420 VOLTAGE 120V WATTAGE 1500W AMPERAGE 12.5A WATER CAPACITY 54 OZ.
  • Page 14: Consumer Services

    For problems with your Contemporary Fabric Steamer, please refer to the troubleshooting guide located above. Additional inquiries should be directed to our consumer support services through our Web site, www.steamfast.com. If you do not have internet access, you may also contact our Consumer Service Department by telephone, at 1-800-711-6617.
  • Page 15: Warranty Information

    Steamfast for warranty service. You may be required to provide the original sales receipt. For your records: Staple or attach your original sales receipt to this Owner’s Guide. Please also write your Product’s serial number below (located on product specs decal).
  • Page 16 évaluer ce produit en ligne www.steamfast.com/reviews Steamfast 415 East 13th, Andover, KS 67002 1-800-711-6617 www.steamfast.com consumerservice@steamfast.com V110512...
