Steamfast SF-540 Owner's Manual

Deluxe fabric steamer
Hide thumbs Also See for SF-540:
Table of Contents

Advertisement

Quick Links

Download this manual
SF-540
D E L U X E F A B R I C S T E A M E R
O W N E R ' S G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steamfast SF-540

Summary of Contents for Steamfast SF-540

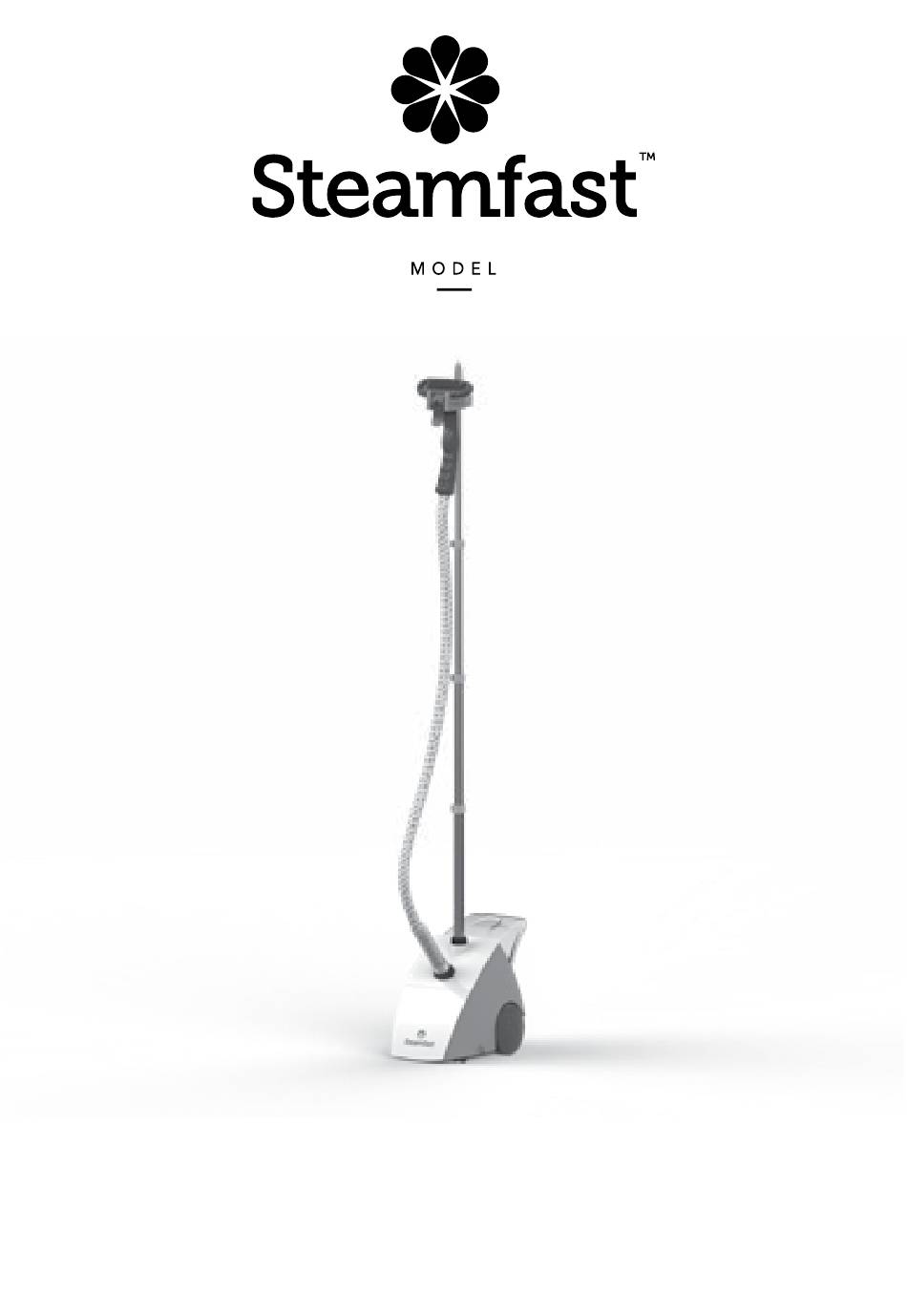

  • Page 1 SF-540 D E L U X E F A B R I C S T E A M E R O W N E R ’ S G U I D E...

  • Page 2: Important Safety Instructions

    8. Do not operate unit with a damaged power cord or if the unit has been dropped or damaged. To avoid risk of electrical shock, do not disassemble unit; contact Steamfast Consumer Service for examination and repair. Incorrect reassembly can cause a risk of electrical shock when unit is used.
  • Page 3 Steamfast Consumer Service at 1-800-711-6617. Please refer to our website for the most current version of our owner’s guide.

  • Page 4: Product Information

    Product Information The following features and accessories are included with your Deluxe Fabric Steamer. Carefully inspect the packing material for all parts listed below. To obtain possible missing parts, refer to Product Support on Page 14 of this manual for Consumer Service contact information. UNIT FEATURES &...
  • Page 5 • The Steam Nozzle (1) emits the flow of hot, penetrating steam produced by the Boiler. The Fabric Brush connects to the Steam Nozzle. • The Pole Top (2) connects to the top section of the Telescopic Pole. The Pole Top is comprised of the Steam Nozzle Cradle and Hanger Hook.
  • Page 6 Assembling Your Deluxe Fabric Steamer TELESCOPIC POLE The Telescopic Pole is made up of four sections (FIGURE 1): • TOP (SECTION 1) • MIDDLE-TOP (SECTION 2) • MIDDLE-BOTTOM (SECTION 3) • BOTTOM (SECTION 4) SECTION 1 SECTION 2 SECTION 3 SECTION 4 (TOP) (MIDDLE-TOP)
  • Page 7 CONNECTING POLE TOP 1. Look at underside of Pole Top, and locate two guide tabs (FIGURE 3-A). 2. Align Pole Top guide tabs with guide grooves on SECTION 1 of Telescopic Pole. NOTE: It is recommended to orient Pole Top so Nozzle Cradle faces forwards towards front of the unit.
  • Page 8 CONNECTING HANGER 1. Locate vertical arm on top of Hanger. Locate the side with a raised rim. 2. Align Hanger arm with Pole Top Hanger Hook. Slot raised rim around top of Hanger Hook. 3. Press downward gently to lock Hanger onto Hanger Hook (FIGURE 5).

  • Page 9: Filling With Water

    Using Your Deluxe Fabric Steamer FILLING WITH WATER 1. Remove Water Tank from main unit. 2. Holding Water Tank upside-down, unscrew and remove Valve Cap by rotating it in a counter- clockwise direction (FIGURE 7-A). 3. Fill Water Tank with water through Valve Cap hole. At full capacity, the Water Tank holds 78 oz (2,307 ml) of water, and will provide a continuous steam time of approximately 80 minutes.

  • Page 10: General Operation

    GENERAL OPERATION NOTE: Be sure that Water Tank has been filled and, if desired, the Fabric Brush or Crease Tool is connected before following these steps. 1. For first-time use, remove protective plastic cover that is shipped on electrical plug. Plug power cord into a convenient electrical outlet.
  • Page 11 FABRIC STEAMING STEAMING GARMENTS: 1. To expand Hanger for use, fold the two arms upward until they lock into place. A garment may now be placed on the Hanger. 2. Alternatively, place garment on a clean, rust-free clothes hanger. Place hanger (with garment) around Hanger Hook (FIGURE 8).

  • Page 12: Storage & Care

    Storage & Care PROPER STORAGE Preparing your Deluxe Fabric Steamer for storage is quick and simple. When you have finished your steaming tasks, follow the steps listed below. 1. Set Lighted On/Off Switch to “OFF” position, and unplug power cord from electrical outlet. 2.

  • Page 13: Troubleshooting

    For problems with your Everyday Fabric Steamer, please refer to the troubleshooting guide located above. Additional inquiries should be directed to our consumer support services through our Web site, www.steamfast.com. If you do not have internet access, you may also contact our Consumer Service Department by telephone, at 1-800-711-6617.

  • Page 14: Parts And Accessories

    When ordering replacement parts and accessories for your Deluxe Fabric Steamer, you may refer to the part numbers below. Parts and accessories may be ordered through our Website: www.steamfast.com You may also contact Consumer Service directly: consumerservice@steamfast.com or 1-800-711-6617 CREASE TOOL A540-002R- FABRIC BRUSH...

  • Page 15: Warranty Information

    2-YEAR LIMITED WARRANTY What is covered Steamfast, a division of Vornado Air, LLC (“Steamfast”). Subject to the terms and conditions of this 2-Year Limited Warranty (“Warranty”) as set forth below, Steamfast warrants to the original consumer or purchaser (“Buyer”) that this Steamfast®-branded steam product, excluding all accessories and attachments, (the “Product”) is to be free from defects in material and...
  • Page 16 All such fees and costs shall be the sole responsibility of Buyer. Please allow at least 1-2 weeks for return of the Product after it is received by Steamfast. For ease of recordkeeping, it is recommended that Buyer staple or attached the original sales receipt to this Owner’s Guide and record the Product serial number (located on the Product specifications...
  • Page 17 Steamfast 415 East 13th, Andover, KS 67002 1-800-711-6617 steamfast.com consumerservice@steamfast.com T540-006 R-,V03...
