(Read these instructions carefully and retain for future reference)
A qualified electrician must carry out the electrical installation of this radiator. The Electrical
installation must comply with the current UK regulations. Any claim on the warranty could be
AVANT–DGP
Thermal Electric Radiator
Operating and Installation Instructions
AVANT-DGP
AVANT-DGP
AVANT-DGP
AVANT-DGP
AVANT-DGP
AVANT-DGP
invalid if these requirements have not been met.
Models:
350
800
1000
1300
1500
1800
NOTE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVANT-DGP 350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ducasa AVANT-DGP 350

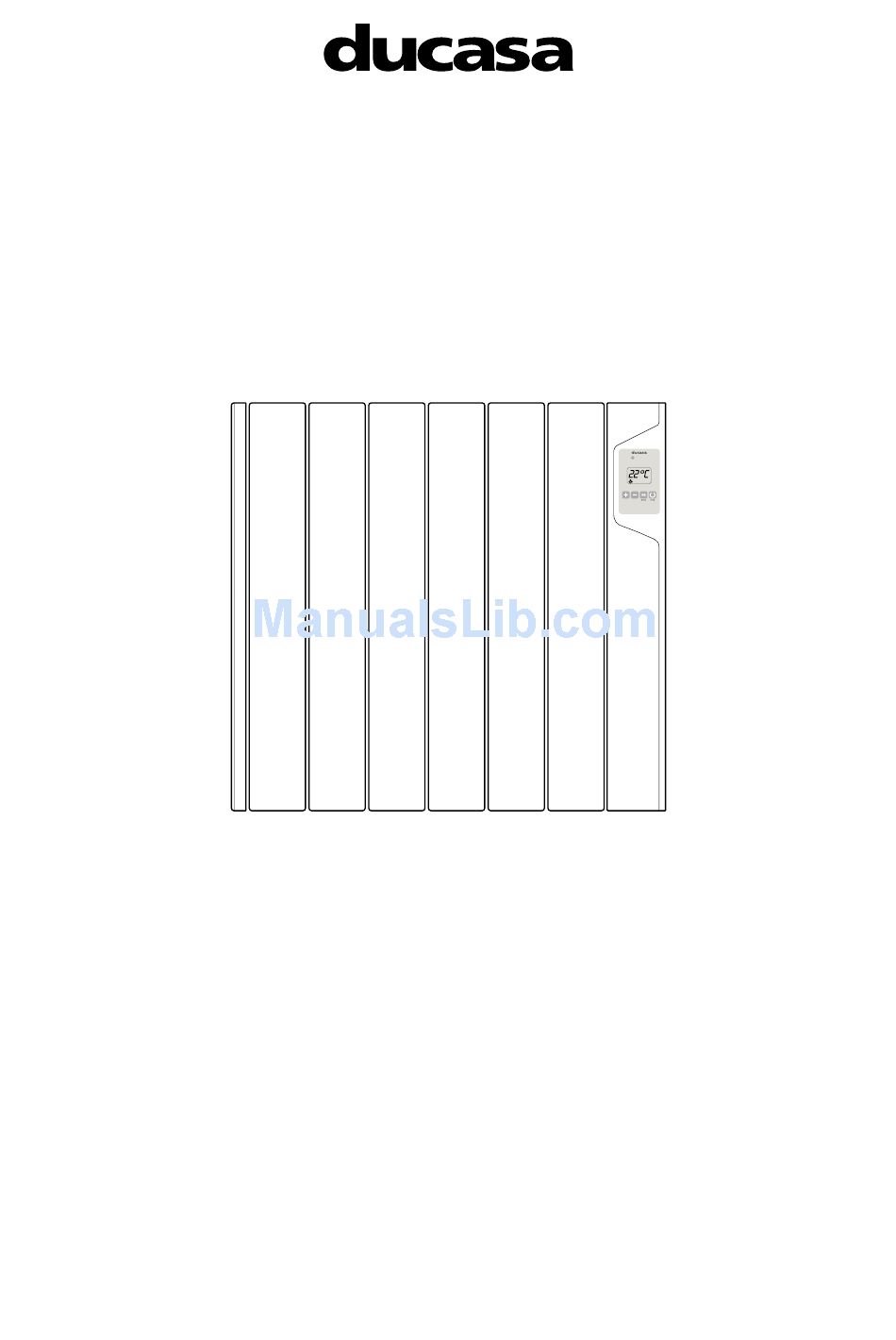

  • Page 1 AVANT–DGP Thermal Electric Radiator Operating and Installation Instructions (Read these instructions carefully and retain for future reference) Models: AVANT-DGP AVANT-DGP AVANT-DGP 1000 AVANT-DGP 1300 AVANT-DGP 1500 AVANT-DGP 1800 NOTE: A qualified electrician must carry out the electrical installation of this radiator. The Electrical installation must comply with the current UK regulations.
  • Page 2: Table Of Contents

    CONTENTS General / Important Information Page 3 Installation Instructions Page 5 � Electrical Power Supply � Location of Radiator � Mounting of Radiator Operating Instructions Page 8 � Controls � Switching On � Setting the temperature � Selection Of Mode �...
  • Page 3: General / Important Information

    Programmable digital control with LCD display � Comfort, Economy and Frost Protection settings � Key-pad locking (anti-tamper) � Programmable by infrared remote control (Ducasa Remote) – optional � NTC electronic sensor � Fitted with connecting power cable 1450mm long (without a plug) �...
  • Page 4: Technical Data

    Technical Data MODEL Number of Fins Power Rating (W) Size (mm) Net Weight (Kg.) Avant-DGP 350 340 x 580 x 100 Avant-DGP 500 420 x 580 x 100 Avant-DGP 800 580 x 580 x 100 Avant-DGP 1000 1000 740 x 580 x 100...
  • Page 5: Installation Instructions

    Location The ideal place to site the Ducasa radiator is as close as possible to coolest wall in the room but it is not recommended to site the radiator on un-insulated exterior walls, in this case, the part of the wall behind the radiator should be insulated.
  • Page 6: Mounting Of Radiator

    Mounting The Radiator Place the radiator on the floor, as shown in Figure 1. For radiators with 4, 6, 8 or 10 elements position the supports supplied with the radiator as shown in Figure 1. For radiators with 12 elements the supports should be positioned between the second and third elements on both sides.
  • Page 7 As soon as the radiator is hanging on the supports press on the locking plate until a click is heard. See Figure 4. The radiator is now installed. Fig. 4 FREE LOCKED...
  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS: Controls The control of the room temperature is by means of an electronic thermostat in the control unit on the right hand side of the radiator. The panel consist of four push-buttons and an LCD display. There also a main On-Off switch on the right hand side of the control panel. Increase Decrease Mode / OK...
  • Page 9 Heater will operate at the times and modes set in the programme (see Programming instructions or use PROGRAMME optional Ducasa handheld controller) i.e. comfort, economy or frost protection. FROST Radiator operates when temperature is less than 7ºC...
  • Page 10 Programming a) Start with the screen displaying the --:-- symbol or clock (hour : minutes) (OFF mode) b) Press and hold down (min. 5secs.) the ON/OFF/PROG button in order to go to the manual Programming mode (Pro) c) Select the operating mode hour by hour by pressing the button and then the Mode/OK button to validate.
  • Page 11 To lock the – keypad depress and hold the buttons at the same time. The screen will flash; now validate by pressing Mode/OK. Ducasa Digital Programmer The Avant DGP radiator can also be controlled via the Ducasa handheld controller.
  • Page 12: Maintenance And Care

    MAINTENANCE AND CARE Ducasa radiators require very little maintenance. The surfaces of the radiator must not be cleaned with an abrasive product or those containing granular substances. We recommend regular cleaning with PH neutral products. In order to clean the radiator, it is recommended that the electric power is switched off.
