Physical Description

USB Port 1
USB Port 2
2.3.1 Ethernet Connector
The network connector of WUS-3200 is designed for 10 Mbps or 100 Mbps
Ethernet networks and connects to the network via a twisted pair category 5
cable (10baseT and 100baseTX) or better.
2.3.2 Wireless
The wireless network access (802.11b/g) is enabled by inner antenna.
2.3.3 USB Host Ports
WUS-3200 has two USB host ports which are USB 1.1/2.0 low, full and high
speed compliant and successfully tested with USB 1.1/2.0 printers, Mass
Storage and HP all-in-one (HPAIO) series printers (MFP).
2.3.4 Init Button
The Init button is used for:
printing a page of configuration report to check the connection to the
printer and showing the MFP server settings
performing a Factory Default of the MFP server, which will restore

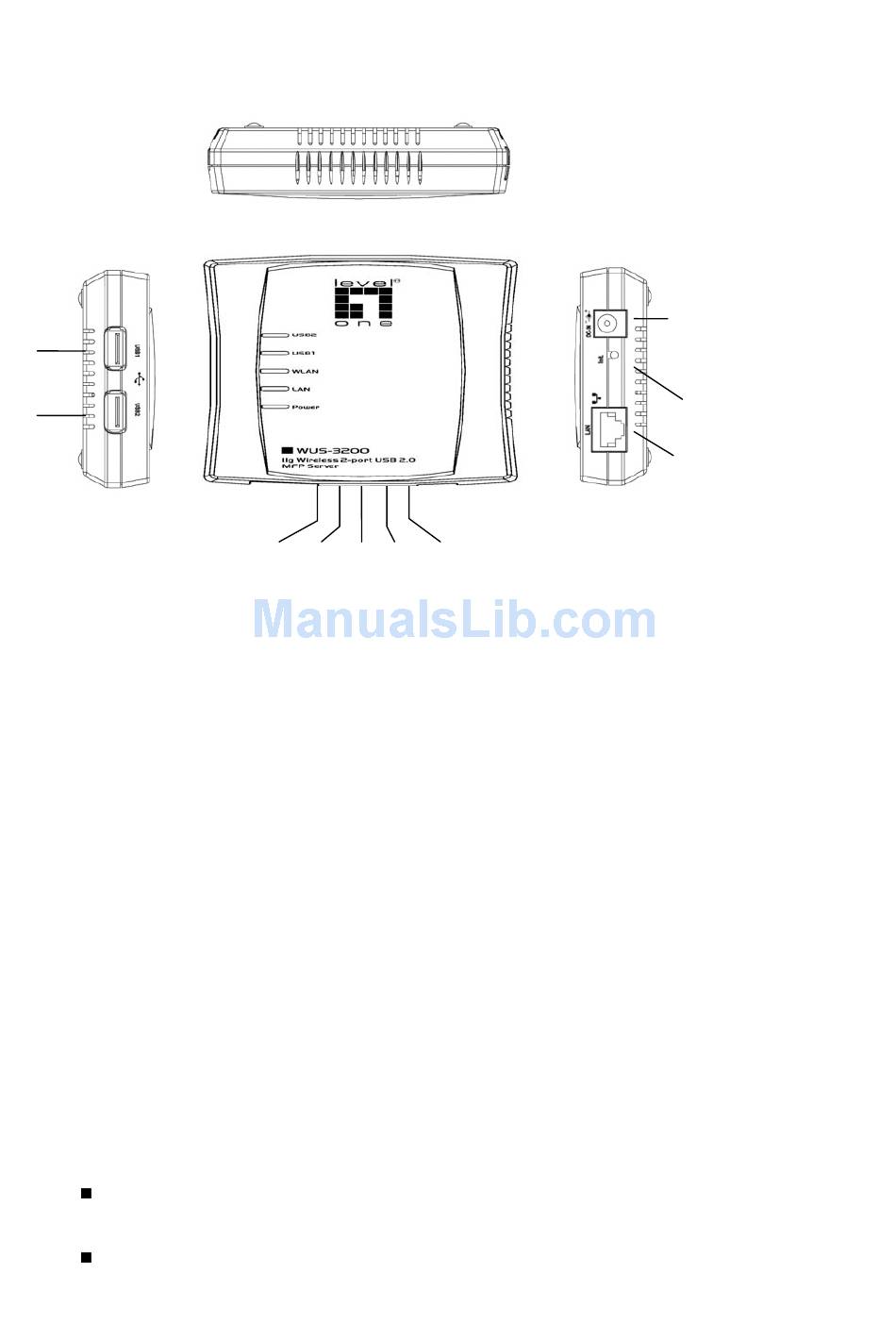

USB2 USB1 LAN
WLAN
Indicators
Power
3
Power Adaptor
Connector
Init Button
Ethernet
Connector
