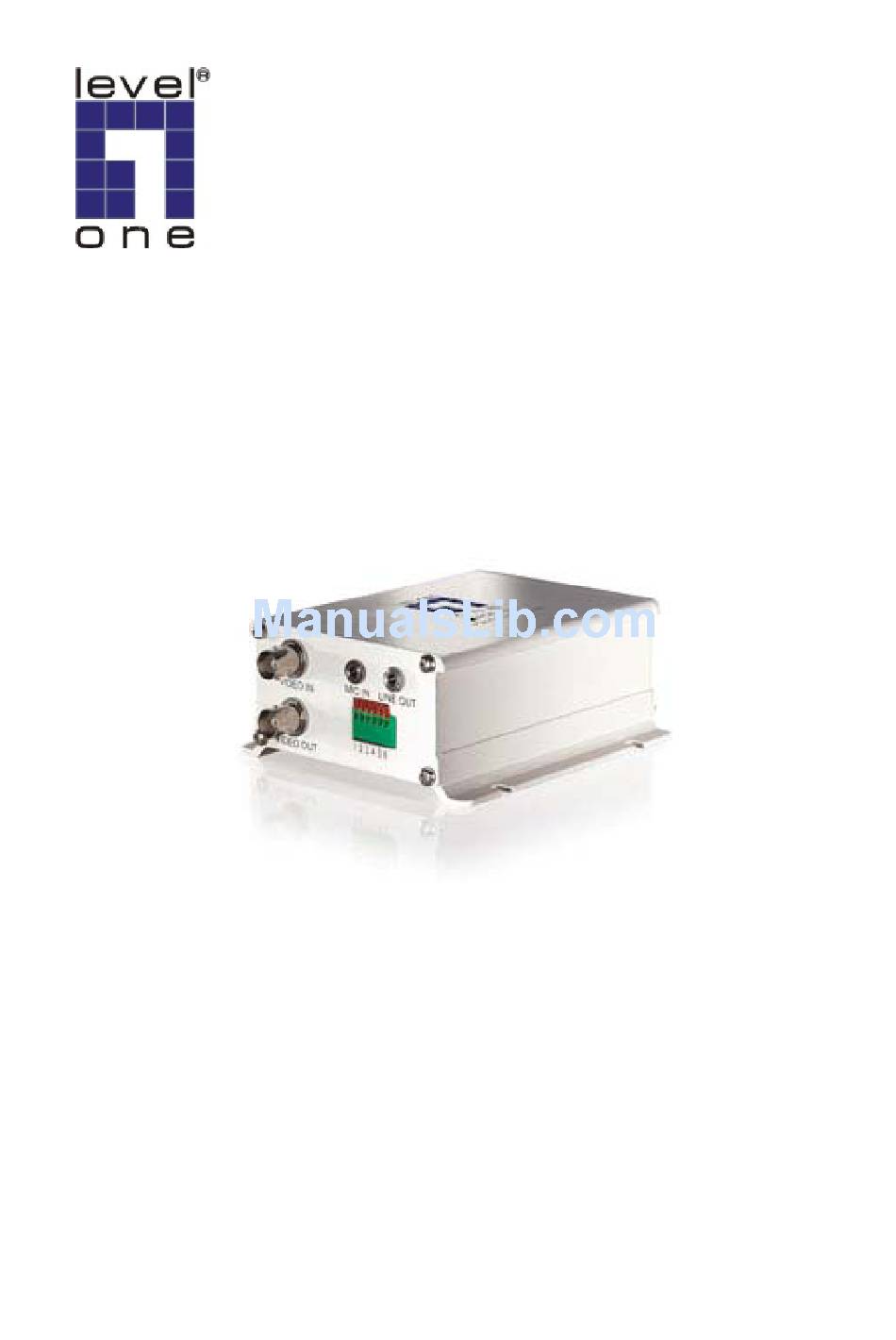

LevelOne
FCS-7011 1-Port PoE Video Server
User Manual
Ver:1.1.0-0710
Copyright (c) 2007 Digital Data Communications Co., Ltd. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCS-7011 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne FCS-7011

Summary of Contents for LevelOne FCS-7011

  • Page 1 LevelOne FCS-7011 1-Port PoE Video Server User Manual Ver:1.1.0-0710 Copyright (c) 2007 Digital Data Communications Co., Ltd. All Rights Reserved.
  • Page 2 Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Video server is not only a high-performance web-ready video server but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
  • Page 3 ATTENTION All operation please refer to the instruction. Please don’t place the product on unstable desk or bracket. Please avoid any liquid permeate inside of the machine in case damage the product. Before wiring, please follow all electronic safety standards, and using the recommendable power supply adapter.

  • Page 4: Table Of Contents

    Table of Contents Before You Use This Product ................2 Package Contents....................2 Software Installation..................3 Install “IP CamLocator” ................... 3 Install “IP CamSecure” ..................5 How to Use IP CamLocator................6 Initial use IP Cam Locator ................6 Configuration of Main Console................ 6 How to Access to the Network Video server ..........15 Initial accessing the network video server............15 Configuration of Main Console...............16...

  • Page 5: Before You Use This Product

    Package Contents FCS-7011 Power Adapter CD Manual/Utility Quick Installation Guide Physical Description VIDEO IN Video input of composite signal with BNC connector VIDEO OUT Video output of composite signal with BNC connector MIC IN Audio input with microphone jack LINE OUT Audio output with speaker jack 1 ←...

  • Page 6: Software Installation

    NETWORK/PoE The video server connects to the Network via a standard RJ45 connector. Since FCS-7011 is a PoE video server, it works without attaching to power outlet as long as connecting to a PoE switch. To install in Ethernet Make sure the Ethernet is firmly connected to a switch hub.
  • Page 7 Upon IP CamLocator’s start up, this program searches for LevelOne’s products on the same LAN. After searching, LevelOne Video Servers or Network video servers will be located by the IP CamLocator. There may be several entries shown in the window. The Administrator may differentiate the Network video servers with the model number and MAC address.

  • Page 8: Install "Ip Camsecure

    Install “IP CamSecure” Click”Install Software” Click”IP CamSecure” and follow the onscreen instruction or refer to the user’s manual to complete installation. Custom Setup Type: You may install the system to the directory of your preference and choose which feature(s) you want to install to the PC.

  • Page 9: How To Use Ip Camlocator

    Microsoft web browsers and IP CamLocator in Windows operation systems. This document focuses on introducing IP CamLocator. Initial use IP Cam Locator Click Start -> Program Files -> LevelOne -> IP Cam Locator -> IP Cam Locator. Configuration of Main Console Main Menu...
  • Page 10 Click this button to get into information of IP CamLocator. Video server The Video server page provides you LevelOne network video servers in the network with information, including product name, IP address, MAC address, model name and model ID. Click on specific network video servers to optimize Video Setup including brightness, contrast, saturation and hue.
  • Page 11 Password：Enter the password for authentication necessary for Network video servers connecting with IP CamLocator. The default password is the MAC address (in capital letters). Connect：After clicking to specific Network video servers in search area and type it with username and password to connect to the network video server in IP CamLocator. You can use the tool bar to optimize video Brightness, Contrast, Saturation and Hue.
  • Page 12 From Device：Click it and press Load to select the specific device in the network. Type it with Username and Password to load configuration from device. Note: • If you have connected to the specific device before, you don’t type it with Username and Password again.
  • Page 13 Serial Number, Firmware Version and hardware version. User The Network Video server default account and password setting is “root/MAC address (in capital letters)”. IP CamLocator provides to assign a password if the Network Video server is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user.
  • Page 14 Date Time Current date & time：This displays the current date and time of the video server. PC clock：This displays the date and time of the monitoring PC clock. Adjust：Select one of four time adjusting modes. Keep current setting：Select this mode to keep the current date and time of the video server. Synchronize with PC：Select this mode to make the date and time of the video server the same as the monitoring PC.
  • Page 15 TCP/IP HTTP Port：Select port 80 in general situations. If you want to use a port number other than 80, select the text box and enter a port number between 1024 and 65535. ： Note • When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the video server by typing the IP address of the video server on the web browser as follows: Example: when HTTP port number is set to 2000...
  • Page 16 Secondary DNS：Enter the IP address of the secondary DNS server, if necessary. PPPoE Use this when you connect the video server through PPPoE (Point -to- Point Protocol over Ethernet). PPPoE connection is the protocol that is widely used in xDSL (digital affiliate line such as ADSL, VDSL or SDSL) as the authentication and connection system.
  • Page 17 DDNS Server Name：Enter the name of the DDNS Server User ID：Enter the user ID for authentication necessary for DDNS connections. Type it up to 64 characters. Password：Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Confirm：Re-type the password to confirm.

  • Page 18: How To Access To The Network Video Server

    Start your web browser, and enter the IP address or host name of the network video server of LevelOne in the Location / Address field of your browser. Use the default account “root” and default password which is the MAC address (in capital letters).After successful login, there would a screen appear for ActiveX.

  • Page 19: Configuration Of Main Console

    ： Note The default user name and password are set at the factory for the administrator. You can change them in the Account Menu under Setting on later pages. Configuration of Main Console Monitor image Section Video server control Main menu Main menu...
  • Page 20 Snapshot Click this button to capture a live image shot by the video server and store the picture in your computer. See details on later pages. Setting This function is only for the Administrator. Click this button to get into the Basic and Advance settings menu.

  • Page 21: Adjusting The Monitor Image

    You can use the tool bar to optimize video brightness, contrast, and saturation. You can also modify the Picture settings in the Setting Menu under Basic Setting. 5.Audio buttons： ：Speakers turned on. ：Speakers turned off. ：Microphone turned on. ：Microphone turned off. ：Volume control bar.
  • Page 22 Directly zoom in / out the image via the monitor window 1. Click to display the zoom in window. 2. Pull the to adjust the zoom range, and it will be showed on the above window. 3. You can use the right click of your mouse to move the to any where on the window.
  • Page 23 Setting from Main Console 1. Login to the Main console. 2. Press on the Preset section , and a setting dialog will appear. 3. Click “Preset 1” to set the direction, and save. 4. Follow the same step to set the other default preset positions. 5.
  • Page 24 zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP, SMTP and Alarm output for capturing and sending images or starting alarm output. Language You can click the pulldown box to select system language, including English, German, Danish, Greek, Traditional Chinese and Korean.

  • Page 25: Basic Setting

    Basic Setting Click the “Basic” folder to display the sub folders, including System, Video server, Network, and Account. System Information The Information page provides you with product factory information, including product name, serial number, firmware version, Web version and hardware version.
  • Page 26 Day & Time Current date/time：This displays the current date and time of the video server. PC clock：This displays the date and time of the monitoring PC clock. Date & time format：Click the pulldown box to select among different time display formats, including yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second), mm-dd-yyyy hh:mm:ss (month-day-year hour:minute:second), and dd-mm-yyyy hh:mm:ss (day-month-year hour:minute:second).
  • Page 27 Initialize Reboot：Click this button to reboot the video server. A confirmation dialogue will appear. Click OK to proceed. It takes about two minutes to reboot the video server. Factory default：Click this button to reset the video server to the factory default settings. A confirmation dialogue will appear.

  • Page 28: Video Server

    Video server General Image Rotate：Select to Mirror, Rotate, or Mirror & Rotate the display image. Overlay：Select to add Text Overlay or Privacy Mask on the display screen. The Text Overlay enables users to see Date/Time on the screen. The Privacy Mask enables users to conceal an area of the video image.
  • Page 29 MPEG4 MPEG4 view port Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8090. Specify an even number from 1024 to 65534. ： Note • Unicast streaming：Specify the transmission port number of the video data and audio data used when UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer.
  • Page 30 MJPEG MJPEG view port Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 8070. Specify an even number from 1024 to 65534. ： Note • Unicast streaming：Specify the transmission port number of the video data and audio data used when UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer.

  • Page 31: Network

    Network The Network Video server default account and password setting is “root/MAC address(in capital letters)”. It is necessary to assign a password if the Network Video server is intended to be accessed by others. Information MAC address：Display the MAC address of the video server. Obtain an IP address automatically (DHCP)：If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server.
  • Page 32 • When you have set the HTTP port number to a number other than 80 on the Network setting page or in the Setup Program, access the video server by typing the IP address of the video server on the web browser as follows: Example: when HTTP port number is set to 2000 http://192.168.0.100:2000/ PPPoE...
  • Page 33 DDNS Server name：Choose the name of the DDNS Server User ID：Enter the user ID for authentication necessary for DDNS connections. Type it up to 64 characters. Password：Enter the password for authentication necessary for DDNS connections. Type it up to 32 characters. Re-type password：Re-type the password to confirm.
  • Page 34 HTTP port：Enter the HTTP port number and default HTTP port is 80. MPEG4 viewer port：Enter the MPEG4 viewer port number and default MPEG4 viewer port is 8090. MJPEG viewer port：Enter the MJPEG viewer port number and default MJPEG viewer port is 8070.
  • Page 35 SMTP server name：Type the SMTP server name up to 64 characters, or the IP address of the SMTP server. Authentication：Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings.

  • Page 36: Account

    Account Setting The Network Video server default account and password setting is “root/MAC address(in capital letters)”. It is necessary to assign a password if the Network Video server is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user.

  • Page 37: Advance Setting

    Advance Setting Click the “Advance” folder to display the sub folders, including Preset position, Patrol, FTP Client, SMTP, Alarm output, Schedule, Alarm Input, Alarm buffer, Motion Detection. PTZ Control In this section, it provides Pan, Tilt, Zoom, Focus, Iris and Auto Pan speed control setting saved, as well as the Protocol, Baud rate and Address which depend on Speed Dome control module.
  • Page 38 Address：Type it from 0 to 128.

  • Page 39: Preset Position

    Preset Position In this section, up to 32 Pan / Tilt and Zoom positions can be saved, as well as the home position, which the video server faces to when the power is turned on. Setting Set：Use it to save the video server position to a preset number. Carry out the following steps.
  • Page 40 preset position setting.

  • Page 41: Patrol

    Patrol There are four patrol tours to set for composing different preset positions. Each one lists up to 8 positions which can be programmed, and the video server moves to the programmed positions sequentially. The video server stops when it moves to the last preset position. General Tour name：Rename the tour name.
  • Page 42 1. Click “Order” to choose one of eight orders. 2. Click Select Pos. to set the preset position. 3. Click the SET. The tour position is saved. 4. Follow the steps to set the other orders. 5. Click the OK to save the tour.

  • Page 43: Ftp Client

    FTP Client Use this menu to set up for capturing and sending images to an FTP server. By using FTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server. FTP client setting menu is composed of two tabs, General ,Alarm sending and Periodical sending.
  • Page 44 Password：Type the password for the FTP server. Retype password：To confirm the password, type the same characters as you typed in the Password box. Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. Alarm sending Set to forward the image and audio file to the specified FTP server linked with the alarm detection by the external sensor input or by the built-in motion detection function.
  • Page 45 the motion detection function page. ： Note • Motion Detection works only when the Video mode is set to MPEG-4 and the Cropping is set to Off. Alarm buffer ： Select Use alarm buffer when you forward the image/ audio of before and after the alarm detection (pre-alarm, post-alarm).
  • Page 46 Sequence number：A consecutive number is added to the Image file name. Sequence number clear：Click Clear and the suffix of the sequence number returns to 1. Interval：Set the periodical sending is effective interval. Min value is 1 min and Max value is 24 hour.

  • Page 47: Smtp

    SMTP Set the SMTP menu when you want to send an image via e-mail. By using Mail (SMTP) function, you can send a mail with attached image which has been shot linked with the external sensor input or with the built-in motion detection function. The image file can also be sent periodically.
  • Page 48 Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. SMTP: Select if SMTP authentication is necessary when an e-mail is sent. POP before SMTP: Select if POP before SMTP authentication is necessary when an e-mail is sent.
  • Page 49 Alarm sending：Select On to set to send mail with connection to the alarm detection. File attachment：Set whether an image file is attached to the mail sent or not. When On is selected, the image file made by the settings below is attached. When Off is selected, only the message is sent.
  • Page 50 Periodical sending You can set to send an image file by SMTP server periodically by selecting On to send the image file by SMTP server linked with setting peroid Image file name：Type the file name of the image sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 51: Alarm Output

    Alarm Output When you click Alarm output on the Advance mode menu, the Alarm output setting menu appears. You can set in this menu to control the alarm out of I/O port on the rear of the video server linked to the alarm detection and the timer. This function is only for Video servers which support digital input/output.
  • Page 52 • Motion Detection works only when the Video mode is set to MPEG-4 and the Cropping is set to Off. Alarm duration：There are up to 60 second options to choose for alarm duration interval.

  • Page 53: Schedule

    Schedule When you click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Image memory setting menu, Alarm out setting menu and so on.

  • Page 54: Alarm Input

    Alarm Input When you click Alarm Input on the Advance mode menu, the Alarm output setting menu appears. You can set in this menu to control the external alarm input of I/O port on the rear of the video server linked to FTP and SMTP sending function. This function is only for Video servers which support digital input/output.

  • Page 55: Alarm Buffer

    Alarm Buffer You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post - alarm image and audio. These can be set when Alarm sending FTP client setting menu or Image memory setting menu is set to On, and besides when Use alarm buffer is selected.
  • Page 56 Post alarm period：Type it with recording time of the image/audio after the alarm detection. ： Note • The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MJPEG-4 and MJPEG) in the video server setting menu.

  • Page 57: Motion Detection

    Motion Detection When you click Motion Detection on the Advance mode menu, the Motion Detection setting menu appears. There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP, SMTP and Alarm output for capturing and sending images or starting alarm output.

  • Page 58: System Log

    Carry out the following steps： 1. Click On to Motion Detection 1 choose one of eight orders. 2. A detecting zone 1 appears and use mouse to adjust and move the zone boundaries and position. 3. Use tool bar to set Threshold and Sensitivity value. 4.

  • Page 59: Trouble Shooting Sheet

    Trouble shooting sheet Troubles Probable Reasons Solutions Power cable is not in well Reconnected. No action while power on. connection. No image. Start up with factory The Networking indicator default setting by pressing Firmware is hang up. isn’t flashing. the reset button over 5 seconds then releasing it.

  • Page 60: Technical Parameters

    Technical Parameters M od e l FCS-7011 MJEG/MPEG4 Co mpr ess io n Mo de 704x480 pixels(NTSC) Max . R esolu t io n 704x576 pixels(PAL) 160x120: 30/25fps 320x240: 30/25fps F ra m e R at e 704x480: 30/25fps 4 in / 1out...

  • Page 61: Gnu General Public License

    GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 62 Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.
  • Page 63 c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License.
  • Page 64 compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
  • Page 65 It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices.
  • Page 66 FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. All the source code of LevelOne GPL products are uploaded to http://www.level1.com All the users can download freely.
