Summary of Contents for Sherwood RX-4105

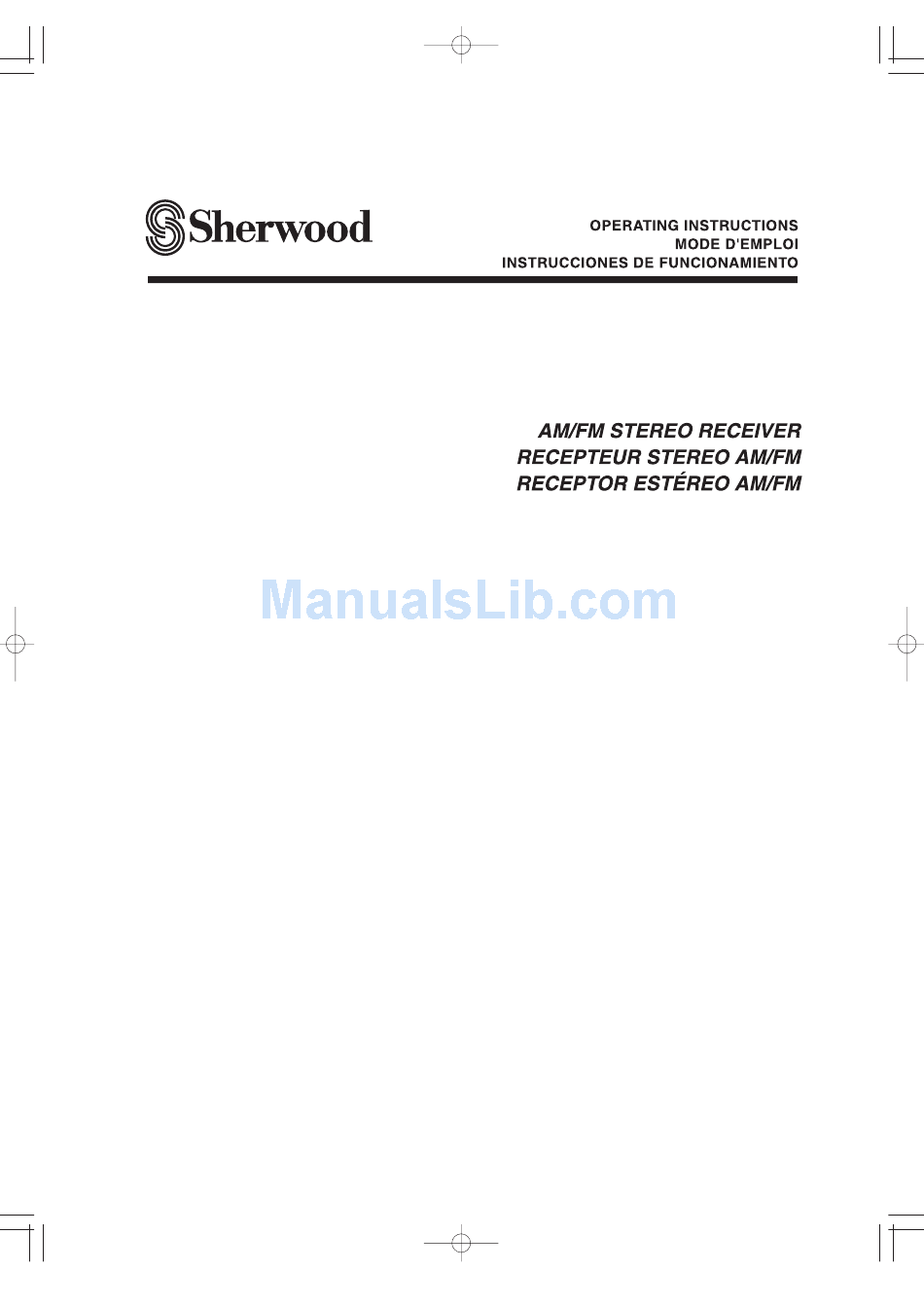

- Page 1 RX-4105...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should connection to grounding electrodes, and requirements for the be read before the product is operated. grounding electrode. See Figure 1. 2. Retain instructions - The safety and operating instructions should be retained for future reference. -
Page 3: Introduction
Introduction READ THIS BEFORE OPERATING YOUR UNIT This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO CAUTION This symbol is intended to alert the user to the presence... -
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ......................2 Introduction ¦ U READ THIS BEFORE OPERATING YOUR UNIT ............... 3 System Connections ........................5 Front Panel & Remote Controls ....................7 ¦ U REMOTE CONTROL OPERATION RANGE ................9 ¦ U LOADING BATTERIES ....................... 9 Operations ¦... -
Page 5: System Connections
System Connections • Do not plug the AC input cord into the wall AC outlet until all connections are completed. • Be sure to connect the white RCA pin cords to the L (left) and the red RCA pin cords to the R (right) jacks when making audio connections. -
Page 6: Connecting Speakers
CONNECTING AUDIO/VIDEO COMPONENTS • The VCR jacks may also be connected to an additional component such as MD recorder, tape deck, etc. • The TV/AUX jacks may also be connected to an additional component such as a TV, DVD player, etc. CONNECTING SPEAKERS •... -
Page 7: Front Panel & Remote Controls
Front Panel & Remote Controls § š FRONT PANEL § š REMOTE CONTROLS... - Page 8 1. POWER BUTTON 12. NUMERIC BUTTONS(0 ~ 9) Each time the POWER button is pressed, this unit is Press these buttons to select or to store preset turned on to enter the operating mode or off to enter stations directly. the standby mode.
-
Page 9: U Remote Control Operation Range
FLUORESCENT DISPLAY LOADING BATTERIES REMOTE CONTROL OPERATION RANGE Remove the cover. Load two batteries matching the polarity. ¦ U Use the remote control unit within a range of about 7 meters (23 feet) and angles of up to 30 degrees aiming at the remote sensor. Remove the batteries when they are not used for a long time. -
Page 10: Operations
Operations LISTENING TO A PROGRAM SOURCE Turn the power on. Operate the selected component for playback. Adjust the volume to a comfortable listening level. ¦UEach time this button is pressed, this unit is turned on to enter the operating mode or off to enter the standby mode. - Page 11 Adjusting the tone(bass and treble) Adjusting the sound volume balance Enter the tone mode. Enter the balance mode. ¦ U Each time this button is pressed, the corresponding ¦ U “BAL” and the balance level is displayed for 3 seconds. tone mode is selected and shown for 3 seconds as follows: Adjust the sound volume balance between...
-
Page 12: Listening To Radio Broadcasts
LISTENING TO RADIO BROADCASTS Manual tuning Auto tuning • Manual tuning is useful when you already know the Select the tuner and then the desired band. frequency of the desired station. • Perform the steps 1 and 2 in “Auto tuning” procedure and press the TUNING/PRESET UP(¡... - Page 13 Select the desired preset number (1~30) and Select the desired preset number. press the MEMORY button. • When using the NUMERIC buttons on the remote control. • When using the NUMERIC buttons on the remote Examples) For “3” : control. For “15”...
-
Page 14: U Recording
RECORDING ¦ U The volume, tone(bass, treble) and balance settings have no effect on the recording signals. ¦ U When you select tuner, CD or TV/AUX as a recording source, recording may be made on TAPE or VCR, or both simultaneously. -
Page 15: Troubleshooting Guide
Troubleshooting Guide If a fault occurs, run through the table below before taking your receiver for repair. If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation, consult with your dealer. -
Page 16: Specifications
Specifications § š AMPLIFIER SECTION ¦ U Power output, stereo mode, 8 Ω, THD 0.08 %, 40 Hz~20 kHz ............... 2X105 W ¦ U Total harmonic distortion, 8 Ω, 100 W, 20 Hz~20 kHz ................0.04 % ¦ U Intermodulation distortion 60 Hz : 7 kHz= 4 : 1 SMPTE, 8 Ω, 100 W .................... - Page 17 RX-4105...
