AVG-DMM1616

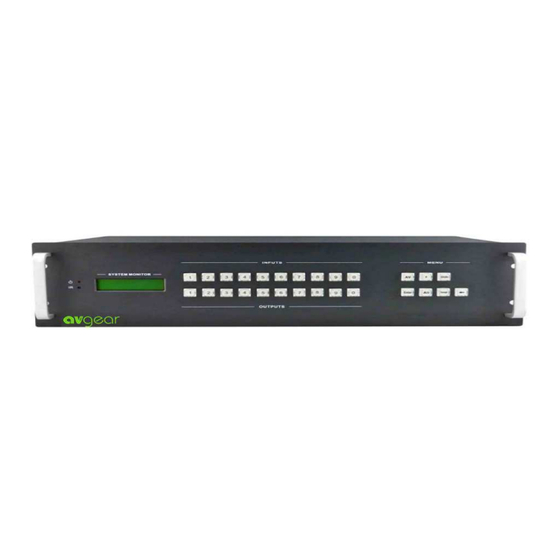

The AVG-DMM1616 is a high-performance
video and audio modular matrix switcher
supporting a maximum of 16 input signal
sources and 16 output displays synchronously.
Features
Modular chassis with configurable
I/O slots, ranging from 4x4 to
16x16.
Various I/O cards, includes HDMI,
HDBaseT, SD/HD/3G-SDI, DVI
and VGA cards (Compatible with
YUV, YC & CVBS.) to configure
any matrix.
True cross-point switching, any
input to any output, regardless of
signal format.
Supports HDMI1.4a, supports 3D.
Supports 4K.
Integrated HDBaseT technology.
Controllable via button, RS232 &
optional TCP/IP, also compatible
with 3rd party control systems.
HDCP compliant.
LCD display.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-DMM1616 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-DMM1616

Summary of Contents for AVGear AVG-DMM1616

  • Page 1 YUV, YC & CVBS.) to configure any matrix. True cross-point switching, any input to any output, regardless of signal format. The AVG-DMM1616 is a high-performance Supports HDMI1.4a, supports 3D. video and audio modular matrix switcher Supports 4K. supporting a maximum of 16 input signal Integrated HDBaseT technology.
  • Page 2 AVG-DMM1616 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at March 2015. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-DMM1616 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    Introduction to the AVG-DMM1616 ............... 1.1 Features ....................... 1.2 MMX signal card (changeable cards) ..........1.2.1 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-DMM1616 ............3 Front Panel ....................3.1 Rear Panel....................3.2 Changeable Cards ..................3.3 4I-DV &...
  • Page 5 AVG-DMM1616 4I-VA ....................6.2.5 4I-SD & 4O-SD ................6.2.6 4I-TP & 4O-TP ................. 6.2.7 4I-UH & 4O-UH ................6.2.8 4I-UF & 4O-UF ................. 6.2.9 4I-BT & 4O-BT ................6.2.10 Troubleshooting & Maintenance ................7...

  • Page 6: Introduction

    IP port for TCP/IP control, it can also be easily controlled by third-party devices. With its flexible design, the AVG-DMM1616 can be used for a range of projects and is capable of being an ‘all-in-one solution’. It is the perfect solution for multimedia conference rooms, control rooms, broadcasting rooms, shopping centers etc.

  • Page 7: Mmx Signal Card (Changeable Cards)

    AVG-DMM1616 1.2.1. MMX signal card (changeable cards) To suit different applications and users, the AVG-DMM1616 cards are classified into the following models: Spec Inputs Signal Format Models 4I-HD HDMI 4I-DV 4I-DS DVI, HDMI, VGA, AV, YPbPr 4I-VG 4I-VA VGA& PCM audio...
  • Page 8 AVG-DMM1616 2. Package List 1 x AVG-DMM1616 1 x RS232 cable 4 x Plastic cushions 1 x IR remote (The cell battery is not included) 1 x Power Cord 1 x User manual Note: Please confirm if the product and the accessories are all included, if not,...

  • Page 9: Product Appearance Of The Avg-Dmm1616

    AVG-DMM1616 3. Product Appearance of the AVG-DMM1616 3.1. Front Panel Name Description ① IR sensor, receives IR signal sent from IR remote ② Power Illuminates red once powered on indicator ③ LCD screen Displays real-time operation status ④ INPUTS Buttons for input channels with green back-light indication, ranges from 0~ 9, 16 selectable channels in total.

  • Page 10: Rear Panel

    Power ports Connect with household alternating current power, including one redundant power. Note: There are only 4 input and 4 output slots for AVG-DMM1616, which enables only 4 input cards and 4 output cards to be installed on AVG-DMM1616. The input/output cards can be changed based on your requests and supports hot plug and play.

  • Page 11: Dv & 4O-Dv

    AVG-DMM1616 3.3.1. 4I-DV & 4O-DV DVI signal card. (Please check the specification from 5.2.1) It is fully compatible with HDMI1.3 and HDCP, but not supporting analog signals. It uses embedded EDID management technology, supporting DDC. 4I-DV: input card, maximum four input signals.

  • Page 12: Ds& 4O-Ds

    AVG-DMM1616 3.3.2. 4I-DS& 4O-DS Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3 and HDCP 1.2, and supports seamless transmission for high-definition DVI, HDMI, VGA, AV, YPbPr signals. It can automatically identify the format of the input signal, and the output resolution can be adjusted.

  • Page 13: Vg & 4O-Vg

    AVG-DMM1616 4O-HD: output card, maximum four output signals, output signals from 4I-HD, or other series input cards. Pin layout of the HDMI connectors (female). Signal Name Signal Name TMDS Data 2+ SHELL TMDS Data 2 Shield Hot Plug Detect TMDS Data 2-...
  • Page 14 AVG-DMM1616 Pin layout of the VGA connectors (female): Pin Number Signal Name Pin Number Signal Name Pin 1 Pin 9 KEY/PWR Pin 2 GREEN Pin 10 Pin 3 BLUE Pin 11 ID0/RES Pin 4 ID2/RES Pin 12 ID1/SDA Pin 5...

  • Page 15: Sd & 4O-Sd

    AVG-DMM1616 3.3.5. 4I-VA VGA signal card. (Please check the specification from 5.2.5) Scale all inputs to 1080p. Compatible with C-Video, YUV, YC (Factory preset function). Supporting RGBHV, RGsB, RGBS, RsGsBs, YUV, YC and Composite video. 4I-VA: input card, maximum four VGA inputs and four stereo audio inputs. Input signal can pass to output devices through any series of output cards.

  • Page 16: Tp & 4O-Tp

    AVG-DMM1616 3.3.7. 4I-TP & 4O-TP Twisted pair card (HDMI/DVI extender). (Please check the specification from 5.2.7) Supports HDTV, compatible with HDMI1.3 and HDCP 4I-TP: input card, maximum input four HDMI TP signals. Input signals can pass to output devices through 4O-TP, or pass through other series output cards, designed to work with the AVG- TPHD402T.

  • Page 17: Uh & 4O-Uh

    AVG-DMM1616 Note: Cable connectors MUST be metal, and the shielded layer of the cable MUST be connected to the connector’s metal shell, to ensure reliable grounding. 3.3.8. 4I-UH & 4O-UH 4K HDMI signal card. (Please check the specification from 5.2.8) Supports hot- plugging, HDMI 1.4&...

  • Page 18: Bt & 4O-Bt

    AVG-DMM1616 4O-UF: output card with indicators, maximum four output signals, output signals from 4I-UF, or other series input cards; corresponding indicator illuminates green when there is an output signal. Note: Use the 4I-UF/ 4O-UF with optical fiber transmitter/ receiver. 3.3.10. 4I-BT & 4O-BT Twisted pair card (HDMI/DVI extender).

  • Page 19: System Connection

    AVG-DMM1616 4. System Connection 4.1. System Applications Reliable performance for control and transmission makes the AVG-DMM1616 ideal in the IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. 4.2. Usage Precautions 1.

  • Page 20: System Operations

    5. System Operations 5.1. Front Panel Button Control Users can control the AVG-DMM1616 simply and directly with its front panel buttons. To switch AV/ and A/ V signal, please operate the buttons using the following format: Format: “Input Channel” + “AV” +“Output Channel “+“Enter”...

  • Page 21: Ir Control

    AVG-DMM1616 5.2. IR Control With the IR remote, the AVG-DMM1616 can be controlled remotely. As the function buttons on the IR remote are the same as the ones on the front panel, the IR remote shares the same operations and commands with the control panel. Press the buttons in below format: “Input Channel”...

  • Page 22: Rs232 Control

    5.3. RS232 Control 5.3.1. Connection of the RS232 Communication Port In addition to the front control panel and IR remote, the AVG-DMM1616 can be controlled by a far-end control system using the Ethernet port or via the RS-232 communication port. This RS-232 communication port is a female 9- D connector.

  • Page 23: Rs232 Communication Commands

    AVG-DMM1616 5.3.2. RS232 Communication Commands Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Type Command Description /*Type; Query the models information. /%Lock; Lock the keyboard of the control panel on the Matrix. /%Unlock; Unlock the keyboard of the control panel on the Matrix.
  • Page 24 AVG-DMM1616 Type Command Description UpgradeIntEDID[x]. Upgrade built-in EDID data. Supports 6 types of EDID data (see Note 6). When the switcher gets the command, it will show a message to send EDID file (.bin file). EDIDUpgrade[x]. Upgrade EDID data of input ports When the switcher gets the command, it will show a message to send EDID file (.bin file).
  • Page 25 AVG-DMM1616 Type Command Description 4I-VG USER/I/[x]:0698%; Update software USER/I/[x]:0622%; Set the signal of input channel [x] to VGA. USER/I/[x]:0623%; Set the signal of input channel [x] to YCBCR. USER/I/[x]:0624%; Set the signal of input channel [x] to SVIDEO. USER/I/[x]:0625%; Set the signal of input channel [x] to CVIDEO.
  • Page 26 AVG-DMM1616 Type Command Description USER/O/[x]:0804%; Set the resolution of output [x] to 1280x720P @60Hz USER/O/[x]:0813%; Set the resolution of output [x] to 1280x1080P @60Hz USER/O/[x]:0824%; Set the resolution of output [x] to 1024x768 @60Hz USER/O/[x]:0826%; Set the resolution of output [x] to 1280x1024 @60Hz USER/O/[x]:0837%;...
  • Page 27 AVG-DMM1616 Detailed Information 1080p 2D 5.1CH 1080p 2D 2.0CH 720p 2D 5.1CH 720p 2D 2.0CH 4kx2k 2D 5.1CH 4kx2k 2D 2.0CH Update in-built EDID data by sending command UpgradeIntEDID[x]. Examples: 1. Transfer signals from an input channel to all output channels: [x]All.
  • Page 28 AVG-DMM1616 8. Switch signal: [x1] B[x2]. Example: “12B12,13,15.” to transfer signal from input12 to output No.12,13,15. 9. Query the input channel to the output channel [x]: Status[x]. Example: Send “Status3.” to Query the input channel to the output 3. 10. Query the input channel to the output channels one by one: Status.

  • Page 29: Tcp/Ip Control

    Port is 4001. IP & Gateway can be changed as you need, Serial Port cannot be changed. Controlled by Single PC Connect a computer to the TP port of the AVG-DMM1616, and set its IP address and gateway to the same IP and gateway as the AVG-DMM1616’s (Default: 192.168.0.178).

  • Page 30: Tcp/Ip Settings

    AVG-DMM1616 asynchronously. 5.4.2. TCP/IP Settings Step 1. Connect the TCP/IP port of the AVG-DMM1616 to Ethernet port of a PC with twisted pair. Step 2. Set the PC’s IP and gateway to the same IP subnet as the default IP of the AVG-DMM1616 (192.168.0.178).
  • Page 31 AVG-DMM1616 Step 5. Change IP/Serial Port Change IP a) Select the tab “system info” and then you are able to change the IP. b) Press the button Apply to save your settings. Then the PC(s) in this LAN (connected with this router) will be able to control the matrix switcher.
  • Page 32 AVG-DMM1616 b) Set the port number to 4001 (unique, other numbers are unavailable). c) Press the button Apply on present page to save your settings. Step 6. Select the tab “reset device”, then your settings will be loaded to the AVG-...

  • Page 33: Specifications

    AVG-DMM1616 6. Specifications 6.1. Main Unit Control Serial control port RS-232, 9- female D Configurations 2 = TX, 3 = RX, connector 5 = GND TCP/IP control RJ45 Port Front Panel Push Button control General Power Supply 100VAC ~ 240VAC,...

  • Page 34: Ds& 4O-Ds

    AVG-DMM1616 6.2.2. 4I-DS & 4O-DS Input Output Input 4 DVI Output 4 DVI Input Female DB24+5 Output Female DB24+5 Connector Connector Input Level T.M.D.S. 2.9V~3.3V output Level T.M.D.S. 2.9V~3.3V Input 75Ω Output 75Ω Impedance Impedance General Gain 0 dB Bandwidth 340 MHz (10.2...

  • Page 35: Vg & 4O-Vg

    AVG-DMM1616 6.2.4. 4I-VG & 4O-VG Input Output Input 4 VGA Output 4 VGA Input Female 15 pin Output Connector Female 15 pin HD Connector Input Level 0.5 ~ 2.0Vp-p Output Level 0.5 ~ 2.0Vp-p Input 75Ω Output 75Ω Impedance Impedance...

  • Page 36: Sd & 4O-Sd

    AVG-DMM1616 6.2.6. 4I-SD & 4O-SD Input Output Input 4 SDI Output 4 SDI Input Female BNC Output Female BNC Connector Connector Input Level 0.8Vp-p ± 10% output 0.8Vp-p ± 10% Level Input 75Ω Output 75Ω Impedance Impedance General Gain Unity Maximum 2.97 Gbps...

  • Page 37: Uh & 4O-Uh

    AVG-DMM1616 Min.～Max. Level ＜0.3V ~ ＜0.005%@1KHz 1.45Vp-p HDMI Support HDMI1.4a and Differential Phase Error ±10° @ Standard HDCP 135MHz_100M 6.2.8. 4I-UH & 4O-UH Input Video Input Video Output Input 4 HDMI Input 4 Analog Input Female HDMI Input Connector 3.5mm...

  • Page 38: Uf & 4O-Uf

    AVG-DMM1616 6.2.9. 4I-UF & 4O-UF Input Output Input 4 Fiber Optical Output 4 Fiber Optical Input Connector SPF Fiber Output Connector SPF Fiber Optical Optical Connector Connector Fiber Type Multi-mode, Fiber Type Multi-mode, Single Single mode General Data Rate 10.2 Gbps...
  • Page 39 AVG-DMM1616 indicator) Output Impedance 75Ω Min.～Max. Level T.M.D.S 2.9V～ 3.3V Output Impedance 100Ω Frequency 20Hz～20K Hz (Differential) Response Control Part Control Signal 4 RS232 Control Connector 3-pin pluggable terminal block Protocol TCP/IP General Gain Bandwidth 6.75Gbps Max Resolution 4Kx2K Crosstalk <-50dB@5MHz...

  • Page 40: Troubleshooting & Maintenance

    AVG-DMM1616 7. Troubleshooting & Maintenance Problems Causes Solutions The Connection of the Check whether the cables cabling may be incorrect are connected correctly Color loss or no video or faulty and in working condition. signal output Make sure the connection...
  • Page 41 AVG-DMM1616 Problems Causes Solutions Check to ensure the Wrong connection connection between the control device and the unit Type in correct RS232 Cannot control the device Wrong RS232 communication by control device (e.g. a communication parameters: Baud PC) through RS232 port parameters rate:600;...
