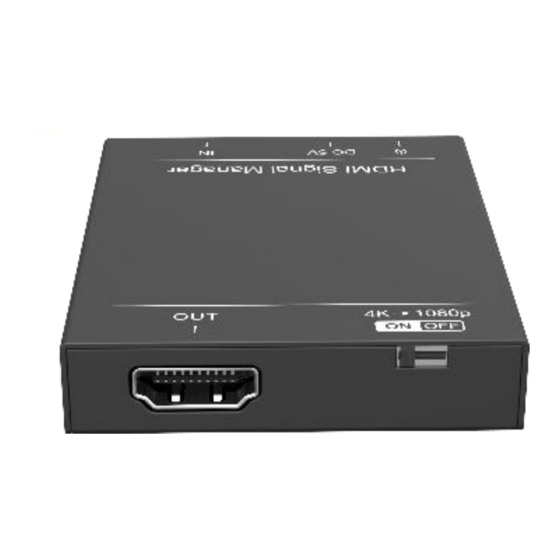

The AVG-SM-2.0 is an ultra-thin HDMI signal
manager supporting HDMI V2.0. It is designed to
enhance the compatibility between HDMI sources
and displays. The transmission of 4k×2k@60Hz
(max) signal from source to display is up to 10m.
In addition, it supports 4K downscaling to 1080p
output, and HDCP follows the display device to
ensure device compatibility.
•
Input supports HDMI V2.0.
•
Supports HDCP 2.3.
•
Supports 4K signal downscaling
to 1080p.
•
HDCP processing follows
displays to ensure compatibility.
•
The transmission distance of
4K@60Hz 4:4:4 signal from
source to display is up to 10m.
•
The unit can be powered by
HDMI source or by external
power via Micro-USB.
•
Easy to install and simple to
operate.
Advertisement
Table of Contents
Related Manuals for AVGear AVG-SM-2.0
Summary of Contents for AVGear AVG-SM-2.0
- Page 1 Supports 4K signal downscaling to 1080p. • HDCP processing follows displays to ensure compatibility. The AVG-SM-2.0 is an ultra-thin HDMI signal • The transmission distance of manager supporting HDMI V2.0. It is designed to 4K@60Hz 4:4:4 signal from enhance the compatibility between HDMI sources source to display is up to 10m.
- Page 2 AVG-SM-2.0 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and not to be used for maintenance. The functions described in this version are current as at June 10th. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-SM-2.0 SAFETY OPERATION GUIDE To guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: The system must be earthed properly. Please do not use two blade plugs and ensure the alternating power supply ranges from 100v to 240v and from 50Hz to 60Hz.
- Page 4 AVG-SM-2.0 TABLE OF CONTENTS Introduction ........................1 Product Introduction....................1.1 Features ....................... 1.2 What’s in the box ....................1.3 Specifications ....……………………………………………………………………2 Product Appearance and Operation ................3 System Connection ...................... 4 System Diagram ....................4.1...
- Page 5 1. Introduction 1.1 Product Introduction The AVG-SM-2.0 is an ultra-thin HDMI signal manager supporting HDMI V2.0. It is designed to enhance the compatibility between HDMI sources and displays. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 10m. In addition, it supports 4K downscaling to 1080p output, and HDCP follows the display device to ensure device compatibility.
- Page 6 AVG-SM-2.0 2. Specifications Input & Output Input (1) HDMI Input Connector (1) 19-pin type-A female HDMI Output (1) HDMI Output Connector (1) 19-pin type-A female HDMI General Transmission Distance Input≤5m; Output≤5m HDCP Standard Input supports HDCP2.3 EDID Management EDID pass-through...
- Page 7 AVG-SM-2.0 3. Product Appearance 1080p DC 5V Power LED: The LED illuminate green when it is powered on ① DC 5V: Micro-USB power port, insert DC 5V 1A power adapter ② IN: Connect with HDMI source ③ OUT: Connect with HDMI display ④...
