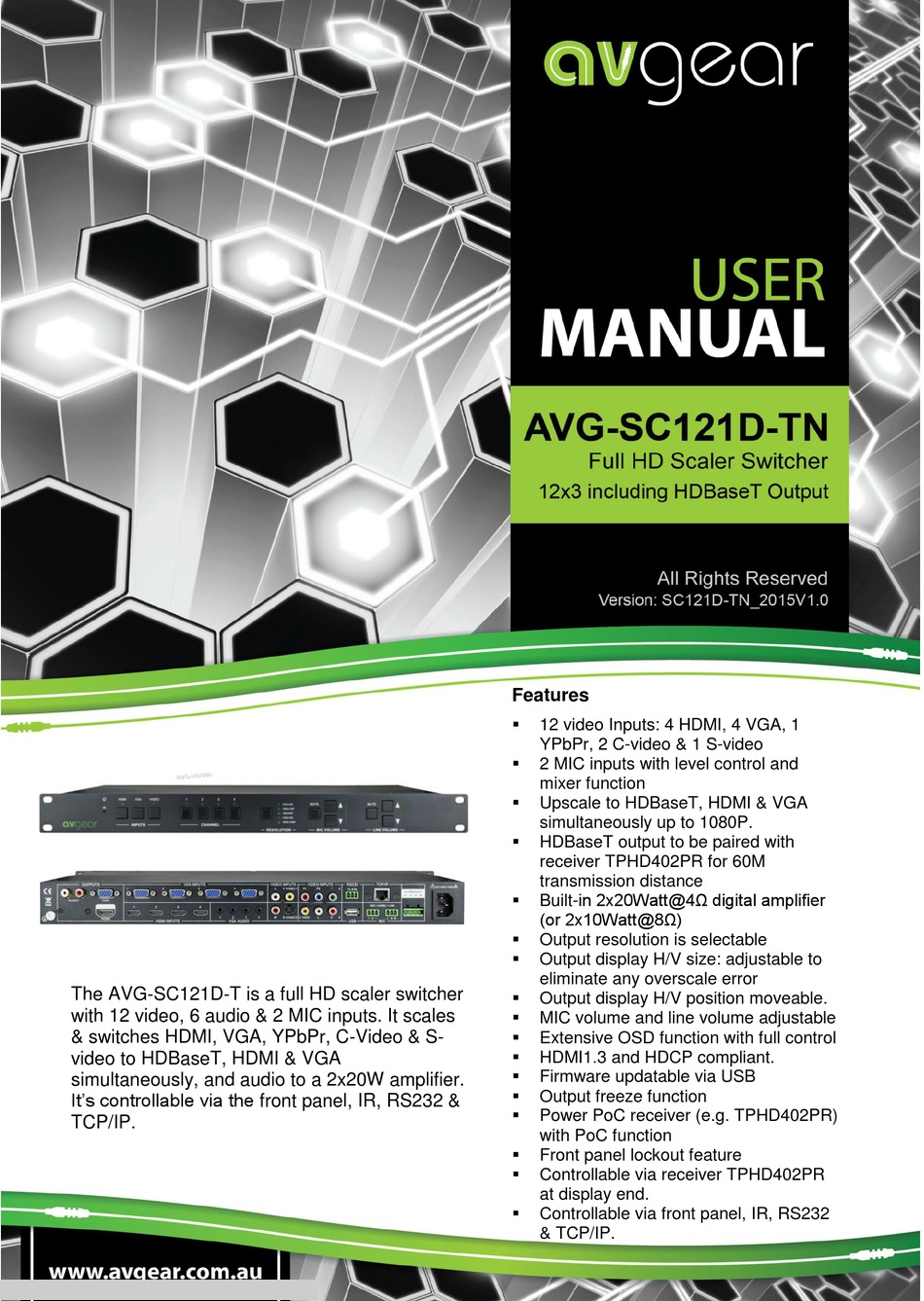

AVGear AVG-SC121D-TN User Manual

AVG-SC121D-T

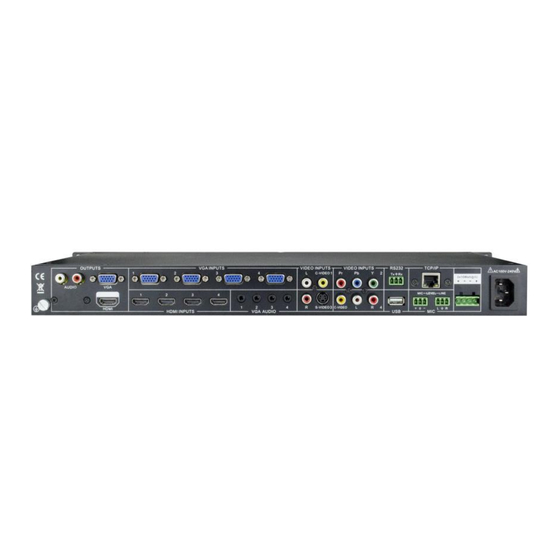

The AVG-SC121D-T is a full HD scaler switcher
with 12 video, 6 audio & 2 MIC inputs. It scales
& switches HDMI, VGA, YPbPr, C-Video & S-
video to HDBaseT, HDMI & VGA
simultaneously, and audio to a 2x20W amplifier.
It's controllable via the front panel, IR, RS232 &
TCP/IP.
Features

12 video Inputs: 4 HDMI, 4 VGA, 1
YPbPr, 2 C-video & 1 S-video

2 MIC inputs with level control and
mixer function

Upscale to HDBaseT, HDMI & VGA
simultaneously up to 1080P.

HDBaseT output to be paired with
receiver TPHD402PR for 60M
transmission distance
 Built-in 2x20Watt@4Ω digital amplifier
(or 2x10Watt@8Ω)

Output resolution is selectable

Output display H/V size: adjustable to
eliminate any overscale error

Output display H/V position moveable.

MIC volume and line volume adjustable

Extensive OSD function with full control

HDMI1.3 and HDCP compliant.

Firmware updatable via USB

Output freeze function

Power PoC receiver (e.g. TPHD402PR)
with PoC function

Front panel lockout feature

Controllable via receiver TPHD402PR
at display end.

Controllable via front panel, IR, RS232
& TCP/IP.
