Summary of Contents for CAS Scale ND 300
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS ..........4 PREFACE ..............6 NAMES AND FUNCTIONS .....6 INSTALLATIONS ...........8 OPERATIONS ..........11 1. General Weighing...........11 2. Weighing with Tare ........11 ERROR MESSAGE ........13 SPECIFICATIONS ........13... -
Page 3: Precautions
PRECAUTIONS... - Page 4 PRECAUTIONS...
-
Page 5: Preface

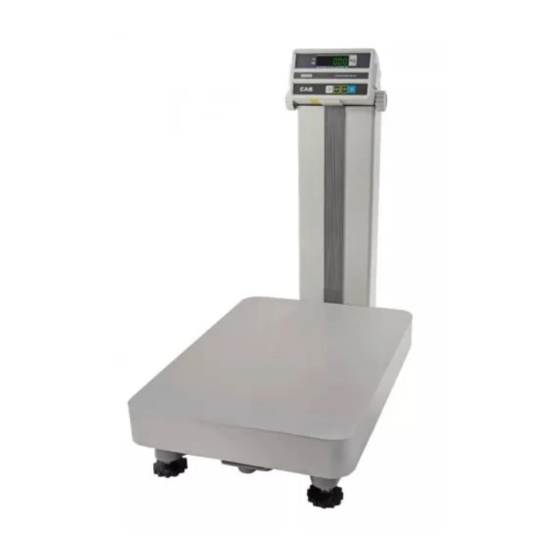

PREFACE & NAMES AND FUNCTIONS PREFACE Thank you for purchasing our CAS ND-300 Series. These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have reliability. - Page 6 PREFACE & NAMES AND FUNCTIONS DISPLAY AND KEYBOARD ■ ND-300 ■ ND-300E, ND-300H ■ KEY FUNCTIONS KEYS FUNCTIONS Used to correct the zero point. Used to enter a tare weight. Used to cancel a tare weight. When the weight is not stable, the display shows the average weight. Turns on or off the display.
-
Page 7: Installations
INSTALLATIONS ND-300 1. Fix with bolts and nuts after inserting the load 2. Please insert support cover into the support cell cable to support pole. and then please fix pole. the ground wire with a bolt and fix the bolt hat up it. - Page 8 INSTALLATIONS ND-300H 1. Insert the power line into the support. 2. Fix a ground wire with bolt then arrange the Fasten with bolts and nuts. power line and loadcell line. 3. Attach the support cover to the support. 4. Attach the head to the support then fasten with stop bolt.
- Page 9 INSTALLATIONS ND-300E 1. Insert the power line into the support. 2. Fix a ground wire with bolt then arrange the Fasten with bolts and nuts. power line and loadcell line. 3. Attach the support cover to the support. 4. Attach the head to the support then fasten with screw.
-
Page 10: Operations
OPERATIONS OPERATIONS ■ When you turn on the power switch, the scale will count "00000" to "99999", then the scale will read "0.0" on the display. This is called the ZERO state. If the scale is not ZERO state though there is nothing on the platter, press the ZERO key. - Page 11 OPERATIONS 2. Weighing with Tare ■ Tare is the weight of a container being used for a commodity. ■ The TARE key subtracts the weight of the container. ① Place a container on ② Press the TARE key. ③ Place a commodity in the the platter.
-
Page 12: Error Message
ERROR MESSAGE & SPECIFICATIONS ERROR MESSAGE To help the customer's understanding, this scale warns the error messages properly. ERROR REASONS SOLUTIONS Err 1 An error of the initial ZERO range Set the platter empty Err 10 Failure of the analog module Call your CAS dealer Err 11 Failure of the digital module... - Page 13 MEMO...
- Page 14 MEMO...
