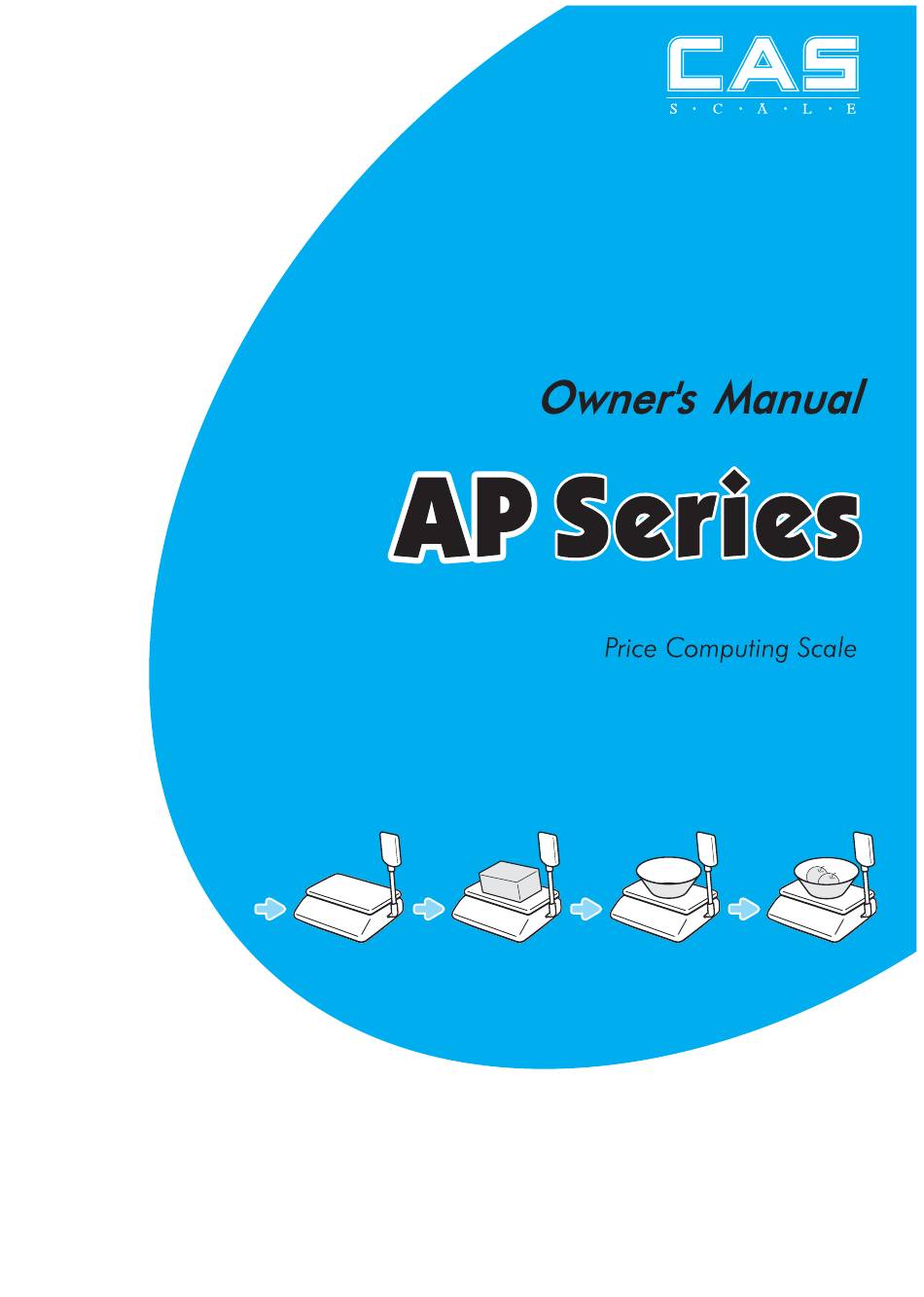

CAS Scale AP Series Owner's Manual

Price computing scale

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CAS Scale AP Series

  • Page 2: Table Of Contents

    CONTENTS ..............6 PRECAUTIONS PREFACE .................8 ..............8 INSTALLATION NAMES AND FUNCTIONS ..........9 .................14 OPERATION I. EX TYPE 1. Simple weighing.............14 2. Weighing with Tare............14 3. Adding up transactions for weighed commodities ..15 4. Adding up transactions for non-weighed .....17 (Fixed Price) commodities 5.
  • Page 3 CONTENTS III. M TYPE 1. Simple weighing ............14 2. Weighing with Tare............14 3. Adding up transactions for weighed commodities ..15 5. Calling up & clearing up previous total price....18 7. Saving PLUs' (Price Look-Up) unit price..... 20 8.
  • Page 4 Table 2: PLUs Memory Capacity ......20 ....29 Table 3: Direct PLUs Memory Capacity Table 4: Printing Ticket Format Steps ....35 ............39 Table 5: ASCII Code Table 6: Error Message ..........41 ..........42 Table 7: Specifications Table 8: CAS AP Series' Comparison ....42...
  • Page 5: Precautions

    PRECAUTIONS...
  • Page 6 PRECAUTIONS...
  • Page 7: Preface

    We believe that your needs will be satisfied and you will have proper reliability in variable weight. This manual will help you with proper operations and care of the AP series. Please keep it handy for the future references. INSTALLATIONS Put a post pipe into a post bracket as Fig.
  • Page 8: Names And Functions

    NAMES AND FUNCTIONS OVERALL VIEW DISPLAY & KEYBOARD 1. AP-EX...
  • Page 9 NAMES AND FUNCTIONS 2. AP-MX 3. AP-M 4-1. AP-EC (Symbol Type)
  • Page 10 NAMES AND FUNCTIONS 4-2. AP-EC (Standard Type) OPTIONAL DISPLAY & KEYBOARD 5-1. AP-Euro (AP-EC Type) 5-2. AP-Euro (AP-EX Type)
  • Page 11 NAMES AND FUNCTIONS 5-3. AP-Euro (AP-M Type) ■ Table 1: Function Keys FUNCTIONS Used to enter all the numeric data. Used to enter a double zeros. Used to clear all the numerics on the unit price display. Used to clear sum total price. Used to clear all the daily total prices.
  • Page 12 NAMES AND FUNCTIONS FUNCTIONS Turns on and off the displays. Used to add up a fixed price item.(non weighed) Used to add up a weighed item. Used to calculate a change. Used to cancel a prior accumulation. Direct PLU(Price Look Up) keys. Used to check the all displays.
  • Page 13: Operation

    OPERATION 1. Simple Weighing ■ Whenever you turn on the scale "dAtE" will be shown on the display after counting up to "0.000". This indicates that you are in "DATE setting mode". ■ If you want to go to "simple weighing mode" simply press "TARE" key twice. It will get to the "simple weighing mode"...
  • Page 14: Adding Up Transactions For Weighed Commodities

    NOTE: To remove TARE function press "TARE" key again after removing the container from the platter. Automatic tare clearing function may not be applied to all of AP series. 3. Adding up transactions for weighed commodities (EX, MX, M) ■ This add-up function is useful for tansaction to purchase several commodities.
  • Page 15 OPERATION ④ Remove the commodity ⑤ Enter another unit price. ⑥ Place the commodity on from the platter. the platter. ⑦ Press ADD key. ⑧ Remove the commodity ⑨ Press TTP CALL key to call from the platter. up total price. ■...
  • Page 16: Adding Up Transactions For Non-Weighed

    OPERATION 4. Adding up transactions for non-weighed (Fixed price)commodity (EX, MX) This is a function to add up several transactions for non-weighed commodity, using “FAD(Fixed price Added)” key. ■ User should keep the platter empty when he/she tries this function in the beginning. ①...
  • Page 17: Calling Up & Clearing Up Previous Total Price

    OPERATION ■ User can call up previous total price simply by pressing “TTP CALL” key. ■ User can clear the sum of transactions simply by pressing “C” key. ■ This function is effective on either that total number of transactions is up to 99 or total amount of money is up to 9,999.99.
  • Page 18: Making Payment

    OPERATION 6. Making Payment (EX, MX) This is the function to make payment or change on the scale. The payment function is effective only if the amount customer pays exceeds the amount of total price. ① Press TTP CALL key. ②...
  • Page 19: Saving Plus (Price Look-Up) Unit Price

    This is the function to save PLUs to memory in the scale. PLU means “Price Look-Up” which includes individual unit price information. ■ AP series have different PLU memory capacity, depending on the product model. ■ There are two different kind of PLUs, direct and indirect PLU.
  • Page 20 OPERATION B) Indirect PLUs ① Enter an unit price. ② Press MW key. ③ Enter a desired number(s) to store a PLU(s) at a specific address(es). You can select any number within the indirect PLU memory capacity. ④ Press MW key. For sure, user can call up the PLU saved.
  • Page 21: Calling Up A Plu

    OPERATION 8. Calling up a PLU A) Direct PLUs ① Press an appropriate direct ② Place commodity on ③ Remove the commodity PLU key you wish to have. the platter. from the platter, then press "C" key to go back to the weighing mode.
  • Page 22: Canceling Daily Total Transaction

    OPERATION *When user is in use of "Unit Price Clear" function it's automatically cleared. ④ Remove the commodity ⑤ Press "C" key to go back from the platter. to the weighing mode. NOTE: Please do not consider of decimal point on the uni t price display at ①...
  • Page 23: Displaying Total Sales

    OPERATION 10. Displaying Daily total sales (EX) This function shows the daily total sales for in dividual PLU or daily total sales record. ■ The total sales amount and the number of transaction are displayed up to 99,999,999.99 and 9,999 respectively. A) Total sales for direct PLU The total price display shows daily total amount of sales ≥...
  • Page 24 OPERATION B) Daily total sales The total price display shows daily total amount of sales ≥1,000.00. The weight display shows daily total amount of sales up to ≤ 999.99. The unit price display shows daily total number of transactions up to 9,999. ①...
  • Page 25: Saving Euro Rate

    OPTION 1. Saving Euro rate (Option) This is function to input Euro rate on your scale. Before start user should check the value in the "TOTAL PRICE" display is "0.00". ① Press the MW key. ② Press the EURO key. If you ③...
  • Page 26: Ec Type

    OPTION 2. Switching Currency A) From local currency to Euro currency ① Press the EURO key in the ② You will go to euro mode. ③ You will see Euro currency normal mode. after 2 seconds. Please make sure Euro lamp is on. NOTE : €...
  • Page 27 OPTION PLU name should be input by using"Table of ASCII Code". Please refer to "Table of ASCII Code" on page 39. A) Inputting PLU Name ① Please plug in(not just turn ② Press any direct PLU key ③ Press appropriate keys you on).The scale display starts you wish to have PLU name, wish to input in accordance...
  • Page 28: Calling Up A Plu

    OPTION 4. Calling up a PLU A) Direct PLUs ① Press an appropriate direct ② Place commodity on ③ Remove the commodity PLU key you wish to have. the platter. from the platter, then press "C" key to go back to the weighing mode.
  • Page 29 OPTION A) Nomal Data Mode a. Setting "Date" ① Please turn on the power. ② Using keys you can input ③ Press keys as above to The scale display starts date information. The "Date" input, for example, "2003/". counting from "99999" to information will be on the "00000".
  • Page 30 OPTION ■ You can press either"C" key until final byte is completed or simply "TARE" key to go to barcode setting mode at the beginning. b.Setting "Barcode" This setting is to select printing barcode on ticket or not. ① In barcode setting mode ②...
  • Page 31 OPTION a. Inputting Store Name ① Please plug in (not just turn ② Store name input will be ③ Input appropriate keys you on), then scale display displayed on the ticket when wish in accordance to starts counting from "99999" user prints out.
  • Page 32: Using Printer

    OPTION ■ User may follow the same process as done in "Store Name" setting step for other ticket format setting. Table 4: Printing Ticket Format Step Printing Ticket Format Step Max. bytes Remark Setting Store Name 24 bytes If user inputs bytes (letters) less than maximum bytes for each setting it is better to input last character into the Telephone...
  • Page 33 OPTION B) Printing ticket (receipt) for transaction a. One item ① To make printer workable ② Input a specific unit price of ③ Press "Pay" key to make with the scale press "*" key on commodity, for example, payment transaction and scale keyboard.
  • Page 34 OPTION b. More than two items ① To make transactions more ② Input a unit price of commo ③ Then, press "ADD" key to than one item you can dity, for example, 2.99 and continue other transactions. simply use "ADD" key on the place the commodity on the Then remove the commodity scale for each commodity.
  • Page 35 OPTION ⑦ Press "ADD" key to continue ⑧ To get total price press ⑨ And press "PAY" key to other transactions. Then "TTP CALL" key. make payment transaction, remove it from the platter. and input the amount received from customer, for example,10.00 ⑩...
  • Page 36: Ascii Code

    ASCII CODE T able 5: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ < ¥ > ■ Alphabet A ~ F keys for AP-EX, EC (Euro) ■ Alphabet A ~ F keys for AP-MX, M...
  • Page 37: Error Message

    ERROR MESSAGES Table 6: Error Messages DISPLAY MEANINGS SOLUTIONS Err 1 or Help 1 An error of the initial zero range Set the platter empty An overflow of the unit price Err 4 or Help 4 Press C key multiplication Err 6 An overflow from ADD key Press C key...
  • Page 38: Specifications

    SPECIFICATIONS Table 7: Specifications MODEL AP-1 3 x 0.001 kg 6 x 0.002 kg 15 x 0.005 kg (6 x 0.002 lb) (15 x 0.005 lb) (30 x 0.01 lb) CAPACITY (Dual) 6 x 0.002 kg 15 0.005 kg 30 x 0.01 kg (15 x 0.005 lb) (30 0.01 lb) (60 x 0.02 lb)
  • Page 39: Simple Weighing

    AP-1 SERIES COMPARISON TABLE Table 8: AP-1 Series Comparison Functions AP-EX AP-MX AP-M AP-EC Simple Weighing • • • • Weighing with Tare • • • • Adding up Transactions for weighed • • • commodities Adding up Transactions for non-weighed •...
  • Page 40 MEMO...
  • Page 41 MEMO...

This manual is also suitable for:

Ap-1 seriesAp-exAp-mxAp-mAp-ec
