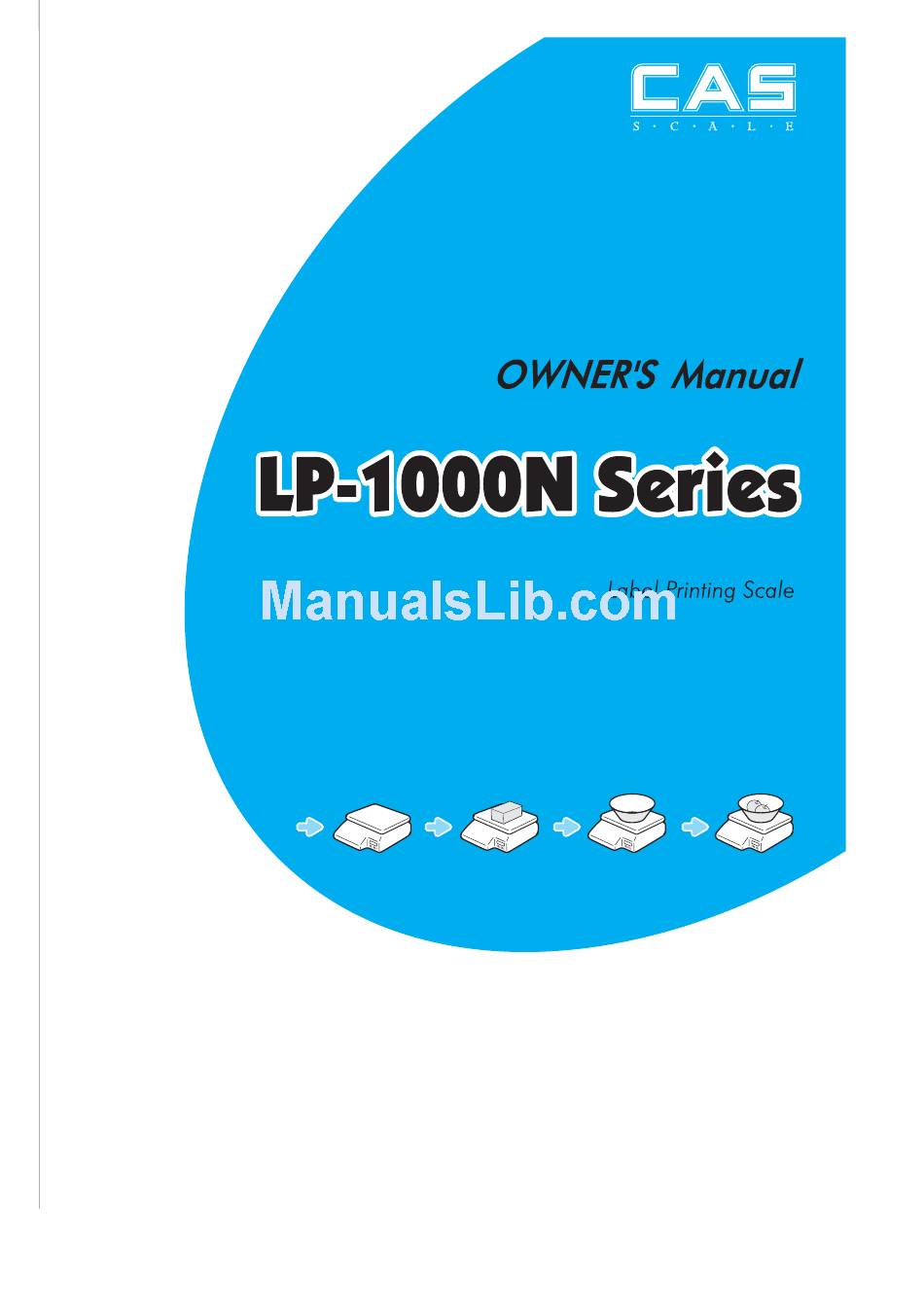

CAS Scale LP-1000N series Owner's Manual

Hide thumbs Also See for LP-1000N series:
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP-1000N series and is the answer not in the manual?

Questions and answers

Related Manuals for CAS Scale LP-1000N series

Summary of Contents for CAS Scale LP-1000N series

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ..................5 1. Installation Procedures ...............7 1.1 Cautions....................7 1.2 Assembling the Display Pole ..............7 1.3 Installing the Label Roll..............9 2. Keypad & Display ................11 2.1 Numeric Keypad ................11 2.2 PLU Keypad..................12 2.3. Displays....................14 ................. 14 2.3.1 Weight Display ................

  • Page 3: Error Messages

    4.7 SET 4.7.1 Programming the Date (SET #1) 4.7.2 Programming the Time (SET #2) 4.7.3 Programming the Department Number (SET #3) 4.7.4 Programming the Label (SET #4) 4.7.5 Programming the Adjust Number (SET #5) 4.7.6 Programming the Printing Information (SET #6) 4.7.7 Programming the Auto Print Function (SET #7) 4.7.8 Programming the Baud Rate (SET #9) 4.7.9 Programming the SIGNS (SET #10)

  • Page 4: Precautions

    PRECAUTIONS...
  • Page 5 Attention Make sure to plug your scale into the proper power outlet. For maximum performance, plug into a power outlet 30 minutes for warm up before use. Grab on the bottom of Grab on the bottom of For consistent and accurate For consistent and accurate Avoid sudden shock to Avoid sudden shock to...

  • Page 6: Installation Procedures

    1. Installation Procedures 1.1 Cautions A.) Environment: This scale must be installed in a dry and liquid free environment. B.) Location: This scale must be placed on a flat and stable surface. Please keep the scale away from oscillating fans, ventilation systems, or drafts as these air disturbances can be picked-up by the scale and may cause incorrect weight readings.
  • Page 7 Feed the Pole Display connectors down through the Pole Display Bracket and up through the opening in the scale base. (See fig.) Remove Ferrite Core NOTE: Remove the Ferrite Core before attempting to feed the Display Connectors into the Pole Display Bracket. Also you may need to remove the Bracket Cover before feeding the Pole Display connectors into the Pole Display Bracket.

  • Page 8: Installing The Label Roll

    1.3 Installing the Label Roll To install the label roll at any time you must follow the directions in this section. Remove the printer front-cover and the printer side-cover. As you can see there is detailed diagram affixed onto the inside of the printer side-cover. Use this diagram (or this manual) for future reference on how to properly install the label roll.
  • Page 9 Take the new roll of labels and find the ending. Peel-off and discard about 3 labels. Place the label in the scale and thread the backing through the appropriate places. Please view the checkpoints on the diagram. Feed the backing paper over the Paper Pressure Shaft lifting the Pressure Plate in order to place backing between the two ( ①...

  • Page 10: Keypad & Display

    2. Keypad & Display 2.1 Numeric Keypad The Numeric Keypad is used to enter all numerical data in PGM Mode. In REG Mode the Numeric Keypad is used to enter prices, quantities and counts. (See Fig. below) TARE PRT/* PRT/* SAVE FEED Function...

  • Page 11: Plu Keypad

    2.2 PLU Keypad The PLU Keypad is used to enter alpha-numerical data. To use the keypad for programming you must remove the pull-out sheet. To use the PLU Keypad in REG mode, you can write the name and number of the PLU’s on the corresponding speed keys on the pull-out sheet. All commodity names, message data, and store name and address are typed using these keys.

  • Page 12: Key Function

    Function DATE This key displays the time and date in REG Mode. TIME Used to go to PROGRAM Mode and ACC Mode. MODE This key works like a CAPS LOCK key on a computer keyboard. It is used to type capital letters.

  • Page 13: Displays

    2.3. Displays 2.3.1 Weight Display The WEIGHT display shows the weight of an item on the platter whether it be positive or negative and within the range of the scale. The WEIGHT display also indicates if the scale is at ZERO or if there is a tare entered into the scale by way of a ZERO and NET lamps.
  • Page 14 Front View: (with Printer Front Cover removed) LABEL PEEL SENSOR THERMAL PRINTHEAD PEEL-OFF BAR RED RUBBER ROLLER IR LED ASSEMBLY LABEL PEEL SENSOR: This sensor is used in conjunction with IR LED to detect if there is a label waiting to be removed. THERMAL PRINTHEAD: The Thermal Printhead is the part that does the actual printing.

  • Page 15: Operation

    3. Operation 3.1 REG mode Operations 3.1.1 Simple Weighing There are two types of sales you can generate; PLU Sales and NON-PLU Sales. PLU Sales are sales based on a programmed PLU whereas Non-PLU Sales are sales you generate without calling up a PLU. PLU Sales : To call up a PLU, simply type the PLU’s number on the Numeric keypad and then press the PLU key.

  • Page 16: How To Use Tare

    0 2 0 0 0 1 6 0 0 5 0 0 0 PRICE PER LB. PRICE PER LB. TOTAL ($) PRICE PRICE PER LB. PRICE PER LB. TOTAL ($) PRICE CAS SCALE CORPORATION CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 PRT/* Press the key.

  • Page 17: Multiple Labels

    3.1.4 Multiple Labels You can generate identical labels by using multiple label printing. To use multiple label printing, and press the X key, enter the quantity of duplicate labels you need, and then press the PRT/* key. ① Call up a PLU. ②...

  • Page 18: Auto Printing (Auto Mode)

    1.00 0 2 0 0 0 1 6 0 0 0 5 1 0 PRICE PER LB. PRICE PER LB. TOTAL ($) PRICE CAS SCALE CORPORATION +82-31-820-1100 PRT/* Press Speed key or press 1 key on the Put an item on the A label will be issued platter.

  • Page 19: Program Mode

    4. PROGRAM Mode 4.1 System Maps The PROGRAM Mode allows you to program PLU information, Ingredient Messages, Shop Name, Head data, Label Information and other various types of information. To go to PROGRAM Mode, press 1 on the numeric keypad and then the MODE key. ...

  • Page 20: Plu Programming

    4.2 PLU Programming PLU means Price Look Up. We store information such as the name of an item, its price, tare weight, etc. in the scale’s memory using PLU numbers. Every PLU number has seven different types of information programmed in it. ...
  • Page 21 Char Qty 0~28 PRT/* NAME name Current Line Current Character Char Qty 0~28 PRT/* SHIFT SHIFT ( 0 ~ 1000 ) PRT/* PRT/* (0 ~ 999999 ) PRT/* PRT/* Ex) 1.50 as price ( 0 ~ 999 ) PRT/* PRT/* Ex) 15 as life PRT/* PRT/*...
  • Page 22 (0 ~ 99) PRT/* PRT/* Ex) “77” as gCode PRT/* PRT/* PRT/* Don’t save current PLU Erase current PLU 1) To go to PROGRAM mode, press the number 1 key then the MODE key. 2) The display shows: “PLU”. 3) Press PRT/* key. The display shows “PLUno 4000”. The number in the UNIT PRICE display indicates the amount of empty PLU’s ready to be programmed.
  • Page 23 10) The display shows “nAME 02.01”. Type in the second line of name. 11) Press the PRT/* key. 12) The display shows “MSGno”. 13) Press the PRT/* key. (If you do not wish to program the Message No., please press key).

  • Page 24: Preset Keys Programming

    4.3 Preset keys Programming The preset keys are used to quickly access a PLU with only one key press. For example, if ⑦ you had preset key programmed to call up PLU number 100, all you need to press is preset ⑦...

  • Page 25: Message (Ingredients) Programming

    4) The display shows “S kEy 0”. Press the Preset key (1 to 54) you wish to program. The number in the Unit Price Display is the number of the Preset key you have just pressed. The number in the Total Price Display is the PLU number that has been assigned to that Preset key. 5) Type the number of the PLU you wish to assign to that Preset key.

  • Page 26: Programming The Head Data

    1) To go to PROGRAM mode, press the number 1 key then the MODE key.  2) Press key two times. The display shows “MSG”. 3) Press PRT/* key. The display shows “MSGno 1000 0”. 4) Type the number of the MSG you wish to program or edit using the Numeric Keypad. Remember the number can be from 1 to 1000.

  • Page 27: Programming The Shop Data

    How to program the Head data 1) To go to PROGRAM mode, press the number 1 key then the MODE key.  2) Press key three times. The display shows “HEAd”. 3) Press the PRT/* key. The display shows “HEAd 01.01”. The numbers in the UNIT PRICE display represent the line number and character number where your cursor is located.
  • Page 28 How to program the Shop data 1) To go to PROGRAM mode, press the number 1 key then the MODE key.  2) Press key four times. The display shows “SHoP”. 3) Press the PRT/* key. The display shows “SHoP 01.01”. The numbers in the UNIT PRICE display represent the line number and character number where your cursor is located.
  • Page 29 4.7 SET SET MENU DEFINITIONS Date (For details, see page 33) SET #1 Time (For details, see page 34) SET #2 Department Number SET #3 (For details, see page 35) Label Length SET #4 (For details, see page 36) Label Format (For details, see page 37) Label Mask (For details, see page 38)
  • Page 30 SET MENU DEFINITIONS Adjust SET #5 (For details, see page 42) Printing Information SET #6 (For details, see page 44) Auto Printing SET #7 (For details, see page 46) Baud Rate SET #9 (For details, see page 47) Weight Sign SET #10 (For details, see page 48) Price Sign...
  • Page 31 SET MENU DEFINITIONS Currency Enable SET #11 (For details, see page 52) Decimal Point And Currency Rate (For details, see page 52) Result Decimal Point (For details, see page 52) Currency Total Sign (For details, see page 53) Peel Sensor SET #12 (For details, see page 55) Head Temperature...

  • Page 32: Programming The Date (Set #1)

    4.7.1 Programming the Date (SET #1) PRT/* PRT/* Input the SET No. Ex) 2005/04/19 SET #1 DD.MM.YY (Day.Month.Year) Current Date: 5 / 2 / 2004 How to program the date 1) To go to PROGRAM mode, press the number 1 key then the MODE key. ...

  • Page 33: Programming The Time (Set #2)

    4.7.2 Programming the Time (SET #2) PRT/* PRT/* Input the SET No. Ex) 15:28:00 SET #2 HH.MM.SS (Hour.Minute.Second) Current Time: 11:23:45 How to program the time 1) To go to PROGRAM mode, press the number 1 key then the MODE key. ...

  • Page 34: Programming The Department Number (Set #3)

    4.7.3 Programming the Department Number (SET #3) PRT/* PRT/* Input the SET No. Ex) “98” as the department # SET #3 PRT/* (0~99) How to program the department number 1) Press the 1 key followed by the MODE key. ê 2) Press the key 5 times.

  • Page 35: Programming The Label (Set #4)

    4.7.4 Programming the Label (SET #4) The label format type controls the label size and barcode format. 1) Label length PRT/* PRT/* Input the SET No. SET #4 PRT/* (1~99) How to program the label length 1) To go to PROGRAM mode, press the number 1 key then the MODE key. ...
  • Page 36 2) Label format SET #4 PRT/* 0~30: Refer to Appendix for label format 31~36: Free Format How to program the label format 1) To go to PROGRAM mode, press the number 1 key then the MODE key.  2) Press key five times. 3) The WEIGHT display shows “SEt”.
  • Page 37 3) Label Mask PRT/* PRT/* Input the SET No. SET #4 Input the 4 digit Hexadecimal Number. (Refer to the Chart and example below.) PRT/* Place a “1” in the block below an item if you want to print that item on the label. Place a “0” in the block if you don’t want to print that item on the label.
  • Page 38 4) Label Barcode PRT/* PRT/* Input the SET No. SET #4 PRT/* Enter barcode type number. (from chart on next page) How to program the label barcode 1) To go to PROGRAM mode, press the number 1 key then the MODE key. ...
  • Page 39 Barcode Format Chart 9 10 11 12 13 14 15 16 17 18 TYPE EAN13 EAN13 EAN13 EAN13 EAN13 EAN13 EAN13 W W W W W C EAN13 W W W W C EAN13 S W W W W W C EAN13 EAN13 EAN13...
  • Page 40 5) C Label PRT/* PRT/* Input the SET No. SET #5 PRT/* 0 = Gap Labels 1 = Continuous Strip How to program the CLabel 1) To go to PROGRAM mode, press the number 1 key then the MODE key. ...

  • Page 41: Programming The Adjust Number (Set #5)

    4.7.5 Programming the Adjust Number (SET #5) - ADJUST is to adjust the position of label. - FEED is to feed label(or receipt).
  • Page 42 How to program the adjust number 1) To go to PROGRAM mode press 1 by using numeric keys and MODE key. 2) Press key five times. 3) The WEIGHT display shows “SEt”. 4) Press PRT/* key, “SEt EntEr”. 5) Press “5” key and PRT/* key. 6) The display shows “AdJSt EntEr 30 ”.

  • Page 43: Programming The Printing Information (Set #6)

    4.7.6 Programming the Printing Information (SET #6) The printing information controls the label size, PLU item description and barcode format.
  • Page 44 How to program printing information 1) To go to PROGRAM mode, press 1 by using numeric keys and MODE key. 2) Press key five times. 3) The WEIGHT display shows “SEt”. 4) Press PRT/* key, “SEt EntEr”. 5) Press 6 key and PRT/* key. 6) The display shows “PmodE EntEr 0”.

  • Page 45: Programming The Auto Print Function (Set #7)

    4.7.7 Programming the Auto Print Function (SET #7) The auto print function is used to determine when an automatic buffered label should be printed or buffered. The number stored in auto print is a weight value which is equal to the amount of stabilized positive weight variance needed to print or buffer a label.
  • Page 46 4.7.8 Programming Baud Rate (SET #9) How to program baud rate 1) To go to PROGRAM mode, press 1 by using numeric keys and MODE key. 2) Press key five times. 3) The WEIGHT display shows “SEt”. 4) Press PRT/* key, “SEt EntEr”. 5) Press 9 key and PRT/* key.
  • Page 47 4.7.9 SIGN (SET #10) How to enter currency/weight sign settings. You can modify scale to adjust local law (currency, weight unit, dual currency, etc) NOTE: reference ASCII code table for signs 1) To go to PROGRAM mode, press 1 by using numeric keys and MODE key. 2) Press key 5 times.
  • Page 48 5) You can enter weight units up to 3 letters. (For example, kilogram (kg) consists of 'k' and 'g'. Enter k (107) in first letter and g (103) in second letter.) 6) After inputting the entire weight unit signs, the display shows "WEiGH ForMAt 0." 7) You can choose 0 (NO use) or 1 (Yes use) by pressing PRT/* key finish up inputting weight unit signs.
  • Page 49 7) You can choose 0 (NO use) or 1 (Use unit price and printing total price's first unit sign) or 2 (Use unit price and printing total price's last sign). After Pressing PRT/* key to save, you can finish inputting unit Price of weight sign. 8) For example, you want to set format 1 and the total price's first sign is "$", you can see the unit price is $/kg.
  • Page 50 1) The display shows "SiGn". 2) Press 3 key and the display shows "totAL F-SiGn C1____0" 3) Type the first letter of total price's first unit sign by using ASCII CODE. 4) Type the second and third letter of total price's second, third unit sign by using ASCII CODE. 5) You can type up to 3 letters for Total price first sign.
  • Page 51 1) Enabling currency display PRT/* 1) The display shows “CUrr”. 2) Press the 1 key and the display shows “CUrr USinG 0”. 3) Select “0” (No use) or “1” (Use Currency). Press PRT/* key to save and exit. 2) Set decimal point and currency rate 9999999 PRT/* PRT/*...
  • Page 52 4) Setting signs of calculated total price PRT/* PRT/* PRT/* PRT/* PRT/* PRT/* 1) The display shows “CUrr”. 2) Press the 4 key and the display shows “CUrr F-SiGn C1 0”. 3) Enter the first letter of the calculated total price’s first sign.(Reference ASCII Code) 4) Enter the second and third letters of the calculated total price’s first sign.

  • Page 53: Set Printer Sensors (Set #12)

    9) You can enter up to 3 letters for "total price last sign." For example, you want to print YTL (Turkey currency symbol) in the last place, enter 89(Y), 84(T), 76(L), and then, you will see YTL in the calculated total price's last place. 10) The display shows "CUrr ForMAt 0".
  • Page 54 4) Press PRT/* key and the display shows "SEt EntEr 0". 5) Press 1 key and 2 key and PRT/* key. 1) Peel-off sensor peel-off sensor in not peel-off sensor is covered(opened) covered(closed) 1) The display shows "SEt PoFF". 2) Press Enter key and the display shows "SEt 130 PoFF 8" 3) Read set value when peel-off sensor is covered (closed).
  • Page 55 2) Thermal Head sensor 1) The display shows "SEt PoFF". 2) Press key and the display shows "SEt HEAd" 3) Press Enter key and the display shows "SEt 100 HEAd 118" 4) Set heating value (factory setting is 100) deepens on printing darkness. (for light printing set value below 100, and set value above 100 to get darker results) NOTE: Inputting higher number may damage the thermal head.
  • Page 56 1) The display shows "SEt HEAd". 2) Press key and the display shows "SEt PEnd" 3) Press Enter key and the display shows "SEt 130 PEnd 248" 4) Open label cover and head-up lever to adjust label paper onto gap sensor. NOTE: make sure put label paper onto gap sensor where the paper gap is located to make a gap sensor open.
  • Page 57 1) The display shows "SEt PEnd". 2) Press key and the display shows "SEt HEAdUP" 3) Press Enter key and the display shows "SEt 130 HdUP 254" 4) Check display value when you OPEN label cover and head-up lever. NOTE: Compare value when head-up lever is open and close. 5) Enter average value (172) of open head-up lever (89) and close value (254).
  • Page 58 4.8 INIT (Initialize PLU/MSG data and Disabling ¼ and ½ keys) You can initialize PLU data, Ingredient Message data or ALL data. (both PLU and ING) You can also enable or disable the ½ or ¼ keys. PRT/* Clear Memory Clear Memory PRT/* PRT/*...

  • Page 59: Pass (Password Function)

    4.9 PASS (Password function) You can protect the programming mode functions by using a password. The password must be at least 4 numbers long with a maximum of 6 numbers allowed. (Only numbers may be used.) Note: The PASS function must be enabled in the CAL 4 mode. Programming the Password Enter Password Enter Password...

  • Page 60: Account Mode

    5. ACCOUNT Mode ACCOUNT Mode is used to access and clear Sales Totals, perform printhead checks and execute Scale to Scale file transfers. 5.1 System Maps To go to the ACCOUNT Mode, press the number 2 key then the MODE key. To navigate through the ACCOUNT Mode Main Menu you can use the key or key.

  • Page 61: Grand Total

    5.2 X Report (Read only) There are four types of X Sales Reports: Grand Total, ALL PLU’s, Non-PLU and Individual PLU’s. Each of the reports prints on a label and contains the time and date of the last reset report (Z report), the current time and date and other sales data such as total weight, total sales and total quantity information.

  • Page 62: All Plu

    5.2.2 All PLU There are two types of PLU Sales reports, Individual PLU’s or All PLU’s. The All PLU report will generate a total sales label for ALL active normal PLU’s (not including non-PLU’s) Report : All PLU PRT/* 09.02.04 17:11:19 / 09.02.04 17:21:32 Weight Price Q’ty...

  • Page 63: Non-Plu

    5.2.4 Non-PLU The Non-PLU sales report includes the total sales information for all Non-PLU transactions. Report : non PLU PRT/* 09.02.04 17:11:19 / 09.02.04 17:21:32 Weight Q’ty Price 2.060 39.48 To take the ALL PLU Sales Report, 1) To go to the ACCOUNT mode, press the number 2 key and then the MODE key. º...

  • Page 64: Grand Total

    5.3.1 Grand Total PRT/* The Grand Total Reset Report will reset the sales total information in memory for both the normal PLU’s and Non-PLU’s. It will clear the Weight, Price and Quantity sold information for ALL PLU’s. 1) To go to the ACCOUNT mode, press the number 2 key and then the MODE key. 2) Press the once.

  • Page 65: Non-Plu

    5.3.3 Non-PLU PRT/* The Non-PLU Reset Report will reset the sales total information in memory for the non-PLU’s. It will clear the Weight, Price and Quantity sold information for ALL non-PLU’s. 1) To go to the ACCOUNT mode, press the number 2 key and then the MODE key. 2) Press the once and the display shows “2 rPt”.

  • Page 66: Printhead Check (Chess)

    5.4 Printhead Check (CHESS) The CHESS function allows you to check the condition of the thermal print head. This test produces several different print patterns that allow you to determine if there are any burned out or shorted dots on the printhead. PRT/* PRT/* PRT/*...

  • Page 67: Error Messages

    6. Error Messages The PLU number you have called up does not exist. Error 1 The PLU number you have called up is out of range. Error 2 The weight on the platter is not stable or you have pressed the keys Error 3 before the weight became stable.

  • Page 68: Specifications

    7. Specifications MODEL LP-1000 CAPACITY RESOLUTION 30.00 Lbs x 0.01 Lbs (15.000 kg x 0.005kg) TARE -30.00 Lbs ~ 0.01 Lbs (-5.99 kg ~ 0.005kg) WEIGHT DISPLAY 4 DIGITS (USA) 5 DIGITS (EX - USA) UNIT PRICE DISPLAY 4 DIGITS (USA) 6 DIGITS (EX - USA) 4 DIGITS (USA) 7 DIGITS (EX - USA)

  • Page 69: Label Format

    SELL BY WT/LBS UNIT PRICE UNIT PRICE TOTAL ($) PRICE PACKED ON PACKED ON PACKED ON PACKED ON CAS SCALE CORPORATION CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 #1 (2 - Line Commodity) #2 (With Ingredient) #8000 PACKED ON PACKED ON SELL BY...
  • Page 70 PACKED ON NET WT./LBS NET WT./LBS 1.51 1.51 04.06.04 04.06.04 Thank You Thank You CAS SCALE CORPORATION CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 Kubota TOTAL PRICE (S) #4 (2 - Line Commodity) #5 (1 - Line Commodity #1) #3600 SELL BY...
  • Page 71 1.51 1.51 1.51 1.00 1.51 1.00 NET WT/CT PRICE/lb NET WT/CT PRICE/lb TOTAL PRICE TOTAL PRICE CAS SCALE CORPORATION CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 PACKED ON #13 (2 - Line Commodity) #14 (With Ingredient) SELL BY #2810 (48 x 40)
  • Page 72 1.51 1.00 1.51 1.00 NET WT/CT PRICE/lb NET WT/CT PRICE/lb TOTAL PRICE TOTAL PRICE CAS SCALE CORPORATION CAS SCALE CORPORATION #24 (2 - Line Commodity #1) #25 (1 - Line Commodity) #2834 (48 x 68) PACKED ON SWEETENED CONDENSED MILK SELL BY <VERY SWEET and STICKY>...

  • Page 73: Setting Method

    (58 x 60) 0.512 0.51 1.00 0 034567 000517 0 034567 000517 0.51 0.512 1.00 CAS SCALE CORPORATION CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 #29 (2 - line Commodity #1) #30 (2 - line Commodity #2) name Advance Label Format Setting Method (Size,mm) 1) Set label format #8000 at SET#4-2.
  • Page 74 Setting Up the Label These procedures explain how to correctly set up the label in the LP-1000N. They can be used when changing from one label style to another or simply to perform a fine adjustment of the print location on a label that is already installed in the scale.
  • Page 75 PRICE PER LB. TOTAL ($) PRICE PRICE PER LB. PRICE PER LB. 1.00 TOTAL ($) PRICE CAS SCALE CORPORATION 0 2 0 0 0 1 6 0 0 0 5 1 0 CAS SCALE CORPORATION +82-31-820-1100 +82-31-820-1100 CAS SCALE CORPORATION...
