Sonic Senseamp - Asus Rampage V Extreme Manual

Sonic SenseAmp

Sonic SenseAmp is an exclusive ROG invention that is a built-in headphone AMP on
the onboard audio circuit with three AMP levels adjustment. It detects your headphone's
impedance and adjusts the built-in AMP accordingly.
Sonic SenseAmp only works on front panel.

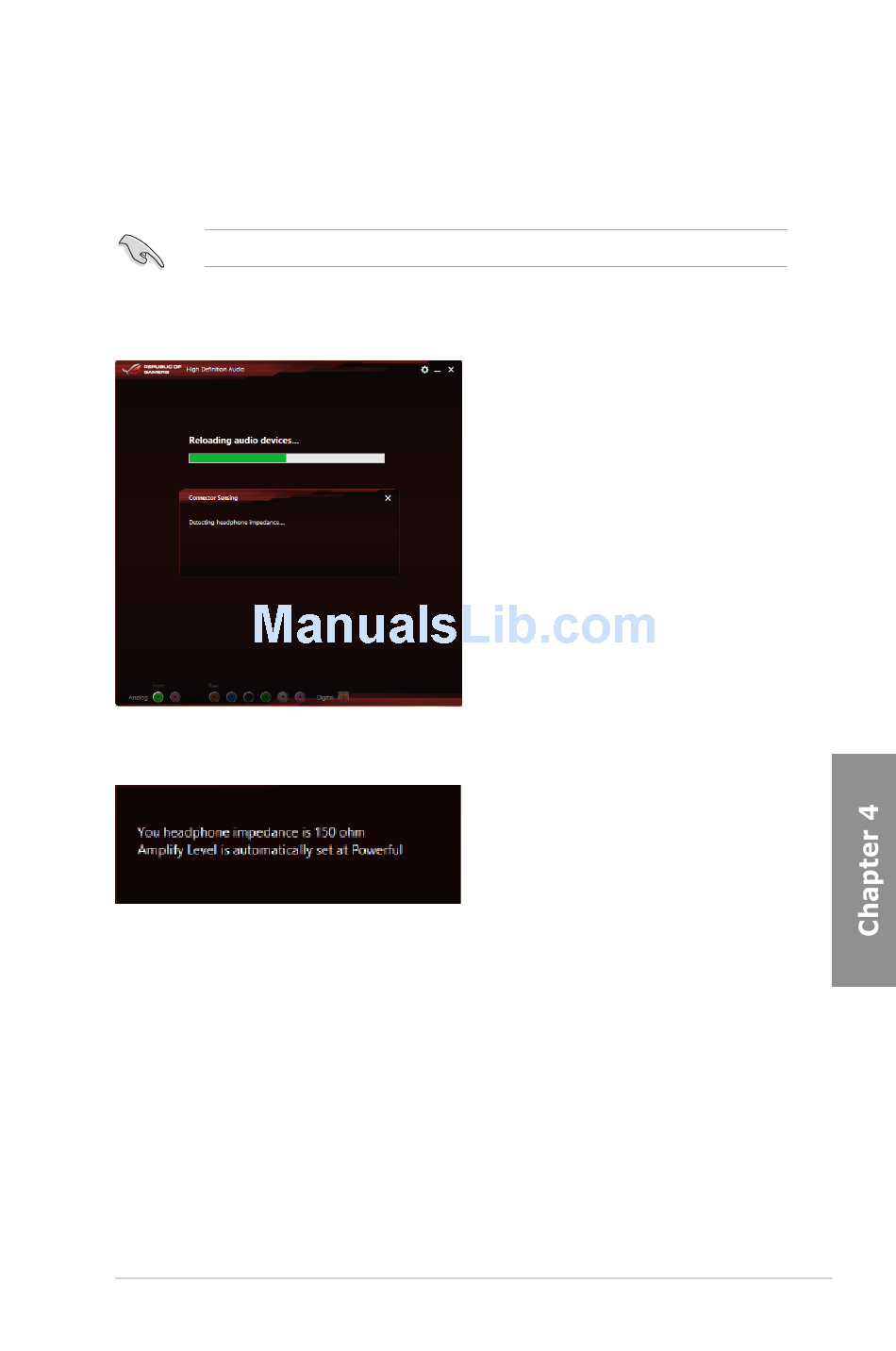

When you plug a headphone into the front headphone jack, Sonic SenseAmp displays a pop-
up window that displays "Detecting headphone impedance".
After detecting the headphone's impedance, Sonic SenseAmp displays another pop-up
window similar to the one shown below.
Refer to the table below on the behavior of Sonic SenseAmp when adjusting the impedance
of the detected headphone:
65 ohm or below
65 ohm to 150 ohm
> 150 ohm
Other device
ASUS RAMPAGE V EXTREME
Amplify Level is automatically set at Performance
Amplify Level is automatically set at Powerful
Amplify Level is automatically set at Extreme
The device plugged in detected as other device
4-43
