- Page 1 Electronic Service Manuals This electronic document is provided as a service to our custom- ers. We do not create the contents of the information contained in this document. Should you have detailed questions pertaining to the information contained in this document, you may contact Michco, or the manufacturer which provided the original information in this electronic deliverable.

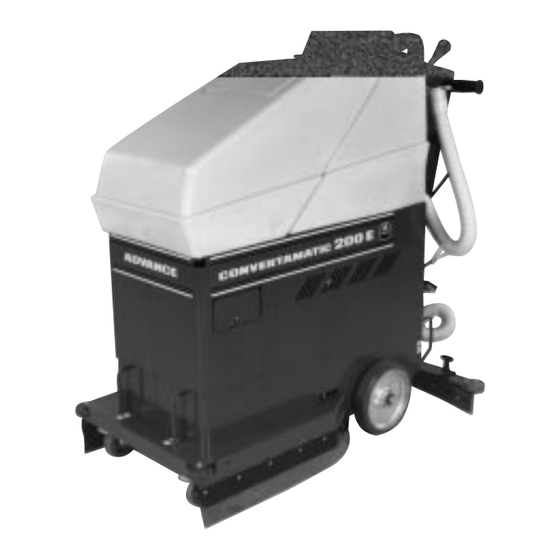

- Page 2 ™ Convertamatic 200E OPERATOR MANUAL Advance MODELS 56324004, 56324006 revised 3/97 Form Number 56041262 This manual replaces revisions 11/92 and 5/93...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ Page Introduction................. 2 Parts and Service..............2 Nameplate................2 Uncrating................2 Important Safety Instructions............ 3 Importantes Mesures de Securite ..........4 Grounding Instructions .............. 5 Know Your Machine ..............6 Preparing the Machine for Use..........7 Brush or Pad Holder Installation .......... -
Page 4: Introduction
INTRODUCTION ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ This manual will help you get the most from your Advance Convertamatic™ 200E. Read it thoroughly before operating the machine. Note: Bold numbers in parentheses indicate an item illustrated on page 6. This product is intended for commercial use only. ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ PARTS AND SERVICE Repairs, when required, should be performed by your Authorized Advance Service Center, which employs factory trained... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before use. WARNING! To reduce the risk of fire, electric shock, or injury: Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing. -
Page 6: Importantes Mesures De Securite
IMPORTANTES MESURES DE SECURITE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ L’utilisation d’un appareil électrique demande certaines précautions: LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL) AVERTISSEMENT: Pour réduire les risques d’incendie, de choc électrique ou de blessure: Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est pas utilisé... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ WARNING! This machine must be properly grounded to protect the operator from electrical shock. Read the safety instructions below before operating this machine. GROUNDED OUTLET BOX 120 volt machines have this kind of three-prong plug at the end of a three-wire electrical cord. The grounding pin on this plug grounds the machine when it is plugged into a three-prong outlet. -
Page 8: Know Your Machine
KNOW YOUR MACHINE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ As you read this manual, you will occasionally run across a bold number in parentheses - example: (2). These numbers refer to an item shown on this page. Refer back to this page whenever necessary, to pinpoint the location of an item mentioned in the text. -
Page 9: Preparing The Machine For Use
PREPARING THE MACHINE FOR USE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ BRUSH OR PAD HOLDER INSTALLATION WARNING! Moving parts - turn the Master Key Switch (11) OFF and unplug the Power Cord (21) before servicing. IMPORTANT! Empty the tanks before tipping the machine back to install or change a brush, or to install, change or turn over a pad. -
Page 10: Operating The Machine
OPERATING THE MACHINE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ WET SCRUBBING Note: Bold numbers in parentheses indicate an item illustrated on page 6. Follow the instructions in the Preparing The Machine For Use section of this manual. Plug the Power Cord (21) into a properly grounded electrical outlet. Then turn the Master Key Switch (11) ON. The Green Light (8) will light up. -
Page 11: Dry Buffing
OPERATING THE MACHINE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ DRY BUFFING Make sure that the floor is clean, dry, and coated with a good floor finish product before polishing. Install a polishing brush or pad on the machine. Turn the Master Key Switch (11) ON. Lower the brush (or pad) to the floor and rotate the Twist Grips (7) to start the brush motor. -
Page 12: After Use
AFTER USE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ Raise the squeegee. Step DOWN on the Brush Raise/Lower Pedal (13) to raise the brush (or pad). To empty the Solution Tank, remove the Solution Drain Hose (12) from its hanger. Direct the hose to a floor drain or bucket and remove the plug. -
Page 13: Maintenance
MAINTENANCE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ WARNING! Turn the Master Key Switch (11) OFF and unplug the Power Cord (21) before servicing. ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ LUBRICATION Once a month, pump grease into each grease fitting on the machine until grease seeps out around the bearings. Grease fittings locations are: •... -
Page 14: Squeegee Replacement (After Serial #0536424)
MAINTENANCE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ SQUEEGEE REPLACEMENT (after serial #0536424) If the squeegee leaves narrow streaks of water, it is probably dirty or damaged. Remove the squeegee, rinse it under warm water and inspect the rear squeegee blade. Reverse or replace the squeegee blade if it is cut, torn, wavy or worn to a radius. To Reverse or Replace the Squeegee Blade... -
Page 15: Squeegee Replacement (Before Serial #0536425)
MAINTENANCE ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ SQUEEGEE REPLACEMENT (before serial #0536425) If the squeegee leaves narrow streaks of water, it is probably dirty or damaged. Remove the squeegee, rinse it under warm water and inspect the squeegee blade. Reverse or replace the squeegee blade if it is cut, torn, wavy or worn to a radius. To Reverse or Replace the Squeegee Blade... -
Page 16: Troubleshooting
TROUBLESHOOTING ____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ CIRCUIT BREAKERS TRIPPING Circuit breakers protect electrical circuits and motors from damage due to overload conditions. If a circuit breaker trips, turn the Master Key Switch (11) OFF and unplug the machine. Then try to determine the cause. Once the problem has been corrected, reset the circuit breaker by pushing the button in. - Page 17 Nilfisk-Advance, Inc. 14600 21st Avenue North Plymouth, MN, 55447-3408 www.nilfisk-advance.com Phone: 800-989-2235 Fax: 800-989-6566 ©2001 Nilfisk-Advance, Inc., Plymouth, MN 55447-3408 Printed in the U.S.A.
