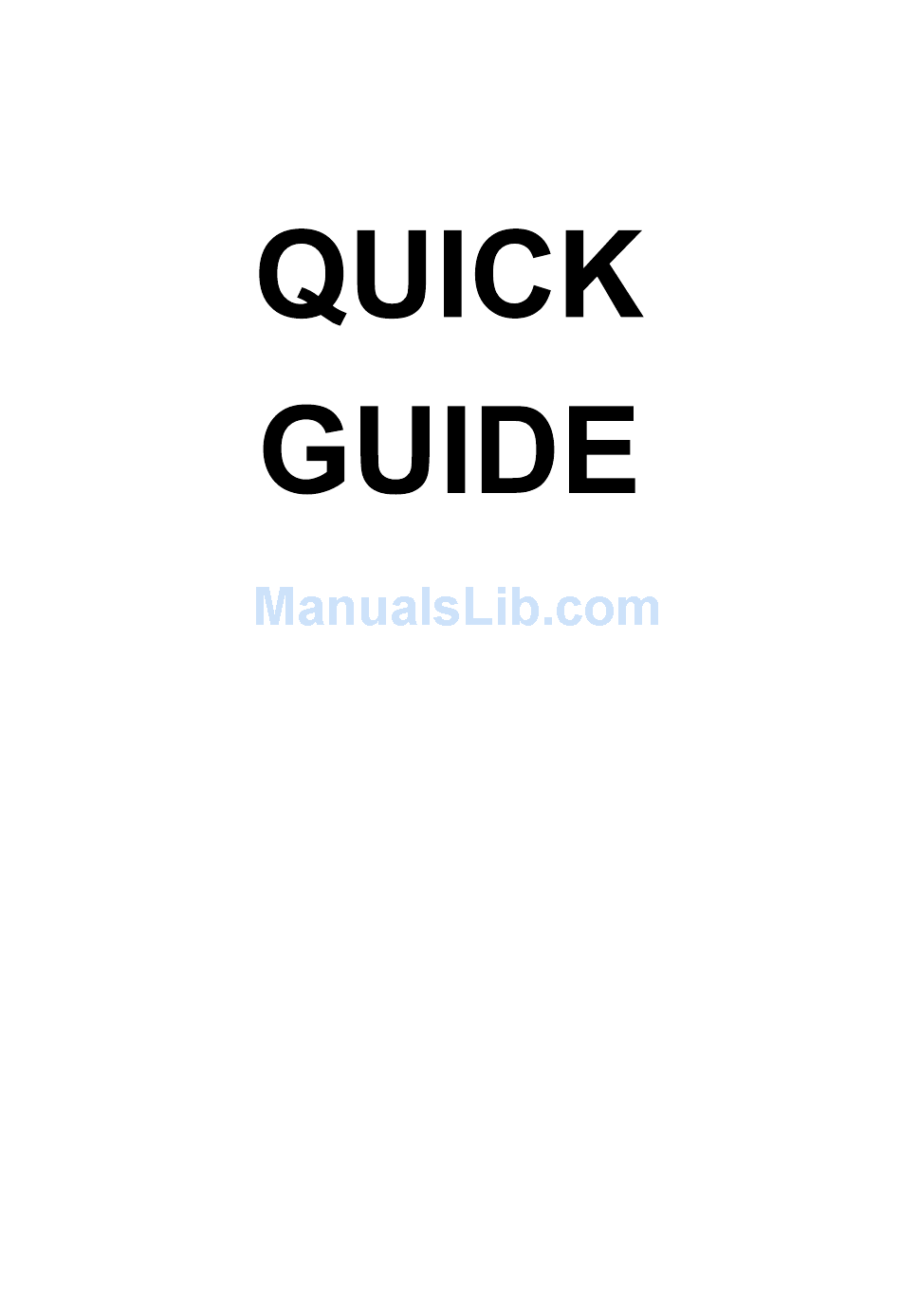

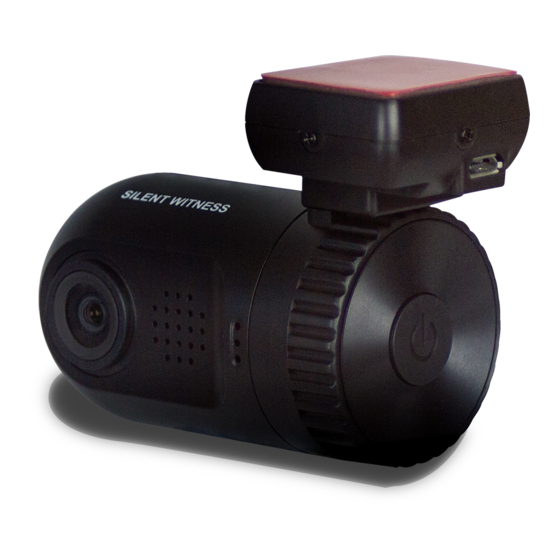

  • Page 1 FOR YOUR SW010...
  • Page 2 Ba ery Recording Speed indicator indicator Loop Indicator Mo on Detec on Microphone Digital Camera Automa c balance Time & Date This picture shows the camera is Recording This picture shows the camera with the recording Paused...
  • Page 3 Picture 1 This is the GPS windscreen module, the power must be inserted into this usb port to enable the gps op on. Picture 2 This is the top of the camera (from le to right) computer usb port - AV output - Microphone AV Output - This is used to connect the camera to a television that does not have the HDMI port, This lead is included in the kit.
  • Page 4 RECORDING This screen shows your device switched on and recording The red ball in the top le will pulse to show it is recording. PAUSED RECORDING This screen shows your device switched on and the recording has been PAUSED. You can PAUSE this device by pressing the OK When the camera has been PAUSED this will now allow you to enter the menu.
  • Page 5 Sharpness This op on Lets you alter the sharpness of the video and digital Pictures, We recommend this is set to AUTO Contrast This op on lets you change the contrast of the video and digital pictures. We recommend this is set to AUTO Flicker Rate This op on lets you change the flicker rate of the device.
  • Page 6 Tv Type If you want to connect your camera to a analogue television, you may need to change this se ng. PAL is the most common type used in the UK Please see page 3 picture 2 of the “quick guide” Auto Power Off...
  • Page 7 Date Time Display This op ons stamps the data into the video file. So when playing the video file back the date and me will be displayed Loop Se ng The Loop se ng feature allows the device to recycle the memory card.
  • Page 8 Driver Number This func on allows a name-vehicle reg to iden fy the Use the UP and DOWN arrows to choose a Le er or Number and press OK to confirm, this will then move to the next icon on the screen. Power Off...
  • Page 9 G Sensor Calibra on Cont.. Please wait for this screen to calibrate This will take only a few seconds Choose Card This camera comes with a 8GB onboard memory , but if you would like to upgrade the card you can purchase a 32GB card class 6 and install into the SD card slot as shown in picture 4 on page 2.
  • Page 10 REVIEWING VIDEO AND PHOTOS To view videos and photos stored on the device In PAUSE mode PRESS and HOLD the DOWN arrow bu on Use the UP and DOWN arrow keys to choose the video File you wish to play. PRESS the OK bu on to confirm To view the photos stored on the device PRESS and HOLD the DOWN arrow key...
  • Page 11 HOW TO CONNECT YOUR CAMERA TO YOUR COMPUTER AND SOFTWARE...
  • Page 12 Installing the so ware Plug the usb lead into the camera using the port on page 3 picture 2 Plug the usb lead into your computer and wait for the computer to con figure “Auto Play” should appear (if not please go to “my computer” to locate the device) Please Note the drive Le er 4.
  • Page 13 This will now load the so ware Browse folder will appear on the screen · Using the file menu locate the drive Le er and double click · Double Click “Removable Disk E” · Double Click DCIM folder · Double click 100MEDIA Folder This will now display all the video files within the folder...
  • Page 14 Highlight all the video files and then click OPEN This will open them into the so ware...
  • Page 15 Please Note internet connec on is needed For Google mapping Your Video plays here Google Maps Shows here Your video files Your Speed G Sensor Highlight and play Or double click Snapshot File Menu Skip Back Skip Forward Delete Volume Rewind Play Fast forward...
  • Page 16 User’s Manual SW010 Please Read This Manual Carefully Before Using Please keep for future reference...
  • Page 17 Preface About the Manual Thank you for choosing our product! In order to easily use your product, we attach a detailed user’s manual with the product . Please read it carefully before operation to get the best from your digital video recorder. If there is a difference between the manual and recorder, please take the recorder as standard.

  • Page 18: Product Features

    Product Features 130 degree ultra wide angle lens . 1920x1080P FULL HD high quality resolution. 4 mega pixels. 4X digital zoom, still image 8X zoom. 1.5 inch high resolution LCD, can watch while recording. Advanced H.264 video compression technology. GPS, record the latitude and longitude data automatically. Google map, to review your car tracking, speed and G-sensor info.

  • Page 19: Light Indicator

    Display ICON About the indication of each icon and symbol, see the table below. Video Mode Start recording Camera Mode Take a picture Supply light(off) Battery SD Card Motion Detection Car speed monitor after White Balance (Auto) V:-------MPH GPS is linked to a satellite. USB connecting Protected file FULL HD /1080P/720P...
  • Page 20 MENU This DVR is already pre-set, although you can choose your own personal settings How to configure your device • Power on the device. if the is flashing press the OK button to pause recording, the ball will now change colour, to grey. •...
  • Page 21 • Video record mode: Choose to record video with audio or just video Video and audio / video only • G-sensor precision: The G force needed to activate the G Shock Sensor (see page 2 for details) 2G / 2.5G / 3G / 3.5G / 4G / 4.5G / 5G / CLOSE •...
  • Page 22 Operations Guide Charging • This dvr can be charged by the cars power and also can be charged by connecting it to a computer . • When connected to the cars power source, the dvr will turn on automatically , when turning off the vehicle the dvr will also turn off after a small delay.
  • Page 23 And when it reaches the end of the sd card (it’s 28 video file) I will automatically delete video file number 1 and then number 2, and cycles through the sd card, deleting and writing video files. If the camera Loop setting is set to the OFF position then the camera will record 1 continuous video file until the card is full.
  • Page 24 SOFTWARE 1. Connect the camera / SD card to the computer. 2. Open the disk from “my computer” or “auto play” 3. Open the “player” folder 4. Double click “GPSPLAYER.exe” and the software will now open 5.Click the symbol 6. Locate your Camera / SD card and double click to open the file 7.
  • Page 25 Specification Image Sensor 1/2.7 CMOS 2.0 Mega-pixel sensor Display 1.5″TFT（650×240 pixels） Chip Ambarella GPS Module GPS Logger Memory SD card up to 32 G Lens 4X fixed focus Auto Format：JPEG（EXIF2.2） 、DCF Still images Image resolution： 0.9M、 2M、 3M （Software） 、 4M （Software） Format：H.264 (MOV) Videos Resolution：...

  • Page 26: Troubleshooting

    Troubleshooting If you run into problems , please refer to the following solutions. • Can’t record a video or takes pictures Please check and make sure the card has enough storage space. Please see page 7 for formatting your SD card •...
