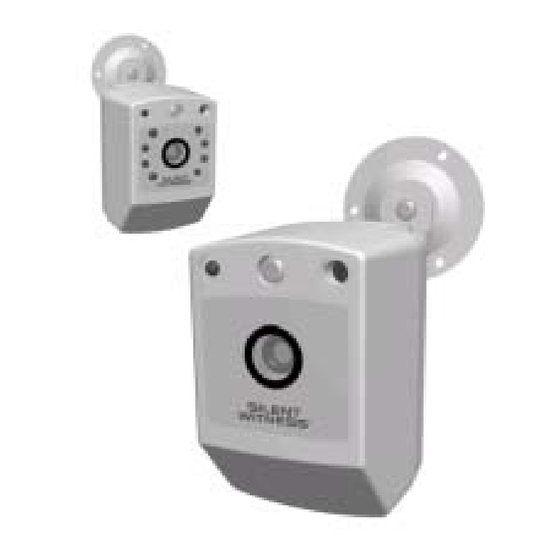

- Page 1 V60 Night Hawk® CCTV Camera Quick Setup Guide...
-
Page 3: Table Of Contents
Contents Overview ........... 1 Before You Begin . -
Page 5: Overview
One Product Warranty Card If any parts are missing or damaged, please contact the dealer you purchased the camera from, or call Silent Witness Customer Service (see “Service” on page 6). Equipment Required You will require the following tools to complete the installation: •... -
Page 6: Installation
Installation Mounting the Camera To mount the V60 camera: Assemble the V60 mounting base following Figure Note The insulating shoulder washer and composite washers must remain installed as shown to ensure that the camera is electrically isolated from the mounting surface. Install the L-bracket with the raised points toward the mounting plate. - Page 7 Figure 2 Mount Options Video- Wall mount Power Gnd Line Audio Video+ Ceiling mount Video: female BNC Audio: RCA plug Power: 2.1 mm male jack Do not remove retaining screw white stripe from camera enclosure Note The optional wall, ceiling, or pedestal mounting bracket shown Figure 3 can be ordered for installations that do not require any pan adjustment.
-
Page 8: Wiring
Figure 3 Optional Pedestal Mount Power connector Flashing LED (optional) Enclosure retaining screw Camera enclosure Microphone (optional) U-bracket (optional) Wiring Your V60 camera comes supplied with a power connector and wiring harness that allows the camera enclosure to be quickly changed and secured with a single tamper proof retaining screw. -
Page 9: Aiming
Note Do not use the External Polarizer on V60 Night Hawk cameras. To install the V60 External Polarizer: Clean the V60 camera window with isopropyl alcohol and a clean, soft cloth. -
Page 10: Routine Maintenance
Service Subject to the terms and conditions listed on the Product Warranty Card, during the warranty period Silent Witness will repair or replace, at its sole option, free of charge, any defective products returned prepaid. In the event you have a problem with any Silent Witness product, please call Customer Service for assistance or to request a Return Authorization (RA) number. -
Page 11: Specifications
Specifications Note Specifications apply to all camera models, unless noted otherwise. Audio/Video Signal Specifications Pickup device: 1/3 in. CCD Electronic iris: 1/60 (1/50) to 1/100,000 sec. 1 V p-p @ 75 Ω Video output: Video signal: Monochrome Standard EIA or CCIR Color Standard NTSC or PAL Signal to noise ratio:... - Page 12 Operating Temperature Monochrome -13°F to 122°F (-25°C to 50°C) Color -4°F to 122°F (-20°C to 50°C) Arctic Hawk (Monochrome) -50°F to 122°F (-46°C to 50°C) Arctic Hawk (Color) -50°F to 122°F (-46°C to 50°C) High RES Standard RES Desert Hawk (Monochrome) -4°F to 140°F -13°F to 140°F (-20°C to 60°C)
-
Page 13: Cable Guidelines
Cable Guidelines Maximum Power Supply Cable Length (feet/meters) Wire gauge Total Power load supply Cameras with DC power supplies 150 mA 12 VDC 50/15 100/30 200/61 300/91 150 mA 15 VDC 300/91 500/152 1000/305 1000/305 250 mA 12 VDC 50/15 100/30 200/61 250 mA... -
Page 14: Regulatory Compliance
Regulatory Compliance FCC Statement (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. - Page 16 Document 920.0092 Rev 2.02 March 11, 2004 Specifications subject to change without notice. Imperial conversions are approximate. Night Hawk® and Silent Witness® are registered trademarks of Silent Witness Enterprises Ltd. © 2004 Silent Witness Enterprises Ltd. All rights reserved. Printed in Canada.
