SWX80, SWX81, and
SWX82 Night Hawk®

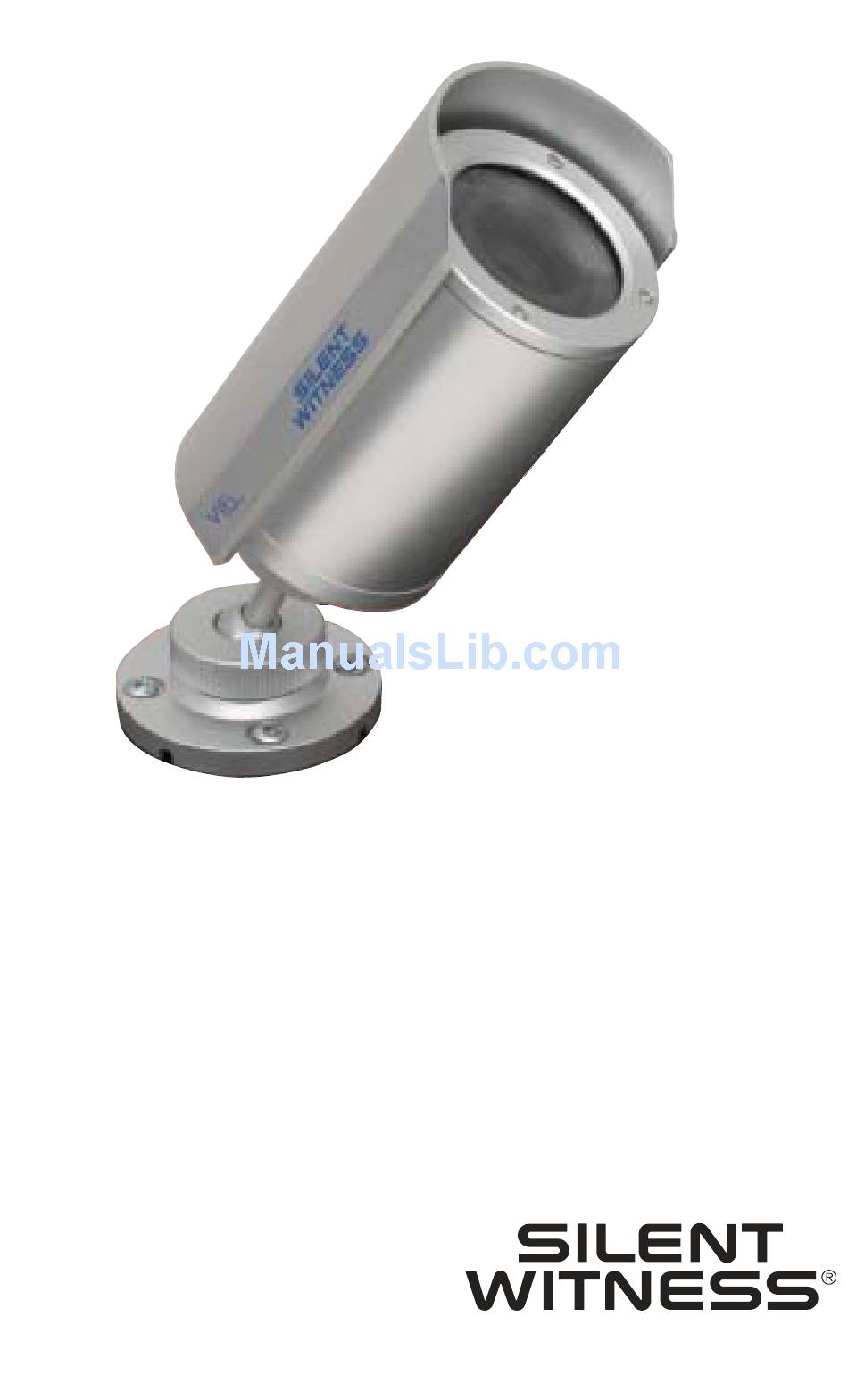

CCD Camera User Guide
A Honeywell Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWX80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silent Witness SWX80

  • Page 1 SWX80, SWX81, and SWX82 Night Hawk® CCD Camera User Guide A Honeywell Company...
  • Page 3: Table Of Contents

    Specifications ..........9 SWX80 Technical Specifications ....... 9 SWX81 and SWX82 Technical Specifications .
  • Page 5: Overview

    Overview The SWX80, SWX81, and SWX82 Night Hawk® CCD cameras provide true 24/7 surveillance. These small, discreet cameras take perfectly exposed pictures no matter what the lighting conditions. The SWX81 and SWX82 cameras have built-in, infrared LED illuminators to improve low light viewing. The SWX81 camera has 18 near-infrared light emitting diodes that provide short-range illumination.
  • Page 6: Before You Begin

    Unpack Everything Check that the items received match those listed on the order form and packing slip. The SWX80/SWX81/SWX82 packing box should include, in addition to this User Guide: • One fully assembled camera with factory installed video/power cable •...
  • Page 7: Installation

    Installation The SWX80/SWX81/SWX82 cameras are designed for installation on a wall, ceiling, or on top of a pole. They are weather sealed for indoor or outdoor locations. Step 1: Connect Video and Power WARNING! The use of a CSA Certified/UL Listed Class 2 power supply is required to ensure compliance with electrical safety standards.
  • Page 8: Flush And Surface Mount

    Use four screws appropriate to your installation to mount the camera. Note See page 14 for the SWX80 and SWX81 mounting template and page 15 for the SWX82 mounting template. Make sure the camera is mounted on a flat, smooth surface.
  • Page 9 These dip switches are factory configured for optimal performance. If further adjustments are required please feel free to contact Silent Witness Customer Service or authorized service personnel. Caution During the entire time the bezel is off, ensure that the camera board, lens, and LEDs are kept intact and free from dust.
  • Page 10: Dip Switch Functions

    Figure 3 Camera Board Iris level adjustment Top locking Bottom locking screw screw adjusts adjusts focal length focus Line lock controls push buttons Dip Switch Functions Figure 4 Factory Default Settings Legend 1. AWB/ATW 2. AGC 3. IRIS 4. BLC 5.
  • Page 11: Adjust The Focus And Iris Level

    Adjust the Focus and Iris Level Caution IR LEDs could be warm after prolonged use. If you have not already done so, remove the camera from the bezel (see “Step 4: Adjust the Camera” on page 4). To adjust the focal length, loosen the top locking screw on the side of the lens. It is marked: ←...
  • Page 12: Adjust The Line Lock (Vertical Phase) For 24 Vac Operation

    Adjust the Line Lock (Vertical Phase) for 24 VAC Operation Phase adjustment may be necessary in multiple camera installations to prevent picture roll when switching between cameras. To adjust the vertical phase while switching between two cameras, push down the left or right switch on one camera until there is no vertical roll (see Figure Note...
  • Page 13: Specifications

    Specifications SWX80 Technical Specifications Camera Color True Day/Night Standard Res High Res Standard Res High Res NTSC SWX80C100 SWX80C600 SWX80D100-T2 SWX80D600-T2 SWX80C2100 SWX80C2600 SWX80D2100-T2 SWX80D2600-T2 Imager format 1/3 in. CCD Imager Sensor S/N ratio Better than 50 dB 1 V p-p; Coax: 75 Ω...
  • Page 14: Swx81 And Swx82 Technical Specifications

    Dimensions Length: 4.44 in. (112.7 mm) Diameter: 2.76 in. (70 mm) Weight 1.25 lbs (0.56 kg) a. Silent Witness recommends using 15 VDC. SWX81 and SWX82 Technical Specifications Camera SWX81 with 18 IR LEDs SWX82 with 48 IR LEDs True Day/Night...
  • Page 15 Diameter: 3.86 in. (98 mm) Weight 1.25 lbs (0.57 kg) 2.8 lbs (1.27 kg) a. Silent Witness recommends using 15 VDC. b. If DC supply is used, verify the polarity is correct. + goes to +, - goes to -.
  • Page 16: Regulatory Compliance

    Regulatory Compliance FCC Statement (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
  • Page 17: Warranty And Service

    Silent Witness warrants the SWX80, SWX81, and SWX82 against defects in workmanship and materials for a period of 2 years. During the warranty period Silent Witness will repair or replace, at its sole option, free of charge, any defective product returned prepaid.
  • Page 18: Mounting Templates

    Mounting Templates Figure 6 Mounting Template (SWX80/SWX81 shown) Mounting screw holes (3/16 inch diameter) When printing this template, make sure you uncheck Fit to Page in your Printer options. This will avoid distortion. See “Step 2: Attach the Camera Base” on page 3 for information on using the mounting template.
  • Page 19 Figure 7 Mounting Template (SWX82) Mounting screw holes (3/16 inch diameter) When printing this template, make sure you uncheck Fit to Page in your Printer options. This will avoid distortion. See “Step 2: Attach the Camera Base” on page 3 for information on using the mounting template.
  • Page 20 Document 900.0255 Rev 1.00 June 9, 2004 Specifications subject to change without notice. Imperial conversions are approximate. Night Hawk® and Silent Witness® are registered trademarks of Honeywell International Inc. © 2004 Honeywell International Inc. All rights reserved. Printed in Canada.
