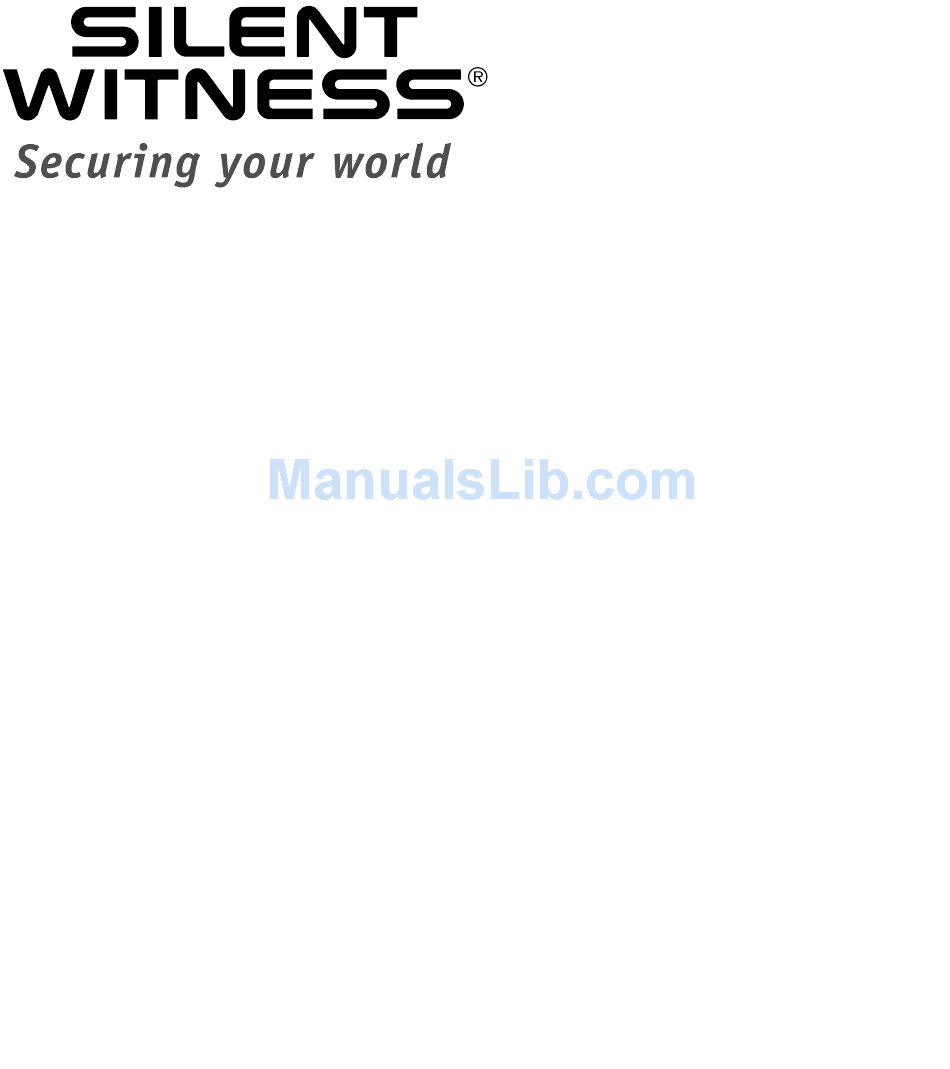

  • Page 1 SWX45 Night Hawk® CCD Camera User Guide...
  • Page 2 Silent Witness Enterprises Ltd. Disclaimer Silent Witness Enterprises Ltd. assumes no responsibility for errors in this document, omissions, or their consequences. The information is subject to change without notice.
  • Page 3: Table Of Contents

    Contents Overview ..........1 Important Safeguards .
  • Page 4: Overview

    Overview The SWX45 Night Hawk CCD dome camera provides true 24/7 surveillance. This small, discreet camera takes perfectly exposed pictures, no matter what the lighting conditions. A built-in, infrared LED illuminator improves low light viewing. 12 near-infrared light emitting diodes provide short-range illumination over a wide range. The rugged, high impact dome housing is vandal resistant and weather tight, making it ideal for most indoor and outdoor installations.
  • Page 5: Before You Begin

    • One SWX45 hardware kit • One Product Warranty card If any parts are missing or damaged, contact the dealer you purchased the camera from or call Silent Witness Customer Service. Equipment Required You will require the following tools to complete the installation: •...
  • Page 6: Installation

    Installation The SWX45 camera is designed to be surface mounted on a wall or ceiling. It is weather sealed for indoor or outdoor locations. Step One: Wiring Connections WARNING! The use of a CSA Certified/UL Listed Class 2 power supply is required to ensure compliance with electrical safety standards.
  • Page 7: Step Two: Prepare The Conduit Plug

    Note For secure installations, surface-mounted cables should be protected by plastic or metal cable covers. Step Two: Prepare the Conduit Plug Conduit Entry on Back Your SWX45 camera comes with a conduit plug pre-installed in the 1/2 inch conduit entry on the back. If you are using the pre-installed conduit entry, proceed to Step Three: Mount the SWX45 on page Caution...
  • Page 8 Install the conduit plug in the conduit entry on the back. Apply an appropriate sealant around the conduit connection. Figure 2 Installation Dome and turret insert Brass screw-in dowels (x2) Retaining ring Disconnect the coaxial video cable before using a Rubber lens boot different conduit entry.
  • Page 9: Step Three: Mount The Swx45

    Step Three: Mount the SWX45 The SWX45 Night Hawk can be mounted onto any flat surface. To mount the SWX45: Hold the dome enclosure while you rotate the dome clamp (retaining ring) counter-clockwise using the two brass screw-in dowels on the retaining ring.
  • Page 10: Operation

    Operation Caution The SWX45 camera will heat up during operation. Do not touch the dome or the enclosure cover. Precautions The light emitted from the 12 near-infrared light emitting diodes provides short-range illumination over a wide area. This light is not considered a risk to the unshielded human eye.
  • Page 11: Specifications

    Specifications Model No. SWX4510xx SWX45210xx TV System NTSC Imager Format 1/3 in. CCD imager sensor CCD Total 542 (H) x 496 (V) 542 (H) x 586 (V) Pixels Scanning 525 lines, 60 fields/sec. 625 lines, 50 fields/sec System Sync. System Internal Light 0 lux @ F1.2 5600ºK (with IR-LED)
  • Page 12 Model No. SWX4510xx SWX45210xx Electronic Iris 1/60 to 1/120,000 sec 1/50 to 1/120,000 sec Ω Video Output 1.0V P-P composite video at 75 Gamma 0.45 Correction Gain Control Auto ACG Operating -4ºF to +122ºF Temperature (-20ºC to +50ºC) Relative Within 85% Humidity Power Supply 12 VDC @ 100mA...
  • Page 13 Dimensions Weight 1.70 lbs (0.78 kg) 240 mm 12 VDC Video out 117 mm Document 900.0155 Rev 1.02...
  • Page 14: Regulatory Compliance

    Regulatory Compliance FCC Statement (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Industry Canada Notice This digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 15 Document 900.0155 Rev 1.02 August 12, 2003 Specifications subject to change without notice. Imperial conversions are approximate. Night Hawk® and Silent Witness® are registered trademarks of Silent Witness Enterprises Ltd. © 2003 Silent Witness Enterprises Ltd. All rights reserved. Printed in Canada.
