Summary of Contents for Silent Witness MagnaView V28R

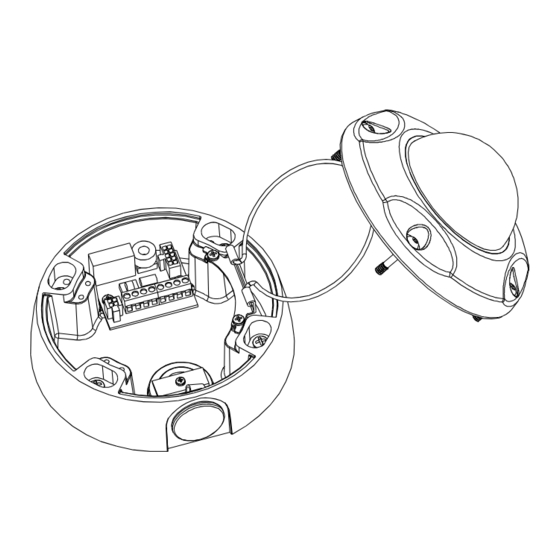

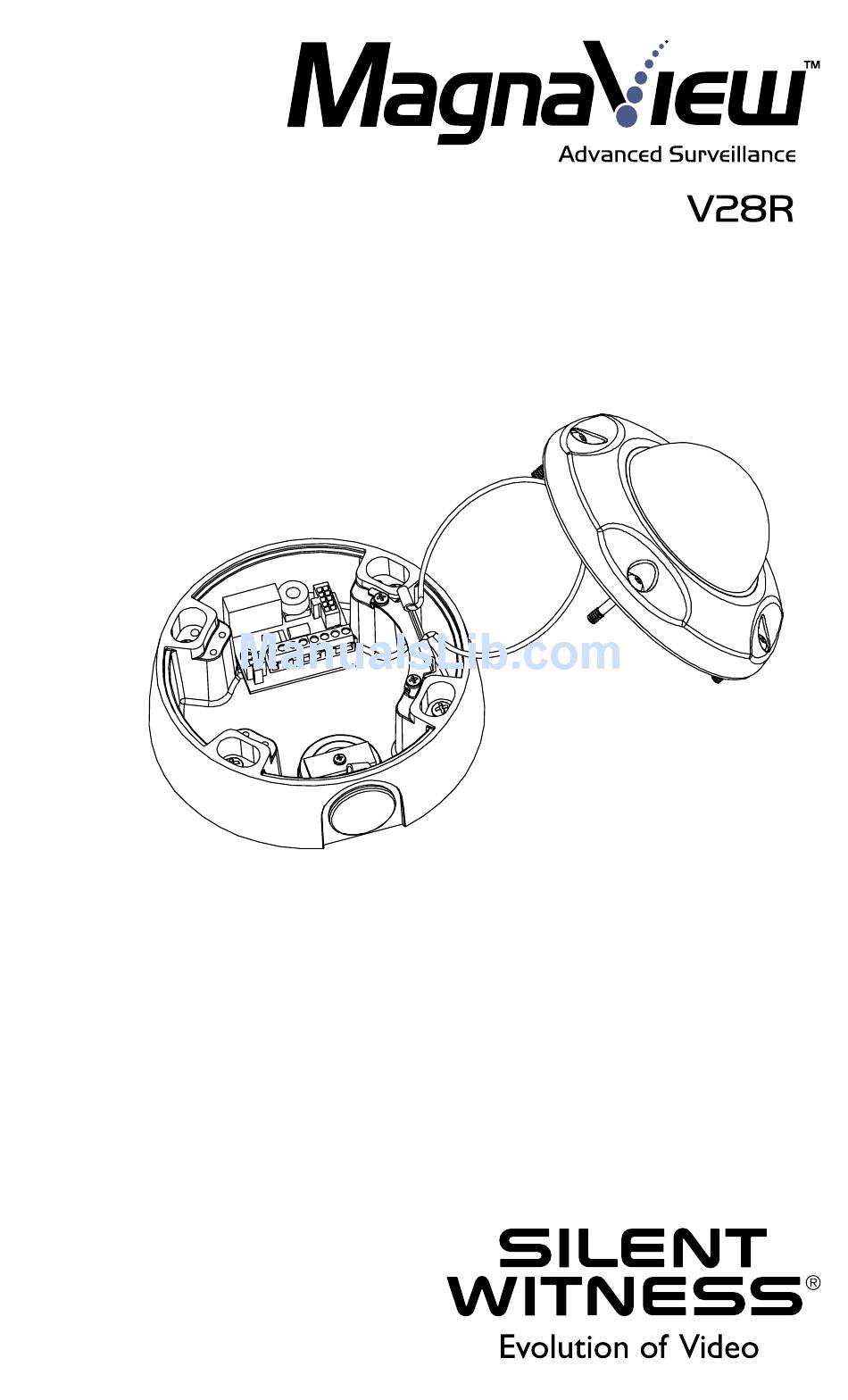

- Page 1 V28R Installation Housing Setup Guide...
-
Page 2: Unpack Everything
Your MagnaView V28R camera enclosure comes with a conduit plug pre-installed in the ½”conduit entry on the back.This plug may be removed and installed in the side 3/4”... -
Page 3: Wiring Options
Figure 2 Mounting Template Guide Wiring Options Warning! The use of a CSA Certified/UL Listed Class 2 power adapter is required to ensure compliance with electrical safety standards. Your MagnaView camera is supplied with one of the three different termination PC boards mounted to the bottom of the housing.All connections are made here. -
Page 4: Wiring Connections
Calculations are based on an unregulated linear power supply, which would be worse case. Using a regulated or switching power supply can increase the cable distance. Silent Witness recommends using a CSA Certified/UL listed Class power adapter to ensure compliance with electrical safety standards. -
Page 5: Specifications
Specifications Application: Indoor/outdoor Mounting: Ceiling/wall Cable entry: 3/4” (side of base) / 1/2”(bottom of base) Construction: Base/Cover Cast aluminum alloy Dome Hard coated polycarbonate Finish: White urethane powder paint Dimensions: 6.1” (w) x 3.8” (h) (154.94 mm x 96.52 mm) Weight: 3.0 lbs (1.36 kg) Ratings:... -
Page 6: Regulatory Notices
Silent Witness will repair or replace, at its sole option, free of charge, any defective products returned prepaid. In the event you have a problem with any Silent Witness product, please call the Service Department for assistance or to request a Return Authorization (RA) number. - Page 7 Document 920.0116 REV 4.00 Specifications subject to change without notice. MagnaView and Advanced Surveillance™ are trademarks, and ® is a registered trademark Silent Witness of Silent Witness Enterprises Ltd. © 2002 Silent Witness Enterprises Ltd.All rights reserved. Printed in Canada.
