Spray Gun

Become familiar with spray gun trigger and
locking system prior to use.

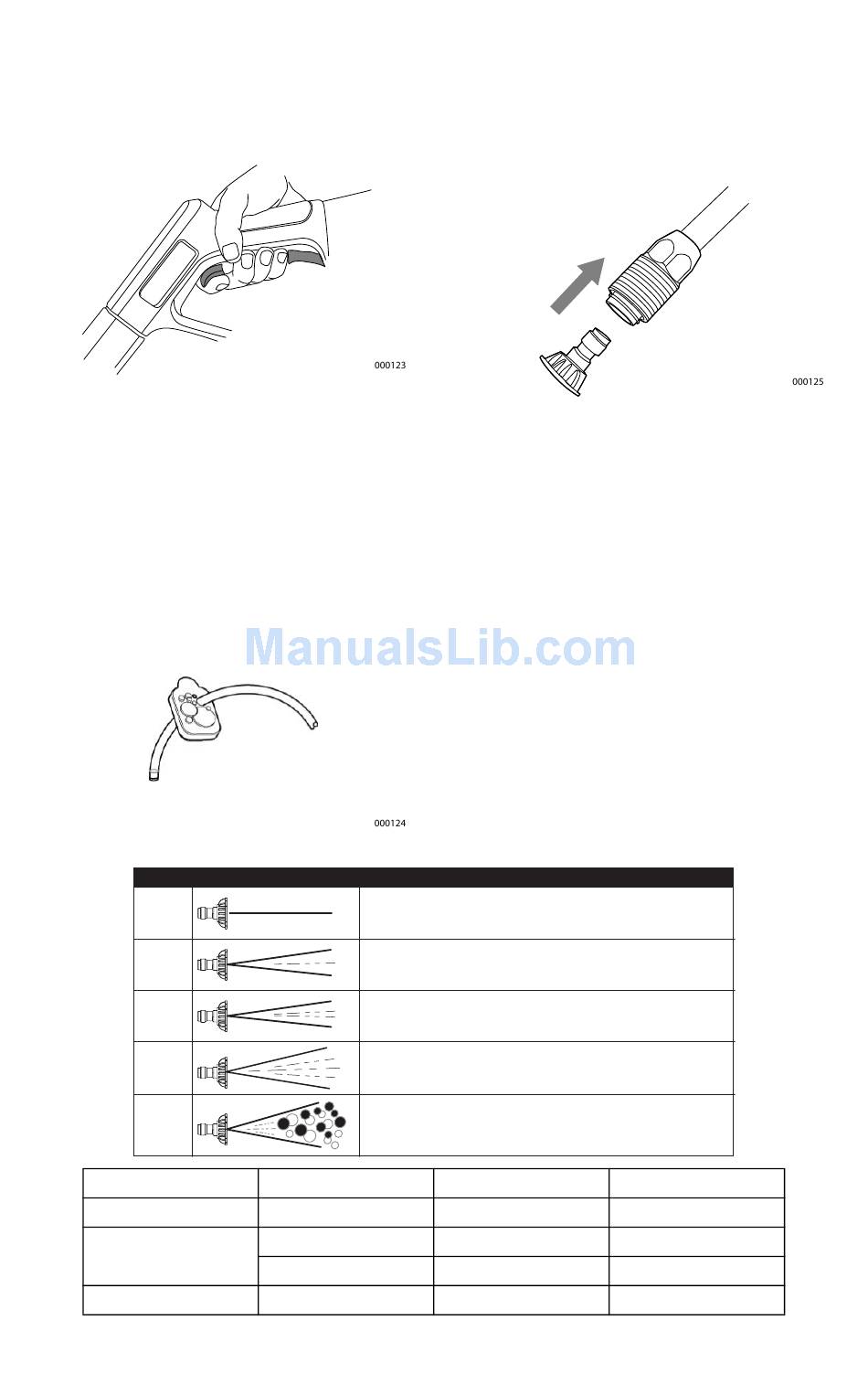

See Figure 2-14. With unit OFF, hold spray
gun and squeeze trigger to learn how trigger
mechanism and locking system can be acti-
vated and deactivated.
Figure 2-14. Spray Gun (typical)
4. Verify spray gun is OFF with lock
engaged before
washer.
5. Turn ON the water, squeeze the trig-
ger to purge the pump system of air.

Detergent Tank

Power washer is shipped with siphoning tube
and cap.See Figure 2-15. Insert siphoning
tube through hole in cap.
Figure 2-15. Siphoning Tube and Cap
Blast
Pressure
Nozzle
(Red)
Strip
Pressure
Nozzle
(Yellow)
Clean
Pressure
Nozzle
(Green)
Wash
Pressure
Nozzle
(White)
Detergent
Nozzle
(Black)
UNIT RATED
2500
2800
3100
Operator's Manual for Power Washer
starting power
Nozzle Selection Guide
MAXIMUM - Higher pressure and lower flow for stubborn or hard to reach surface such as second
story surfaces, paint removal, oil stains, rust removal or other stubborn substances (tar, gum, grease,
wax, etc.).
MEDIUM - Higher pressure and medium flow for removing stains on hard porous surfaces such as
concrete dirveways, garage floors and brick patios.
GENERAL - Medium pressure and medium flow for most all purpose cleaning such as home siding,
brick patios, wood decks, driveways and sidewalks, garage floors, etc.
DELICATE - Lower pressure and higher flow for gentle cleaning of cars/trucks, boats, RV's, patio
furniture, lawn equipment, etc.
DETERGENT ONLY (BLACK), Only use power washer safe detergents/soaps to help break down
stubborn dirt and grime on a variety of surfaces.
NOZZLE
Blast/Wash
Blast
Wash
Blast/Wash
6. Open detergent tank cover.
7. Insert siphoning tube into detergent
and snap siphoning tube cap onto
detergent tank.
8. See nozzle selection guide and select
correct nozzle for task.
9.
See Figure 2-16. Pull back quick–con-
nect collar and install nozzle
Figure 2-16. Insert Nozzle
10. Release quick-connect
secure nozzle.
11. Verify nozzle is locked in place.
PSI
2500
2800
2600
3100
.
collar to
GPM
2.3
2.4
2.5
2.7
7
