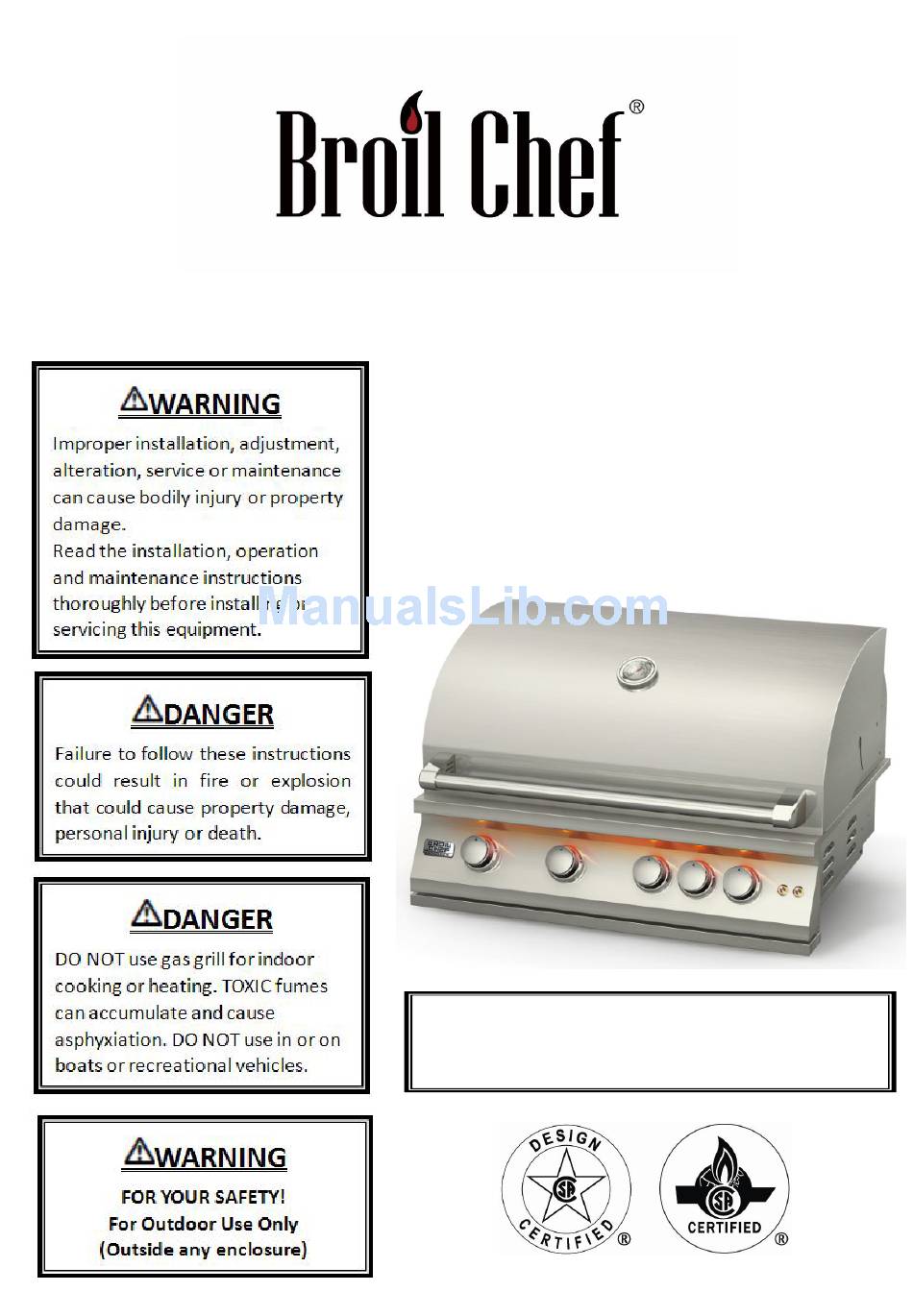

- Page 1 User Manual 32 Inch Built-In LP/Gas Grill Pro-Series 32-Inch Built-In LP/Gas Grill 40-Inch Built-In LP/Gas Grill Pro-Series 40-Inch Built-In LP/Gas Grill FOR CUSTOMER SERVICE: CALL 1-877-631-2845 (TOLL-FREE) - 1 -...
-
Page 2: Grill Operation
Grill Operation 1-2-3 Before Grilling Step 1 Keep your grill a safe distance away from your property.* Step 2 Always perform a Leak Test on all connections and hoses. * Step 3 Keep children away from the grill. During Grilling (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 First open lid and turn gas tank on slowly. -
Page 3: Table Of Contents
Table of Contents For Your Safety.........................4 Safe Locations for Use of This Outdoor Grill................5 BBQ Specifications........................8 Grill Parts ..........................9 Installing the Appliance in a BBQ Island.................10 Building BBQ Specifications....................11 Operating Your Grill........................12 Connecting & Disconnecting Gas Cylinder................13 Checking for Leaks........................14 Lighting Your Grill........................14 Flame Adjustment........................15 Excess flow safety valve reset procedure................16... -
Page 4: For Your Safety
For Your Safety Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill. -
Page 5: Safe Locations For Use Of This Outdoor Grill
Safe Locations for Use of This Outdoor Grill CAUTION Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNING Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes). - Page 6 THIS MANUAL APPLIES TO THE FOLLOWING BBQ GRILLS: Model: BCP-500L 5 BURNER Model: BCP-500S 5 BURNER Cutout Dimensions 32 11/25”W x 25 3/5”D x 20 1/2”H Cutout Dimensions 32 11/25”W x 25 3/5”D x 20 1/2”H BTU Output 15,000 BTU per Burner x4...
- Page 7 Model: BCP-600L 6 BURNER Model: BCP-600S 6 BURNER Cutout Dimensions 40 11/25”W x 25 3/5”D x 20 1/2”H Cutout Dimensions 40 11/25”W x 25 3/5”D x 20 1/2”H BTU Output 15,000 BTU per Burner x5 BTU Output 15,000 BTU per Burner x5 Infrared Back Burner 12,000 BTU Infrared Back Burner...
-
Page 8: Bbq Specifications
BBQ SPECIFICATIONS - 8 -... -
Page 9: Grill Parts
GRILL PARTS Thermometer BCP-500L-01-01 6 Burner Body Bottom BCP-600L-01-15 Thermometer Base BCP-500L-01-02 Cooking Grid BCP-500L-01-16 5 Burner Lid BCP-500L-01-03 Lava Stone Heat Sheet BCP-500L-01-17 6 Burner Lid BCP-600L-01-03 Burner Ignite Plate BCP-500L-01-18 Lid Pin BCP-500L-01-04 Burner BCP-500L-01-19 Handle Seat BCP-500L-01-05 Oil Baffle BCP-500L-01-20 5 Burner Handle Tube... -
Page 10: Installing The Appliance In A Bbq Island
BCP 6 Burner BCP600S has no Part#22 (Knob Lamp) and Part#27 (Lamp Switch). Installing the Appliance in a BBQ Island You will need a second person to help you avoid damaging the appliance or your appliance island. The island must be made out of non-combustible material. In the event it is combustible, the use of an insulation jacket is required. -
Page 11: Building Bbq Specifications
BUILDING BBQ SPECIFICATIONS ALL BBQ ISLANDS MUST BE MANUFACTURED FROM “NON-COMBUSTIBLE” MATERIAL. Minimum clearance to adjacent combustible construction at 14” from sides & 16” from back MODEL DESCRIPTION WIDTH (A) DEPTH (B) HEIGHT (C) BCP-500L 30” 5 Burner 30 1/2” 21 3/8”... - Page 12 Installation Method for Propane Installation Method for Natural Gas...
-
Page 13: Operating Your Grill
Operating Your Grill CAUTION Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment. The liquid propane gas (LP-gas) supply cylinder(s) to be used must be: a) Constructed and marked in accordance with the specifications for LP gas cylinders of the National Standard of the Transportation of Dangerous Goods Commission of Canada for Cylinders, Spheres and Tubes (CAN/CSA-B139), as applicable;... -
Page 14: Checking For Leaks
DANGER To prevent fire or explosion hazard when testing for a leak: Always perform the “leak test“ as below before lighting the grill and each time the cylinder is connected for use. Do not smoke or allow other sources of ignition in the area while conducting a leak test. Conduct the leak test outdoors in a well-ventilated area. -
Page 15: Flame Adjustment
Ignite only the burners you wish to use. Push and turn the knob to “HIGH” then press the igniter button immediately. The burner should light. If the burner does not light, repeat 2 or 3 times. 5. If ignition does NOT occur in 5 second turn the burner controls to OFF, wait 5 minutes, and repeat the lighting procedure. -
Page 16: Excess Flow Safety Valve Reset Procedure
WARNING Always monitor the grill closely when cooking and turn the flame level down to LOW or OFF if flare-ups intensify. Shutting Off Burners 1. Always turn the valve knob(s) clockwise to the ‘’HIGH’’ position, and then press and turn it to ‘’OFF’’. Never force the knob without pressing it. -
Page 17: Care And Maintenance
Care and Maintenance IMPORTANT Always allow to completely cool off before covering your grill to prevent corrosion from condensation. CAUTION All cleaning and maintenance should be done when the grill is cool, with the fuel supply turned off at the control dial and the propane cylinder disconnected. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible cause Prevention/Cure Burner doesn't light using knobs or Wires or electrode is covered by Clean wire or electrode using a igniter cooking residue cloth and rubbing alcohol Electrode and burners are wet Wipe with dry cloth Ignition electrode cracked or Replace electrode broken;... - Page 19 Excessive cooking temperature Adjust (lower) temperature Persistent grease fire Grease trapped between burner Turn knobs to OFF. Turn gas OFF at and food on the grate propane tank. Leave lid in closed position and let fire burn out. After grill cools, remove and clean all parts Flashback(fire in burner tubes) Burners or tubes are blocked...
-
Page 20: Warranty Program
Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If unable to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase with a valid proof of purchase.
