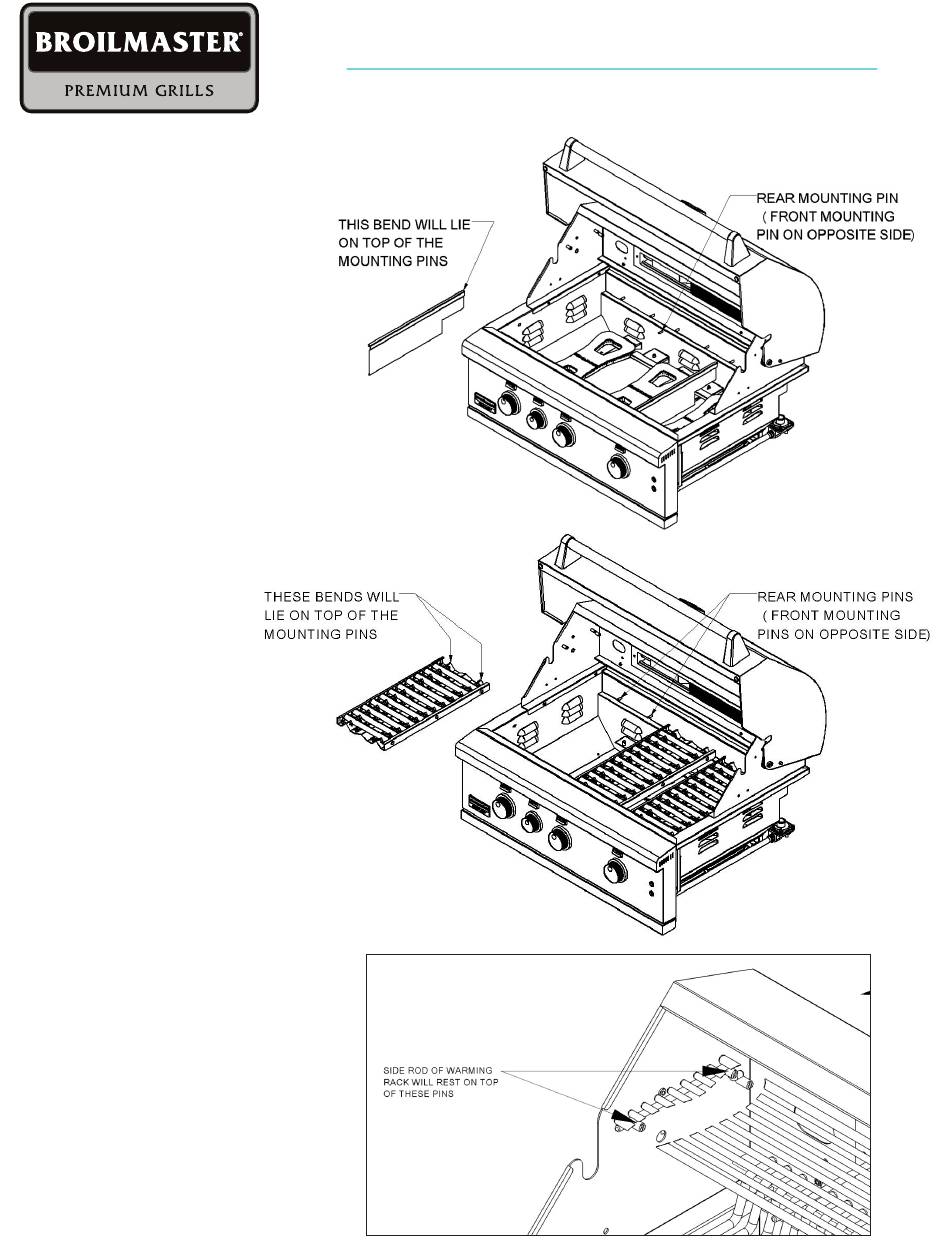

1. ORIENTATE THE DIVIDER AS
SHOWN WITH THE NOTCH
TOWARDS THE REAR AND
PLACE OVER THE MOUNTING
PINS.
2. ORIENTATE THE VAPORIZER
AS SHOWN AND PLACE OVER
THE MOUNTING PINS.
3. PLACE THE RACK SIDE RODS
OVER THE PINS IN THE SIDES
OF THE GRILL AS SHOWN IN
THE CUT-OUT VIEW. NOTE
THAT THE BENT END OF THE
SIDE ROD IS TOWARDS THE
REAR.
QUICK START GUIDE
INSTALLATION OF DIVIDERS, VAPORIZERS, AND WARMING RACK
Advertisement
Table of Contents
Related Manuals for Broil King BSG343N
Summary of Contents for Broil King BSG343N
- Page 1 QUICK START GUIDE INSTALLATION OF DIVIDERS, VAPORIZERS, AND WARMING RACK 1. ORIENTATE THE DIVIDER AS SHOWN WITH THE NOTCH TOWARDS THE REAR AND PLACE OVER THE MOUNTING PINS. 2. ORIENTATE THE VAPORIZER AS SHOWN AND PLACE OVER THE MOUNTING PINS. 3.
- Page 2 QUICK START GUIDE LIGHTING INSTRUCTIONS FOR FRONT AND REAR BURNERS 1. PUSH IN ON THE CONTROL KNOB AND TURN SLIGHTLY COUNTERCLOCKWISE WHILE KEEPING THE KNOB PUSHED IN. 2. CONTINUE TO TURN COUNTERCLOCKWISE WHILE PUSHING IN ON THE KNOB. APPROX- IMATELY IN THE POSITION SHOWN YOU WILL FEEL A SLIGHT RESISTANCE AND YOU WILL HEAR GAS BEGIN TO FLOW.
