Minuteman Lumina 20 M26036QP Operation Service Parts Care

Battery burnisher
Hide thumbs

Advertisement

Quick Links

Download this manual

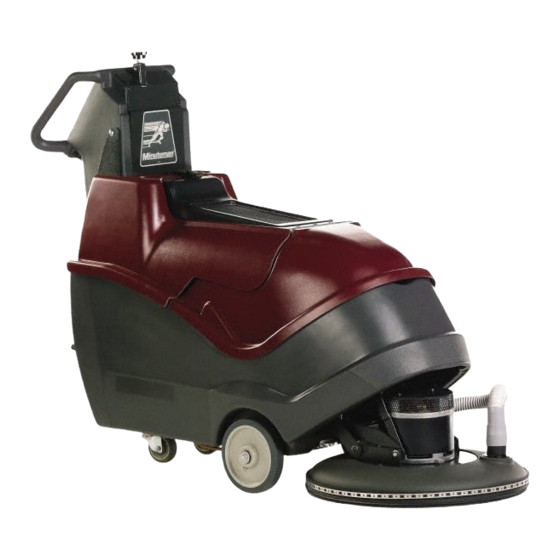

Lumina 20
Battery Burnisher
OPERATION
Revised 7/02
SERVICE
Model:
M26036QP
M26036CE
PARTS
CARE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lumina 20 M26036QP and is the answer not in the manual?

Questions and answers

Related Manuals for Minuteman Lumina 20 M26036QP

Summary of Contents for Minuteman Lumina 20 M26036QP

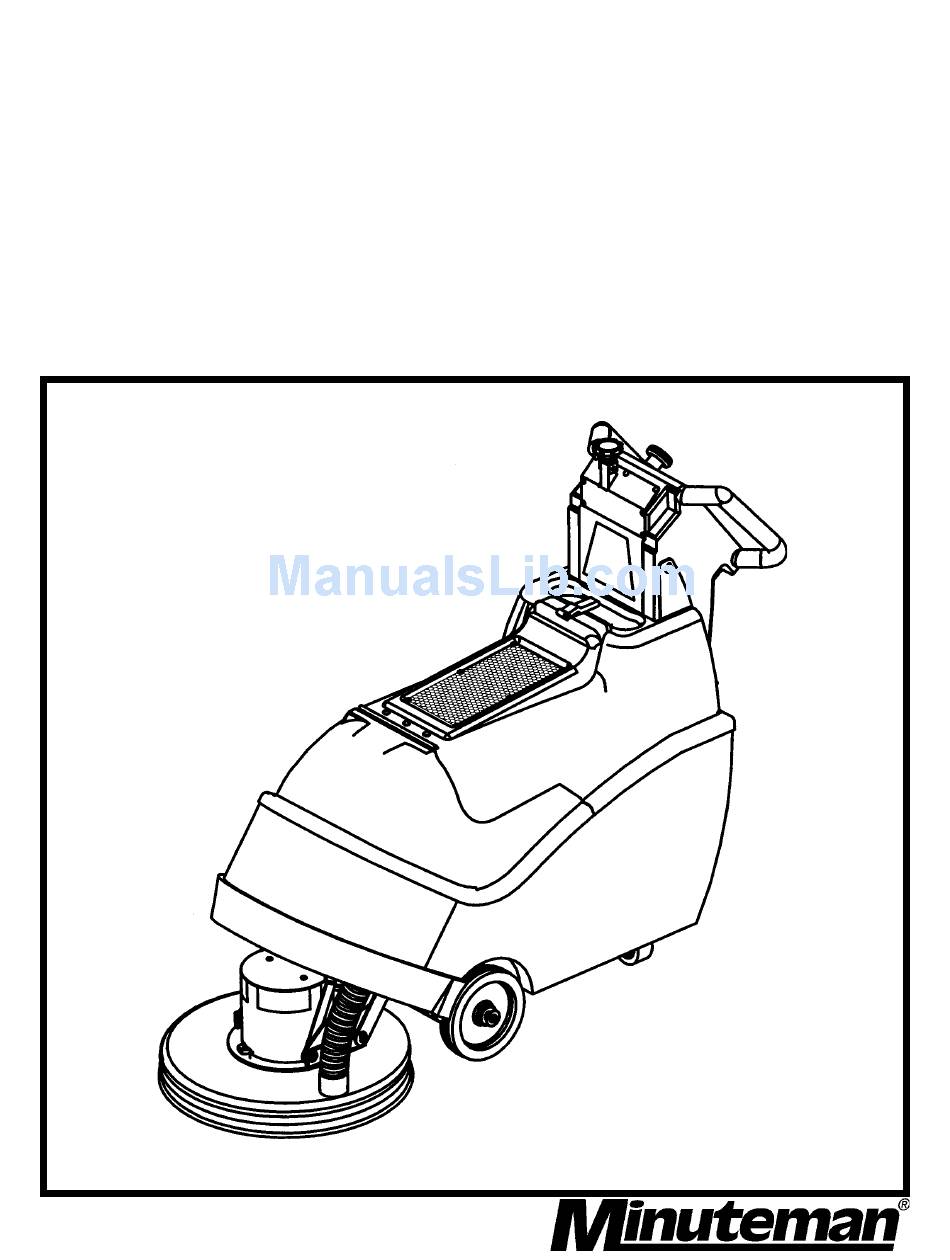

  • Page 1 Lumina 20 Model: Battery Burnisher M26036QP M26036CE OPERATION SERVICE PARTS CARE Revised 7/02...

  • Page 3: Table Of Contents

    Contents Illustration, Spare Parts, Operation, and Service Precautions ................1 Operating Instructions .............. 2 Inspection................2 Maintenance ................2 Pad Installation & Adjustment ..........3 Circuit Breakers ..............3 Carbon Brush Replacement ............ 3 Battery Service, Installation, & Charging ........4 Machine Overview, Control Panel Diagram ......

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION: Operators must read and understand this manual before operating or maintaining this machine. Keep hands and feet clear of moving parts while machine is in operation. Disconnect the power to the machine by pressing the red Emergency Disconnect Button when charging batteries or during installation or removal of pads.

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS INSPECTION Carefully unpack and inspect your burnisher for shipping damage. Each unit is tested and thoroughly inspected before shipment; any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL This machine is battery operated and designed to operate on 36 volts DC (3) 12 volt batteries. BATTERIES Burnishers are shipped with batteries.
  • Page 6 BATTERY SERVICE AND INSTALLATION WARNING: Battery acid can cause burns. When working on or around batteries, wear protective clothing and safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of batteries. CHARGING OF BATTERIES Charging batteries generates explosive gasses. DO NOT CHARGE BATTERIES WHEN OPEN FLAMES OR SPARKS ARE PRESENT.

  • Page 7: Pad Installation & Adjustment

    Pad Installation The red emergency disconnect button and power must be in the OFF postion before intallation and the pad driver assembly in the RAISED position. Remove center cup locking device by gripping on outer edges and turning clockwise. NOTE: Center cup cannot be pulled out; it must be unscrewed. After removing used pad, place new pad on pad driver assembly using outer flange of pad driver to center the pad.
  • Page 9 Parts Listing ITEM NO. PART NO. QTY. DESCRIPTION 200104 Handle Console 200 200154 Panel Cover Weldment 200250 Axle Weldment 200345 Caster, 3-1/2 Polyurethane 260224 Silicone Hose 18 C/L 260536 Base Plate Weldment 260537 Lumina Battery Spacer 260538 Front Handle Bracket Weldment 260541 Rear Handle Brkt 260544...
  • Page 11 Parts Listing ITEM NO. PART NO. QTY. DESCRIPTION 210142 Pedal Pad 260211 Hobby Spring 260511 Upper WMT 260513 Motor Lift Weldment 260519 Pivot Pin 260521 Guide Tube 260522 Spring Guide 260523 Spring Spacer 1.50 x .632 x .84 260524 Adjustment Link 260525 Adjustment Nut 260528...
  • Page 13 Parts Listing ITEM NO. PART NO. QTY. DESCRIPTION 230030 Clamp Band Assy For 20” HS 260514 Motor Plate Weldment 260559 Pad Shroud Lumina 260573 Motor Grill Assy 260595 Dust Skirt 260597 Key, 3/16 x 1.00 260598 Anti Slip, Burnisher Skirt 670075 Pad Driver 710857...
  • Page 14 Nut-Hex Jam 3/8-16 ST PL 711567 WSR-Flat .265 x .437 x .06 711720 .250 Dia Retaining Ring-E Type 715038 Decal, Pad Pressure 715634 Decal, Minuteman ID 760034 Knob, Adj (Set Screw) 762253 Cable, Assy Pressure 833102 Spring .62 x .75 x 1.75...
  • Page 15 Parts Listing ITEM NO. PART NO. QTY. DESCRIPTION 260542 Back Panel Weldment 710356 SCR-MC 1032X.62 Pan HD 711210 BLT-H 1/4-20 x 1.25 STPL 711425 Nut, Hex 1/4-20 Wiznut 740131 Circuit Breaker - 70 amp 740132 Insulator, Glastic 740147 CB 175 Gray Housing 740243 Contactor 36V 124-117111 742749...
  • Page 16 Parts Listing ITEM NO. PART NO. QTY. DESCRIPTION 260546 Dashboard, Burnisher 715297 Decal, Lumina 20 740135 Meter, 100A DC (Pressure) 740136 Meter, Volt 22V45V Battery 742202 Emergency Stop Switch 809754 Switch, Rocker 746100-1 Light Assembly Dust Skirt P/N 260595 Carbon Brush Replacements P/N 572003 (Qty 4) 210 amp Hour Battery (Optional) P/N 956210...

  • Page 17: Schematic Diagram

    SCHEMATIC DIAGRAM M26036QP 745073...
  • Page 18 SCHEMATIC DIAGRAM M26036QP, con’t.
  • Page 19 Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.

This manual is also suitable for:

Lumina 20 m26036ce
