Digicast Media Router S2 Receiver CMR-5995 (MR-S2-ASI)
Device Management via User Interfaces
4.3.9

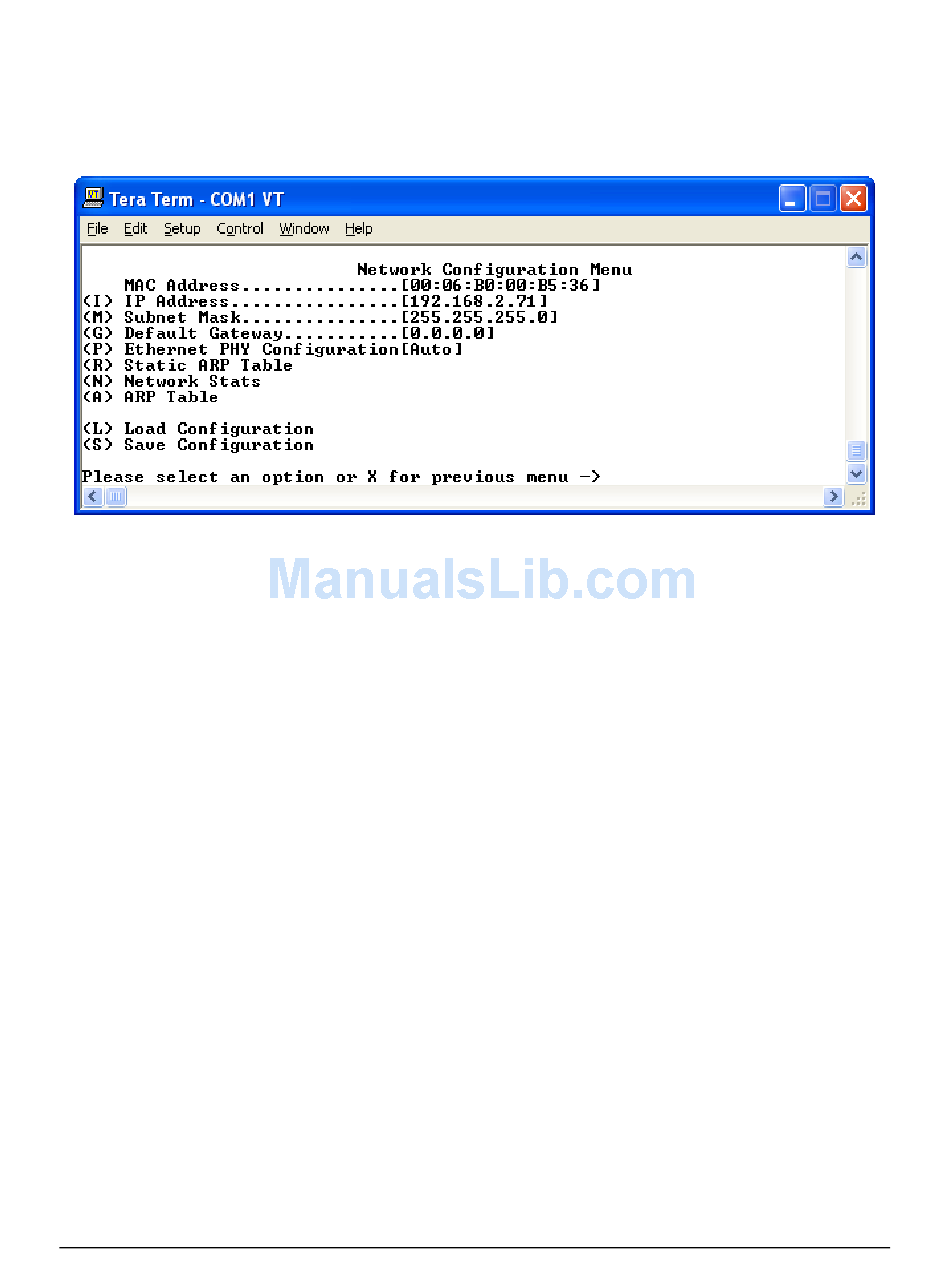

Network Configuration Menu

IP Address
The IP Address assigned to the CMR-5995's LAN interface. The IP Address is entered in dotted
decimal format.
Subnet Mask
The Subnet Mask assigned to the CMR-5995's LAN interface. The Subnet Mask is entered in
dotted decimal format and is typically 255.255.255.0 for a C-Class mask, 255.255.0.0 for a B-
Class mask or 255.0.0.0 for an A-Class mask.
Default Gateway
The Default Gateway assigned to the CMR-5995's LAN interface. The Default Gateway is
entered in dotted decimal format and must be within the subnet of the IP Address assigned to the
LAN interface. The Default Gateway is the address of a local router to which all non-local subnet
traffic will be directed.
