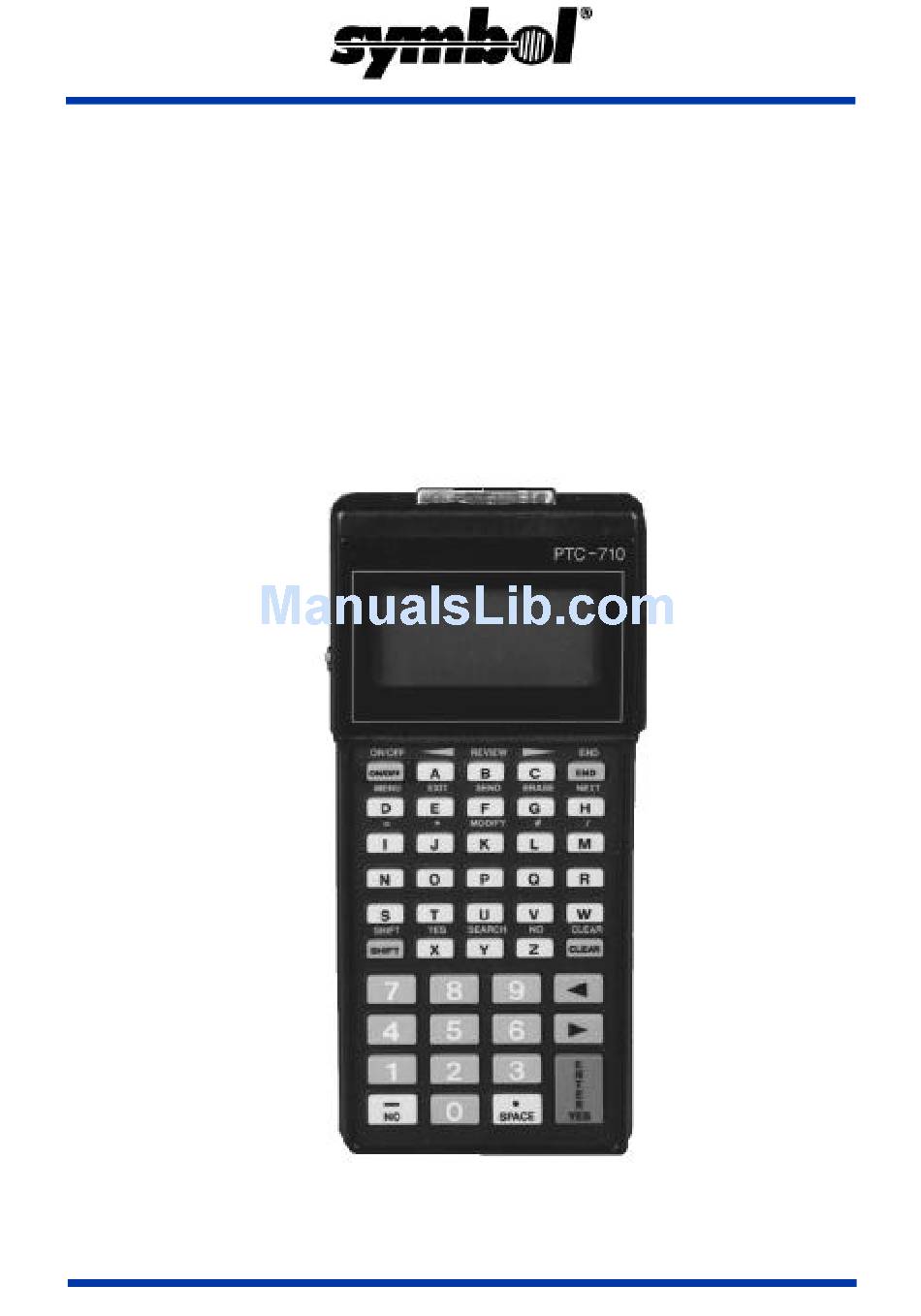

- Page 1 GUIDE TO THE PTC-710...
- Page 3 Guide to the PTC-710 Part Num ber: 13977-000-03-004 Re lease Date: Nov. 2000...
- Page 4 Symbol shall not be li a ble for tech ni cal or ed i to rial omis - sions or mis takes in this man ual nor shall it be li a ble for in ci - den tal or con se quen tial dam ages re sult ing from your use of the in for ma tion con tained in this man ual.
-
Page 5: Table Of Contents
Con tents Un packing the PTC-710... . . 1 Be fore You Use the PTC-710 ..2 Charge the Nickel-Cadmium Bat teries ..2 Turn on the Backup Bat tery . - Page 6 To Re move the Bat teries: ... . . 14 To Re place the Bat teries: ... . . 15 Charging Nickel-Cadmium Bat teries .
-
Page 7: Un Packing The Ptc-710
Un packing the PTC-710 When you re ceive the PTC-710, the pack age should con tain the fol low ing: • PTC-710 • bat tery charger (if the PTC-710 was or dered with nickel-cadmium bat ter ies) • bar-code reader (if or dered) The PTC-710 / 1... -
Page 8: Be Fore You Use The Ptc-710
Be fore You Use the PTC-710 Charge the Nickel-Cadmium Bat teries Fol low these steps only if your PTC-710 con tains nickel-cadmium bat ter ies. CAU TION! Do not con nect a bat tery charger to a PTC-710 that con tains al ka line bat ter ies. At tempting to charge al ka line bat ter ies can cause them to burst, which can re sult in equip ment dam age. -
Page 9: Turn On The Backup Bat Tery
Fig ure 1; see your Symbol sales rep re sen ta tive for or der - ing in for ma tion. 3. Al low the bat ter ies to charge for 12 to 14 hours. Af ter - ward, un plug the bat tery charger from the elec tri cal out - let, then dis con nect it from the PTC. - Page 10 BACKUP BAT TERY SWITCH PRESS DOWN Fig ure 3. Turn ing on the Backup Bat tery 4 / The PTC-710...
-
Page 11: Over View Of The Ptc-710

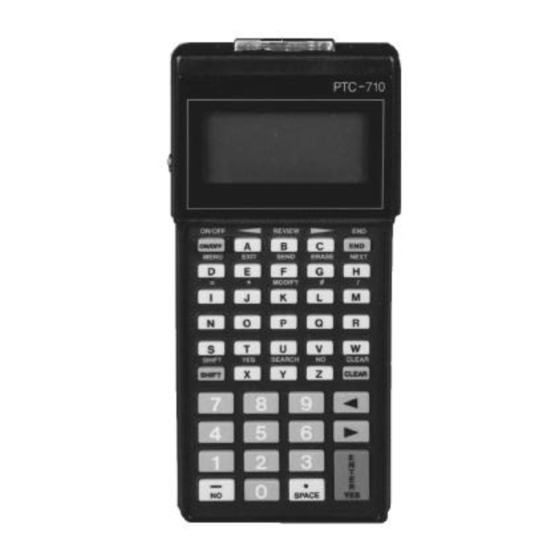

Over view of the PTC-710 The PTC-710 (see Fig ure 4) is a bat tery-powered, hand-held com puter that you use to col lect, store, and send data. PTC ac ces so ries are avail able for scan ning bar codes, print ing data, and send ing data to a main com puter. -
Page 12: Parts
Parts Fig ure shows the lo ca tions of the PTC-710’s main parts. Dis play The PTC-710’s four-line dis play shows prompts and mes - sages that tell you when to en ter data and what type of data to en ter. Each line of the dis play can show up to 16 let ters, num bers, or sym bols. - Page 13 25-PIN CONNECTOR RJ-11 SOCKET DISPLAY BAR-CODE KEYBOARD READER ACOUS TIC COUPLER HOLDER ELAS TIC STRAP BATTERIES BAR-CODE READER SOCKET Fig ure 5. Parts of the PTC-710 The PTC-710 / 7...
-
Page 14: Socket (Op Tional)
RJ-11 Socket (Op tional) The PTC-710’s RJ-11 socket lets you con nect the in ter nal mo dem di rectly to a tele phone wall jack with a stan dard tele - phone ca ble. A rub ber flap pro tects the RJ-11 socket when the socket is not in use. -
Page 15: Elas Tic Strap
cou pler may also au to mat i cally dial the tele phone num ber of the main com puter. Elas tic Strap The PTC’s elas tic strap se cures the PTC to the palm of your hand for data en try. It also se cures a tele phone re ceiver to the acous tic cou pler for data com mu ni ca tion. -
Page 16: Ap Pli Ca Tion Rom Car Tridge (Arc)
Ap pli ca tion ROM Car tridge (ARC) The ap pli ca tion ROM car tridge (ARC) con tains the PTC’s pro gram. The ARC de ter mines the PTC’s key func tions, the prompts and mes sages on the dis play, and the pro ce dures for send ing, re ceiv ing, and print ing data. -
Page 17: Fea Tures
Fea tures Power Backup Sys tem The power backup sys tem in the PTC-710 pro tects data, the clock, and pro grams for 800 hours af ter you re move the bat ter ies. Clock and Cal en dar A clock and cal en dar are built into the PTC-710. De pending on your pro gram, the PTC may use the clock and cal en dar to show the time and date on the dis play or to re cord the time and date of data en tries. -
Page 18: Han Dling And Main Taining The Ptc-710
Han dling and Main taining the PTC-710 Fol low these sug ges tions to keep your PTC in top work ing con di tion. Use and Stor age • Pro tect the PTC and its ac ces so ries from harsh, dirty en - vi ron ments and from ex ces sive heat, cold, and mois ture. -
Page 19: Cleaning
Cleaning • Clean the PTC by slightly moist en ing a clean, soft, lint-free cloth with a mild, non-abrasive plas tic cleaner and wip ing the out side sur faces. Do not soak the cloth, and do not spray or pour clean ing liq uids di rectly on the PTC. -
Page 20: Re Placing Al Ka Line Bat Teries
Re placing Al ka line Bat teries To Re move the Bat teries: 1. Be sure the PTC is off. 2. In sert a coin in the slot at the bot tom of the bat tery com - part ment cover (see Fig ure 6). 3. -
Page 21: To Re Place The Bat Teries
To Re place the Bat teries: 1. In sert the new bat ter ies ac cord ing to the di a gram in side the bat tery case (see Fig ure 7). 2. Line up the bat tery com part ment cover so that the re - cessed edge on the top of the cover is un der the flange of the PTC’s case. -
Page 22: Charging Nickel-Cadmium Bat Teries
Charging Nickel-Cadmium Bat teries CAU TION! Do not con nect a bat tery charger to a PTC-710 that con tains al ka line bat ter ies. At tempting to charge al ka line bat ter ies can cause them to burst, which can re sult in equip - ment dam age. -
Page 23: Con Necting And Re Moving Ac Ces Sories
Con necting and Re moving Ac ces sories PTC-710 ac ces so ries in clude print ers, bat tery charg ers, and ca bles. To Con nect an Ac ces sory: 1. Turn the PTC-710 off. Line up the pins on the end of the ac ces sory ca ble (or the 25-pin con nec tor on the ac ces sory) with the holes in the PTC-710’s 25-pin con nec tor. -
Page 24: To Re Move An Ac Ces Sory
4. If you are con nect ing a ca ble, fol low the pro ce dure in Step 2 to con nect the other end of the ca ble to the ac ces sory. To Re move an Ac ces sory: 1. -
Page 25: Scanning Bar-Code La Bels
Scanning Bar-Code La bels Fol low this pro ce dure if you are scan ning la bels with a pen - cil wand bar-code reader. If you are us ing an other type of reader, see the in struc tions shipped with the reader. 1. -
Page 26: Attaching The Acous Tic Cou Pler To A Tele Phone Re Ceiver
Attaching the Acous tic Cou pler to a Tele phone Re ceiver 1. Dis con nect one end of the elas tic strap from the PTC. Place the acous tic cou pler over the mouth piece of the tele - phone re ceiver (see Fig ure 11). -
Page 27: Con Necting The In Ter Nal Mo Dem To A Tele Phone Line
Con necting the In ter nal Mo dem to a Tele phone Line 1. Lift the rub ber flap from the PTC’s RJ-11 socket. 2. Plug a stan dard tele phone cord into the RJ-11 socket (see Fig ure 12). 3. -
Page 28: Trou Ble Shooting
Make sure the backup bat tery is switched to the ON po si - tion. If the PTC still will not turn on, con tact your Symbol ser vice rep re sen ta tive. If the Bar-Code Reader Does Not Read a La bel: •... -
Page 29: Reg U La Tions
Reg u la tions FCC (United States) This equip ment gen er ates, uses, and can ra di ate ra dio fre - quency en ergy and if not in stalled and used in ac cor dance with this op er a tor’s guide, may cause in ter fer ence to ra dio com mu ni ca tions. - Page 30 cases, the com pany’s in side wir ing as so ci ated with a sin gle line in di vid ual ser vice may be ex tended by means of a cer ti - fied con nec tor as sem bly (tele phone ex ten sion cord). The cus tomer should be aware that com pli ance with the above con di tions may not pre vent deg ra da tion of ser vice in some sit u a tions.
- Page 32 Sym bol Tech nol ogies, Inc. / One Sym bol Plaza Holtsville New York 11742-1300 Part No. 13977-000-03-004 Printed in U.S.A.
