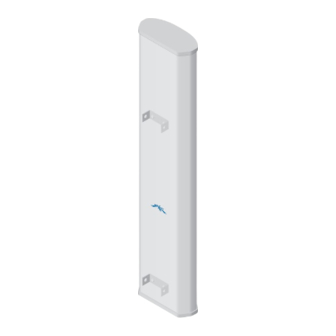

900 mhz 2x2 mimo basestation sector antenna
Hide thumbs Also See for airMAX AM-9M13:
Table of Contents

Advertisement

Quick Links

Download this manual
900 MHz 2x2 MIMO
BaseStation
Sector Antenna
Model: AM-9M13

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti airMAX AM-9M13

Summary of Contents for Ubiquiti airMAX AM-9M13

  • Page 1 900 MHz 2x2 MIMO BaseStation Sector Antenna Model: AM-9M13...

  • Page 3: Package Contents

    Introduction Introduction Thank you for purchasing the Ubiquiti Networks airMAX 900 MHz ™ 2x2 MIMO BaseStation Sector Antenna, model AM-9M13. This Quick Start Guide is designed to walk you through the installation of the antenna. Package Contents 900 MHz 2x2 MIMO...

  • Page 4: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks . For more details, visit www.ubnt.com/toughcable ™...
  • Page 5 Hardware Installation 2. Route an Ethernet cable through the hole on the Antenna Bottom Cover and connect it to the Ethernet Port. Antenna Bottom Cover...
  • Page 6 airMAX AM-9M13 Quick Start Guide ™ 3. Replace the Port Cover. 4. Attach the two Antenna RF Connectors to the connectors labeled Chain 0 and Chain 1 on the RocketM9. Place the RocketM9 in the bottom of the antenna. Antenna RF Connectors...
  • Page 7 Hardware Installation 5. To install the Antenna Bottom Cover: a. Insert the cover's tabs into the notches of the antenna bottom. b. Press the cover and snap it into place. c. Secure the cover to the bottom of the antenna using the M3x8 Tapping Screw.
  • Page 8 airMAX AM-9M13 Quick Start Guide ™ 7. Attach the two U Brackets to the two brackets on the antenna using the four M8x25 Bolts and four M8 Serrated Flange Nuts. M8x25 Bolt M8 Serrated Flange Nut U Bracket M8 Serrated Flange Nut M8x25 Bolt Note:...
  • Page 9 Hardware Installation 9. To attach the upper U Bracket to the pole: a. Insert the two M12x180 Bolts into the upper U Bracket. b. Secure each bolt using a M12 Serrated Flange Nut. c. Screw on two more M12 Serrated Flange Nuts. Slide a V Bracket on the M12x180 Bolts.
  • Page 10 airMAX AM-9M13 Quick Start Guide ™ 10. To attach the lower U Bracket to the pole: a. Insert the two M12x130 Bolts into the lower U Bracket. b. Slide the V Bracket on the M12x130 Bolts, so that the pole is between the U Bracket and V Bracket.
  • Page 11 Hardware Installation 11. To adjust the elevation angle of the antenna, loosen the four M12 Serrated Flange Nuts securing the V Brackets of the upper U Bracket. Slide the V Brackets to provide the desired tilt. Tighten all bolts and nuts to approximately 14 N-m (10 lb-ft) or less to avoid deforming the pole.
  • Page 12 airMAX AM-9M13 Quick Start Guide ™ 12. Connect the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. 13. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 14. Connect the Power Cord to the power port on the PoE Adapter. Connect the other end of the Power Cord to a power outlet.

  • Page 13: Specifications

    Specifications Specifications AM-9M13 Dimensions 129 x 29 x 13.4 cm Weight 12.5 kg Frequency 902 - 928 MHz Gain 13.2 - 13.8 dBi HPOL Beamwidth 109° (6 dB) VPOL Beamwidth 120° (6 dB) Elevation Beamwidth 15° Electrical Downtilt Max. VSWR 1.5:1 Wind Loading 160 mph...

  • Page 14: General Warranty

    Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).

  • Page 15: Rf Exposure Warning

    Compliance Disclaimer: UBIQUITI NETWORKS does not warrant that the operation of the products is error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products for buyer’s application and/or...
  • Page 16 airMAX AM-9M13 Quick Start Guide ™ Deutsch Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.

  • Page 17: Declaration Of Conformity

    Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p [Czech] íslu n mi ustanoveními sm rnice 1999/5/ES.
  • Page 18 UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 20: Ubiquiti Networks Support

    Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
