Ubiquiti airMAX Sector AM-9M13 Quick Start Manual

Ubiquiti airMAX Sector AM-9M13 Quick Start Manual

900 mhz 2x2 mimo basestation sector antenna
Hide thumbs Also See for airMAX Sector AM-9M13:
Table of Contents

Advertisement

Quick Links

Download this manual
900 MHz 2x2 MIMO
BaseStation
Sector Antenna
Model: AM-9M13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airMAX Sector AM-9M13 and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti airMAX Sector AM-9M13

Summary of Contents for Ubiquiti airMAX Sector AM-9M13

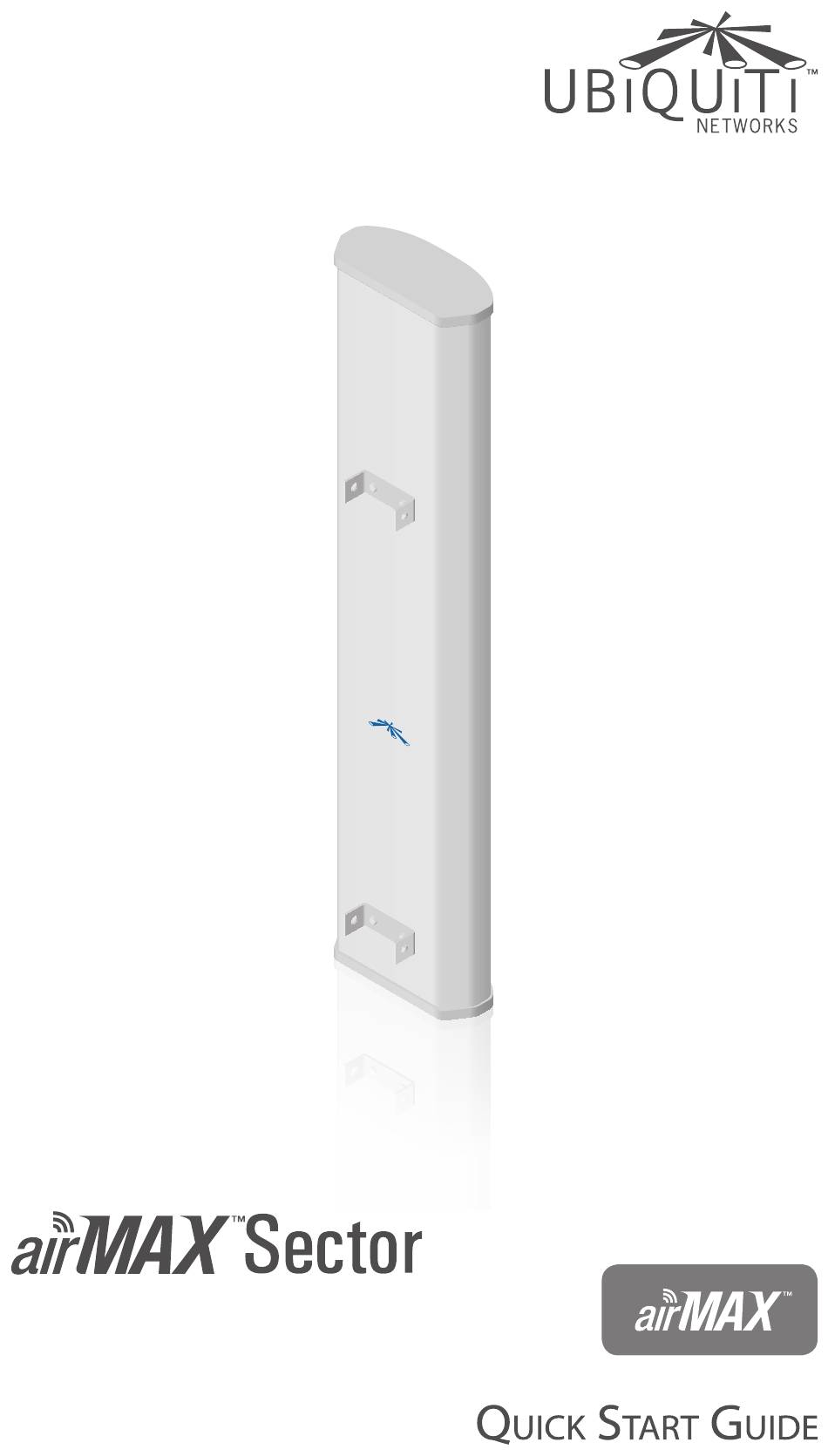

  • Page 1 900 MHz 2x2 MIMO BaseStation Sector Antenna Model: AM-9M13...

  • Page 2: Package Contents

    (Qty. 4) Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations.

  • Page 3: Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Installation 1. Remove the Port Cover by lifting the release latch on the bottom of the RocketM900 and sliding the Port Cover off.
  • Page 4 2. Route an Ethernet cable through the hole on the Antenna Bottom Cover and connect it to the Ethernet Port. Antenna Bottom Cover...
  • Page 5 3. Replace the Port Cover. 4. Attach the two Antenna RF Connectors to the connectors labeled Chain 0 and Chain 1 on the RocketM900. Place the RocketM900 in the bottom of the antenna. Antenna RF Connectors...
  • Page 6 5. To install the Antenna Bottom Cover: a. Insert the cover's tabs into the notches of the antenna bottom. b. Press the cover and snap it into place. c. Secure the cover to the bottom of the antenna using the M3x8 Tapping Screw. M3x8 Tapping Screw Antenna Bottom Cover 6.
  • Page 7 7. Attach the two U-Brackets to the two brackets on the antenna using the four M8x25 Bolts and four M8 Serrated Flange Nuts. M8x25 Bolt M8 Serrated Flange Nut U-Bracket M8 Serrated Flange Nut M8x25 Bolt Note: Do not tighten the bolts and nuts completely because you will need to insert bolts into the U-Brackets and then adjust the U-Brackets.
  • Page 8 9. To attach the upper U-Bracket to the pole: a. Insert the two M12x180 Bolts into the upper U-Bracket. b. Secure each bolt using a M12 Serrated Flange Nut. c. Screw on two more M12 Serrated Flange Nuts. Slide a V-Bracket on the M12x180 Bolts.
  • Page 9 10. To attach the lower U-Bracket to the pole: a. Insert the two M12x130 Bolts into the lower U-Bracket. b. Position the antenna so that the pole is between the M12x130 Bolts. Slide the V-Bracket on the M12x130 Bolts, so that the pole is between the U-Bracket and V-Bracket. c.
  • Page 10 11. To adjust the elevation angle of the antenna: a. Loosen the four M12 Serrated Flange Nuts securing the V-Brackets of the upper U-Bracket. b. Slide the V-Brackets to provide the desired tilt. c. Tighten all bolts and nuts to approximately 25 N-m (18 lb-ft) or less to avoid deforming the pole.

  • Page 11: Specifications

    Specifications AM-9M13 Dimensions 129 x 29 x 13.4 cm Weight 12.5 kg (Mount Included) Frequency 902 - 928 MHz Gain 13.2 - 13.8 dBi HPOL Beamwidth 109° (6 dB) VPOL Beamwidth 120° (6 dB) Elevation Beamwidth 15° Electrical Downtilt Max. VSWR 1.5:1 Wind Survivability 125 mph...

  • Page 12: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 13: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s). (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 14 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.

  • Page 15: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...
  • Page 16 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 17 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 18: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.

  • Page 19: Online Resources

    NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
  • Page 20 . u b n t . c o m © 2012-2013 Ubiquiti Networks, Inc. All rights reserved. J060613—720-00050-01...
